AiM Magnetic Pedal Position Sensor For MyChron The accelerator/brake pedal position sensors is a crucial support device for kart drivers. They provide a precise indication of timing and intensity of braking and/or acceleration. This permits the team to understand whether the driver has accelerated or braked at the right moment, with the correct pedal strength, across multiple laps and overlaid with other critical data. This is a very important factor in evaluating driver behavior and improving his/her performance. Data can be acquired by your MyChron connected to a MyChron Expansion and analyzed on your PC. Made from anodized aluminum, these sensors are very robust and water-resistant. Calibration is immediate: once installed, connect the sensors to your MyChron Expansion and get pedal positions (in high position and zero position). After that the sensor will start getting acceleration or braking data.

AiM Sports Position Sensors Add the appropriate AiM Sports Position Sensor to your AiM vehicle data acquisition set-up to retrieve exactly the information you need to maximize your performance and take your racing to the next level! All sensors have a 30cm (12 in.) cable length Note: sensors typically take 3 to 5 business days to ship.

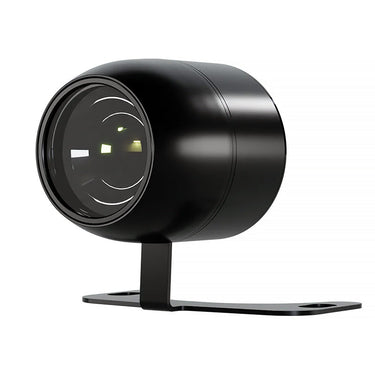

AiM Reverse/Side View Mirror Camera The AiM Reverse/Side View Mirror Camera delivers exceptional rear and side visibility on any sealed prototype racer or road car, featuring a wide 170° field of view and high-resolution imaging for seamless integration with AiM dash systems. Designed for Precision and Durability Key Features Manufacturer: AiM Part Number: XB1ZCAMHD00 Optical Sensor: 1/4 inch color CMOS TV System: NTSC Lens Field of View: 170° horizontal Resolution: 648×488 px Frame Rate: 60 fps Operating Temperature: –30 °C to 80 °C AiM Reverse/Side View Mirror Camera FAQs What dash systems are compatible? The camera outputs a standard NTSC signal that works with all modern AiM dash inputs. How wide is the field of view? With a 170° horizontal lens, you get expansive rear and side coverage on sealed-body race cars. Can it handle extreme temperatures? Yes—it operates reliably from –30 °C up to 80 °C for track or off-road use. Is installation plug-and-play? Simply mount the camera in your mirror housing and connect to your AiM dash via RCA video input. Upgrade your visibility on track with the AiM Reverse/Side View Mirror Camera—order now for clearer, safer corner exits.

AiM Kart Racing Steering Angle Sensor Kit Measure and log your kart driver's steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719-style connector, two toothed pulleys, one toothed belt, and one sensor mounting bracket. The steering shaft pulley is designed to fit a 7/8"-OD shaft. (Smaller shafts will need to add a bushing to fit the pulley.) This sensor is designed to measure up to five complete turns of the steering column. This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, MyChron5, or MyChron6 kart dash loggers. If your steering column is larger than 7/8" OD, consider using the AiM String Pot Steering Angle Sensor instead. The string pot sensor can work with any diameter steering shaft.

AiM Sports Pressure Sensor Add the appropriate AiM Sports Pressure Sensor to your AiM data acquisition set-up to retrieve exactly the information you need to maximize safety and performance, and take your racing to the next level! All sensors have a 40 cm (15.75 in) cable length. Note: sensors typically take 3 to 5 business days to ship.

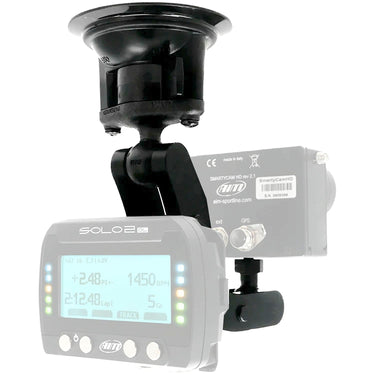

AiM Sports Track Day Suction Mount for SmartyCam3 & Solo2 DL The AiM Track Day Mount serves as an all-in-one solution for attaching both your AiM Solo2 DL and your AiM SmartyCam31 to your windshield. The Track Day Mount is compact, straightforward to use, and consolidates your equipment neatly, eliminating the need for two separate mounts and minimizing cable clutter. The powerful suction cup provides a secure hold on any smooth, clean surface. The robust suction cup ensures a secure grip on any smooth, clean surface. With a custom-designed contoured arm and ball mounts, the AiM SmartyCam3 faces forward, capturing the view through the windshield, while the AiM Solo2 DL faces the driver. This specialized suction-cup mount from AiM is an ideal choice for track days! Add the Trackday Kit Short Cable to your order using the dropdown above and connect your Solo2 DL and SmartyCam3 with the absolute minimum of cable clutter! 1 AiM Solo2 DL and SmartyCam3 (pictured) each sold separately.

Aim Sports SmartyCam3, SmartyCam HD Rev. 2.1 ECU Harness Seamless ECU Connectivity for AIM SmartyCam Series Elevate your video and data logging setup with the AIM SmartyCam3, SmartyCam HD Rev. 2.1 ECU Harness. This high-quality cable is engineered to power and connect your SmartyCam3 GP, SmartyCam3 Corsa, SmartyCam HD Rev. 2.1, and SmartyCam GP 2.2 directly to your vehicle's ECU via its CAN bus, ensuring a seamless integration and access to a rich data set. Optimal Standalone Configuration: Designed for setups without a data logger connection, this harness includes unterminated leads for 12V, ground, CAN+, and CAN-. Enhanced Performance with GPS09 Module: For the best configuration, consider adding the GPS09 module to your system. Key Features 4m Length: Ample length for versatile installation. Camera Compatibility: SmartyCam3 Corsa (all models) SmartyCam3 GP SmartyCam HD Rev. 2.1 SmartyCam HD Rev. 2.2 (GP) Upgrade your racing setup with this AiM SmartyCam3, SmartyCam HD Rev. 2.1 ECU Harness for unparalleled data and video performance.

AiM Sports Data Hub Extend the capabilities of your AiM MXL, MXL2, MXG, MXS dash logger or EVO4 data logger without occupying any more channels or running more cables to your dash. Connect up to four CAN peripherals to each Data Hub. You can even "stack" Data Hubs, connecting up to four more hubs to each hub, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. This data hub can also be used to link your SmartyCam to any AiM dash.

AiM Patch Cables With 3.5mm Microphone Input The original AiM SmartyCam, the SmartyCam HD Rev 2, and the SmartyCam HD GP Rev 2.1 all have an internal microphone to capture great racing sound, but it does limit your mic placement options. This specially-designed cable has a 3.5mm mono input jack to connect a second external microphone to your SmartyCam. The input from this jack is automatically mixed with the sound from the SmartyCam's internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD Rev 2 or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP Rev 2.1 or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details Manufacturer: AiM Sports Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4 meters (13.1 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712 connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures four meters (13..1 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the first SmartyCam HD, which has a 5-pin plug.

AiM Patch Cable With Microphone AiM CAN patch cable with integrated external microphone to connect any supported AiM data-logger to a SmartyCam HD Rev 2.1 / SmartyCam GP HD Rev 2.1. Not compatible with SmartyCam GP HD Rev 2.2. AiM CAN Patch Cable Details Manufacturer: AiM Sports Manufacturer part no.: V02566240 Length: 4 meters (13.1 feet) Connectors: 7-pin 712 male to 5-pin 712 male

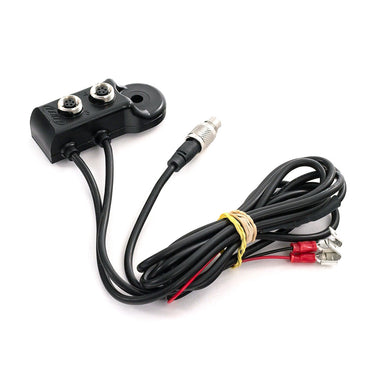

AiM Two-Port CAN Powered Data Hub for AiM MXS, MXM, MXG, MXL, EVO3, EVO4 Do you have an AiM data-logging dash like the MXS, MSM, MXG, Pista or MXL and want to run multiple devices like a SmartyCam HD and other powered items? This AIM Two-Port Powered CAN Data Hub is for you. If you use an ECU bridge or are powering your SmartyCam(s) from your five-pin cable using ECU power, you now can have a more stable power supply to run your cameras for an extended stint.This unit is also for use with the SmartyCam3 Sport to connect to an external 12V direct power source, removing the need for charging in between on-track sessions and race stints. Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. 15" cable. This allows you to add multiple SmartyCams to your AiM system. AiM 2-Port Powered CAN Data Hub for AiM Dash Details Manufacturer: AiM Sports Manufacturer Part Number: X08HB2GK0

AiM Sports SmartyCam GP Base Mount Kit The Best Mount for Your SmartyCam Bullet Camera This strong, adjustable mount holds your AiM Sports SmartyCam bullet camera base unit securely to your roll bar or harness bar. Two pivoting ball joints give you lots of adjustment while keeping it safe and secure during races and track days while the V-shaped base and two different size hose clamps fit a wide range of tubing sizes, from 1" to 2" OD. The rectangular base adapter provides a stable, bolt-on base for secure mounting of the SmartyCam unit. The wide range of adjustment lets you aim the viewing screen in just about any direction. Includes V-base with ball, double clamp arm, top ball with two-bolt diamond mounting flange, rectangular mount base adapter, two hose clamps, and rubber isolator strap.

AiM SmartyCam Bullet Cam Suction Mount This adjustable mount holds your AiM SmartyCam bullet camera securely to your windshield, allowing you to quickly mount your camera and keep it pointed in the right direction during races, track days, and other driving events. Two pivoting ball joints allow a wide range of adjustment, and the 3 1/2" diameter lever-actuated suction cup base works on any smooth, clean, flat surface. The machined aluminum collar accepts a lipstick-type camera measuring 24mm (0.94") OD. You can also eliminate the collar to mount a lightweight, compact camera with a standard 1/4-20 tripod mount (including SmartyCam and SmartyCam HD). What's In The Box? Suction cup base Lower ball clamp 60mm (2.4 inch) clamp arm Top ball with 1/4-20 mounting stud Machined collar Mounting screws

AiM Sports SmartyCam Bullet Camera Roll Bar Mount This strong, adjustable mount holds your AiM SmartyCam bullet camera securely to your roll bar or harness bar. Two pivoting ball joints give you lots of adjustment, keeping it pointed in the right direction during races and track days. The cast aluminum base and stainless steel clamp create a solid base for this heavy-duty mount. What's In The Box? Cast aluminum lower mount Jubilee clamp 60mm (2.4 inch) single clamp arm Ball head with 1/4-20 threaded stud Ridged lock washer

AiM Sports Solo2 Direct Power Cable Add this direct power cable to your vehicle and never worry about charging your Solo2 or Solo2 DL before or during an event again. Allows you to cleanly direct-wire your Solo2 or Solo2 DL to your car's 12 VDC power, eliminating dangling cigarette lighter charging wires and keeping your lap timer/data-logger always up and operational!
