Data System Components

AiM OBD Harness for MX-Series Strada Dashes AiM Sports specialized wiring harness compatible with the AiM MXS 1.2 Strada, MXP Strada, and MXG 1.2 Strada street dashboards. Designed to seamlessly connect via a 14-pin AMP connector, this harness ensures efficient power, ground, USB, and CAN expansions. Additionally, it facilitates a direct ECU link through the OBDII diagnostic port. Ideal for production vehicles equipped with an OBDII port, the harness supports both CAN and K-Line communication standards.

AiM Patch Cables With 3.5mm Microphone Input The original AiM SmartyCam, the SmartyCam HD Rev 2, and the SmartyCam HD GP Rev 2.1 all have an internal microphone to capture great racing sound, but it does limit your mic placement options. This specially-designed cable has a 3.5mm mono input jack to connect a second external microphone to your SmartyCam. The input from this jack is automatically mixed with the sound from the SmartyCam's internal microphone. SmartyCam Microphone Cable Fitment Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD Rev 2 or later (2015+) Exp port to AiM dash/logger or SMC Bridge SmartyCam HD GP Rev 2.1 or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge AiM SmartyCam CAN Cable with Microphone Jack, 4M Details Manufacturer: AiM Sports Manufacturer part number: V02566300 Alternate part number: MC-552 Dash, Solo DL, Solo2 DL End: 5 Pin Male 712 SmartyCam End: 7 Pin Male 712 Microphone jack: 3.5mm female mono Cable length: 4 meters (13.1 feet) Length from 7 pin 712 to "Y" Adapter: 50mm Length from Y adapter to 5 pin 712" 4 Meter Length from Y adapter to microphone 3.5mm female jack: 900mm The 7-pin 712 connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures four meters (13..1 feet) long. 3.5mm mono microphone jack is attached to the lead. This cable is not compatible with the first SmartyCam HD, which has a 5-pin plug.

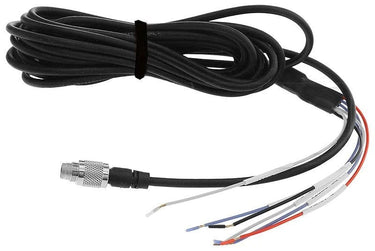

AiM Solo2 DL CAN/RS232 Wiring Harness If you routinely move your Solo2 DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo2 DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the CAN inputs. The AiM V02569050 harness connects your Solo2 DL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the Solo2 DL, and the other end has six non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit original AiM Solo DL. AiM Solo2 DL CAN/RS232 Wiring Harness Details Manufacturer: AiM Sports Manufacturer part number: V02589050 Fits Solo DL: No Fits Solo2 DL: Yes Pins on AiM Solo2 DL Side: 7-pin thread-on connector Vehicle Chassis Ends: six non-terminated wires Vehicle Chassis Ends Break Out: Red=12VDC, Black=Ground, Blue=ECU RS232 TX, Blue=ECU RS232 CAN-, Gray=ECU RS232 RX, Gray CAN+ AiM Solo 2 DL CAN/RS232 Wiring Harness Wiring Code Red: +9 to +15 VDC Black: Ground Grey: CAN+ Blue: CAN- Black: ECU RS232 RX Blue: ECU RS232 TX Both blue wires are the same color, but each wire has an identifier tag stating the connection type

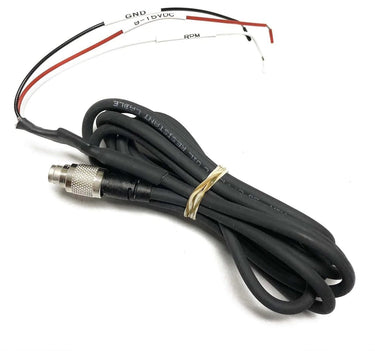

AiM Solo 2 DL Vehicle Power Wiring Harness Now you can power your AiM Solo2 DL for your entire endurance race without the need to charge the battery. The power cable that comes with the AiM Solo 2 in the package is set up for a cigarette lighter connection, but this is a hard wire connection for true race cars. This harness connects your AiM Solo2 DL to your vehicle's fuse box wiring. One end has a 5-pin 712 (screw-in) connector to fit the Solo, and the other has 2 non-terminated wires (Power and Ground). AiM Solo2 DL Vehicle Power Wiring Harness Details: Manufacturer: Aim Manufacturer part number: V02589020 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: No Pins on AiM Solo Side: 7 Pin Thread on connector Vehicle Chassis Ends: 2 Non terminated wires Vehicle Chassis Ends Break Out: Power, and Ground If you are putting a Solo2 into an older vehicle and need a direct to battery/fuse box power supply cable, use this harness for an easy install.

AiM CAN 7-Pin to OBDII Cable for Solo2 DL Connect your AiM Solo2 DL to the OBDII port in your car for easy data-logging of your OBDII vehicle data. One end has a male K-Line (OBDII) plug to fit your car's OBDII diagnostic port, and the other end has a 7-pin 712 (screw-in) connector for the Solo2 DL. (OBDII is also known as K-Line.) This is the same cable as the one supplied with an AiM Solo2 DL for OBDII connection. Does not fit the original Solo DL.  AiM CAN 7-Pin to OBD-II Cable for Solo2 DL Details Manufacturer: AiM Sports Manufacturer part number: V02589040 End 1: AiM 7-pin 712 (thread-on) connector End 2: OBDII (K-Line) connector Fits AiM Solo: No Fits AiM Solo DL: No Fits AiM Solo2: No Fits AiM Solo2 DL: Yes

AiM 22-Pin Dash Harness This 90° dash wiring harness plugs into the 22-pin connector on an AiM MXP, MXL2, MXm, MXG, or MXS dash, or the AiM EVO5 data-logger. Several of the advanced functions rely on this harness, which is not included with the standard kit for these units. AiM 22-Pin Auxiliary Harness Details Manufacturer: AiM Sports Manufacturer part number: V02573020 Alternate part number: MC-249 22-Pin Coupler Angle: 90° The AiM 22-Pin Auxiliary Harness Provides Additional Function Access This harness provides access to the following additional channels/functions: Analog sensor channels 5, 6, 7, 8  Digital wheel speed sensor inputs 2, 3, 4  Digital 12 VDC outputs 1, 2  RS232 ECU connection The factory harness that comes with the AiM MXG, MXS, MXL2 allows only four inputs. If you would like more inputs then this is your harnessFor use with AiM MXm, MXS, MXP, MXL2, and MXG dashes, and EVO5 logger. This cable is not compatible with older AiM MXL Pro, MXL Pro05, or AiM EVO series. AiM 22-Pin Auxiliary Harness Primary Uses The primary use of the AiM 22-Pin Auxiliary Harness is adding analog sensors. Your original harness will allow up to four analog channels (sensors). These could be Water Temperature, Oil Temperature, Oil Pressure and Brake Pressure. Using the AiM 22-Pin Auxiliary Harness, you can add four more analog channels (sensors) such as Steering Angle, Throttle Position, Gear Box Temperature, and Differential Temp. Another way we often see this cable used is Independent Shock Travel (at each corner) or Engine Oil Temperature both pre-cooler and post-cooler.

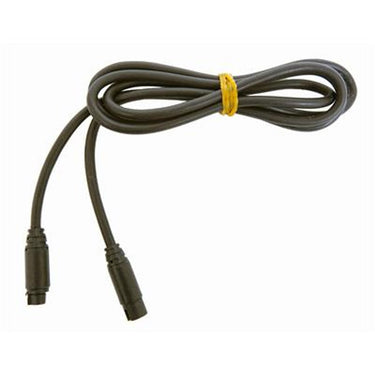

AiM Sports 719 Extension Cables Add the appropriate length AiM Sports 719 Extension Cable to your AiM data set-up to retrieve exactly the information you need, maximizing your data acquisition and taking your racing to the next level! Use these extension cables to connect additional sensors to the following AiM Sports dashes: MXG MXS MXL2 MXL Strada/Pista/Pro 05 Part numbers: V02PCB05B – cable length 0.5 meter (1.6 feet) V02PCB10B – cable length 1.0 meter (3.3 feet) V02PCB15B – cable length 1.5 meters (4.9 feet) V02PCB20B – cable length 2.0 meters (6.6 feet) V02PCB25B – cable length 2.5 meters (8.2 feet) V02PCB30B – cable length 3.0 meters (9.8 feet) Note: Cables typically take 3 to 5 business days to ship.

AiM Sports 5-pin 712 To 712 CAN Patch Cable These AiM CAN cables have a female 5-pin 712 (screw-in) connector on one end and a male 5-pin 712 connector on the other end. The 5-pin 712 connector is used on all AiM dash- and data-logger CAN inputs. These cables can also be used to extend the reach of AiM CAN data hubs and other accessories. AiM 5-Pin CAN Cable Part Numbers:  V02552700 – cable length 1 Meter (3.3 feet)  V02552720 – cable length 2 Meters (6.6 feet)  V02552730 – cable length 3 Meters (9.8 feet)  V02552740 – cable length 4 Meters (13.1 feet)

AiM Sports Data Hub Extend the capabilities of your AiM MXL, MXL2, MXG, MXS dash logger or EVO4 data logger without occupying any more channels or running more cables to your dash. Connect up to four CAN peripherals to each Data Hub. You can even "stack" Data Hubs, connecting up to four more hubs to each hub, multiplying the number of available connections! Accepts any AiM CAN accessory, including GPS, LCU-One Lambda Controller, Memory Key, or TC (Thermocouple) Hubs. Any channel can be selected for display on the dash. This data hub can also be used to link your SmartyCam to any AiM dash.

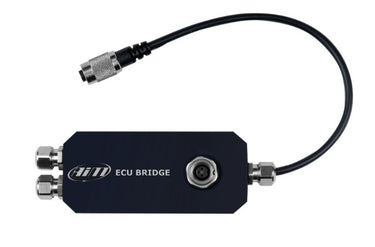

AiM ECU Bridge with RS232 / CAN Wiring Connecting to the ECU allows the AiM unit access to data collected by your ECU (RPM, road speed, coolant temperature, and throttle position are typical; many ECUs offer much more information). Works with the following AiM displays with the male 5-pin CAN connector: AiM MXG AiM MXS AiM MSM AiM MXL & MXL Pro G-Dash Display Formula Car Wheel Display SmartyCam requires the AiM 7-pin to 5-pin CAN Cable (Part No. MC-542, included with the SmartyCam). The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for setup. ECU Bridge is available with CAN/RS232 connection, for direct installation on aftermarket ECUs. ECU Bridge and RPM Bridge are needed whenever engine data are to be visualized on a display or a SmartyCam video, if no recording is required. ECU Bridge is used when the ECU transmits data via OBDII, CAN or RS232. AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. ECU Bridge has to be properly configured with Race Studio 2 software to communicate with the different visors/cameras on one side and ECUs on the other side. Wiring Protocol and Details CAN protocol for external modules (visors or SmartyCam HD) USB port for PC communication External power 8/18 V

AiM Sports GPS09 Module The GPS09 module from AiM further expands the track mapping abilities of AiM data loggers and dash loggers. In addition, the GPS09 allows lap timing (even split times) without the use of trackside beacons, storing data for up to 50 tracks with up to 5 splits per track. The GPS09 can also calculate and log speed, lateral and longitudinal g-forces, and of course vehicle position.The GPS09 is the latest version, boasting a quicker 25 Hz sampling rate (up from 10 Hz) and positional accuracy to less than one foot (down from 2 meters). It also takes full advantage of Race Studio 3's integration of GPS, video, and data. Simple to install: Just connect the CAN cable to your dash and mount the magnetic-backed GPS antenna to your vehicle roof. The GPS unit will even automatically configure itself during start-up! The GPS09 connects via a 5-pin 712 screw-in connector and is compatible with current-generation AiM MXL2/ MXG/MXP/MXS auto dashes, EVO4S/EVO5 data loggers, and SmartyCam HD GP 2.2. Choose a cable length to suit your installation: 1.3m (4 ft) is appropriate for most formula cars and bikes. 4m (13 ft) is long enough for sedans. SmartyCam Note: Only the SmartyCam HD GP 2.2 takes this version. SmartyCam HD, SmartyCam HD GP, and SmartyCam HD 2.1 all require the AiM GPS09B which has a 4-pin connector. MXL / EVO3 / MyChron4 Note: This version is only compatible with the latest-generation loggers; it is not backwards-compatible with the first-gen MXL, the EVO3, or the MyChron4. Solo2/Solo2 DL, MXm, and MyChron6 Note: these do not use an external GPS module; all GPS functions are internal. Compatible With The Following: GPS09 (five pin): MXL/MXL2, MXG, MXP, MXS, and MXm dashes, SmartyCam GPHD Rev 2.2, EVO3, EVO4S, and EVO5 GPS09B (four pin): SmartyCam GPHD Rev 2.1, SmartyCam GP Rev 2.1 Available in either Standard or Roof-Mount versions.

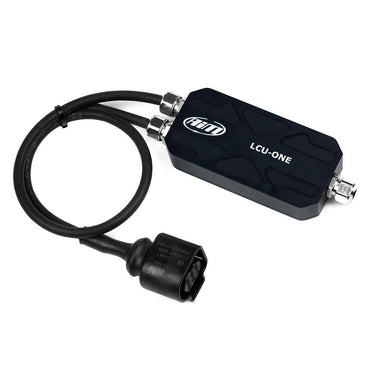

AiM Sports LCU-One Lambda Controller P/N X08LCU1SAC090 The new AiM LCU-One Lambda Controller (SKU: X08LCU1SAC090) is the direct replacement for the now-retired X08LCU05CAN unit. This latest generation controller delivers high-precision wideband air/fuel ratio readings via CAN protocol and integrates seamlessly into your AiM data system—whether you're running an EVO5, MXG, or Solo 2 DL. If you're tuning for performance, reliability, or just data sanity, this is the sensor to trust. Next-Gen Lambda Monitoring for AiM Systems Features: Direct Replacement: Replaces SKU X08LCU05CAN with identical performance and plug-and-play compatibility. CAN Protocol Data: Streams precise air/fuel ratio to your AiM logger or dash via CAN for real-time engine tuning feedback. Wide Compatibility: Works with a wide range of AiM systems (listed below) with no extra adapters or changes required. Race-Proven Reliability: Built to endure the vibrations, temperatures, and rigors of motorsports environments. Compatible With: M5s, M6 EVO4S, EVO5 SOLO2DL MXS 1.2 / 1.3 (including Strada) MXP 1.2 / 1.3 (including Strada) MXG 1.2 / 1.3 (including Strada) MXT, MXT Strada MXM M5660S XLog ECU Log AiM LCU-One Lambda Controller FAQs: Is this compatible with my older LCU-One setup? Yes, this is a drop-in replacement for the X08LCU05CAN and functions identically. Do I need to update my firmware? Most modern AiM systems will auto-detect. However, a firmware update may be required for older units. Always check your device’s latest firmware compatibility list. Can this be used with aftermarket ECUs? Yes, as long as the ECU supports AiM CAN integration, this unit can send wideband data seamlessly. Is the sensor included? This listing is for the Lambda controller. Some kits may include the Bosch LSU 4.9 sensor, but always confirm package contents before ordering. Replace your outdated unit with the latest LCU-One Lambda Controller and keep your data dialed in with uncompromising precision.

AiM 23-Pin MXS/MXP/MXG Strada Harness This add-on harness plugs into the 23 pin AMP connector on the AiM MXS 1.2 Strada, MXP Strada, and MXG 1.2 Strada street dashes to unlock certain dash features. If you don't want to build your own harness, this harness is required in order to use the following features: Analog input channels (8) Digital wheel speed channel (1) RPM input Digital output CAN2 stream input Manufacturer: AiM Manufacturer part number: V02573220 For use with AiM MXS 1.2 Strada (Standard and "Street Icons"), MXP Strada, and MXG 1.2 Strada only. Not for original MXS Strada, MXS/MXP/MXG data logging dashes, or any other dash or logger.

AiM MyChron Expansion Channel Multiplier The AiM MyChron Expansion is an add-on for the MyChron or MyChron6 Kart Racing Data Logging Dash. It plugs into the CAN expansion port on your MyChron dash to expand its capabilities. The AiM Expansion has a single CAN expansion port plus four additional sensor inputs. All four inputs can accept common karting sensors (brake/throttle pedal position, temperature, steering angle, etc.). One of the four inputs can accept a speed sensor instead. Requires an external 12-volt power source such as your kart's battery. The MyChron Expansion channel multiplier improves MyChron6 and MyChron6 2T (and also MyChron5 and MyChron5 2T) performance, thanks to four additional channels and a further CAN bus connector. Through this last connector, the systems can be connected to LCU-One Lambda controller and SmartyCam HD (and to GPS and Data key for MyChron4 systems). Thanks to its specific wiring, MyChron Expansion powers the systems and their peripherals with an external battery, avoiding internal battery consumption. All channels are easily configurable as analog through the system menu to sample data coming from: Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens) Wheel speed sensor: the first input on the left can be configured also as digital input No contact brake pedal position sensor No contact throttle pedal position sensor Brake pressure sensor Water temperature or cylinder head temperature (PT100 thermo-resistor only) Steering angle potentiometer (to highlight over/under steering situations) Brake pedal potentiometer Throttle pedal potentiometer MyChron Expansion is a complete, value-for-money instrument for professional kart analysis. Call us with any questions you have about the MyChron Expansion from AiM Sports! Note: MyChron karting data logger/lap timer (pictured) is sold separately.

AiM Patch Cable With Microphone AiM CAN patch cable with integrated external microphone to connect any supported AiM data-logger to a SmartyCam HD Rev 2.1 / SmartyCam GP HD Rev 2.1. Not compatible with SmartyCam GP HD Rev 2.2. AiM CAN Patch Cable Details Manufacturer: AiM Sports Manufacturer part no.: V02566240 Length: 4 meters (13.1 feet) Connectors: 7-pin 712 male to 5-pin 712 male

AiM Sports 712 to 719 Four-Pin Patch Cables Add the appropriate AiM Sports 712 to 719 4-Pin Extension Cables to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! The AiM Sports 712 to 719 4-Pin Patch Cables have a female 4-pin 719 (plastic) connector at one end and a male 4-pin 712 (threaded) connector at the other to connect most analog automotive sensors to the MyChron3, XG-Log Auto Dash, AiM EVO4, or AiM EVO4s Data Logger. Available in 0.5 thru 4 Meter lengths. The AiM 712 to 719 Cable is Compatible With: MyChron Expansion AiM Data Hub Channel Expansion EVO4 Logger EVO4s Logger PART NUMBERS: V02PCB05BTXG – cable length: 0.5 meter (1.6 ft) V02PCB10BTXG – cable length: 1 meter (3.3 ft) V02PCB15BTXG – cable length: 1.5 meter (4.9 ft) V02PCB20BTXG – cable length: 2 meters (6.6 ft) V02PCB25BTXG – cable length: 2.5 meters (8.2 ft) V02PCB30BTXG – cable length: 3 meters (9.8 ft) V02PCB35BTXG – cable length: 3.5 meters (11.5 ft) V02PCB40BTXG – cable length: 4 meters (13.1 ft) V02PCB50BTXG – cable length: 5 meters (16.4 ft) Note: Cables typically take 3 to 5 business days to ship.
