Thumbnail for Technical dimension diagram of a Pagid 8062 brake pad showing width as 189,6 mm, height as 87 mm, and pad depth as 57,5 mm on a white background.

Thumbnail for Technical specification diagram for a Pagid 8062 brake pad, showing dimensions including thickness 16.8 mm, pad depth 57.

Technical dimension diagram of a Pagid 8062 brake pad showing width as 189,6 mm, height as 87 mm, and pad depth as 57,5 mm on a white background.

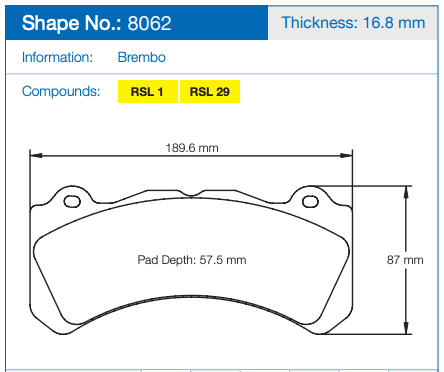

Technical specification diagram for a Pagid 8062 brake pad, showing dimensions including thickness 16.8 mm, pad depth 57.

Pagid 8062 Racing Brake Pads

$1,140.00

Compound

Pagid Racing Brake Pad 8062

Technical specification diagram for a Pagid 8062 brake pad, showing dimensions including thickness 16.8 mm, pad depth 57.

Pagid Racing shape 8062 brake pads are engineered for demanding motorsport and high-performance braking applications. Racing brake pad shape for Brembo six-piston calipers with a 57.5 mm radial swept depth.

Pagid Racing 8062 Brake Pad Fitment Guide

Make / Caliper	Type / Application	Remarks	Shape No.
Brembo	XA5.71.L2 6-piston D57.5 caliper	16.8 mm	8062
Brembo	OE M6 / 6-piston applications using 57.5 mm swept depth	16.8 mm	8062

Pagid Racing brake pads are designed to deliver consistent stopping power, modulation, fade resistance, and dependable pedal feel under severe track conditions. Select the compound that best matches your vehicle, brake system, and intended use.

Pagid Racing compounds are intended for steel/cast-iron rotors unless the selected compound is specifically engineered for ceramic composite brake discs, such as RSC compounds.

Pagid Racing 8062 RSL 29 Compound

Pagid_RSL29_Performance_Chart_Image

RSL 29 is a proven endurance and track-day compound with a medium friction level, excellent modulation, easy bedding, and long pad and disc life.

Pagid Racing 8062 RSL 1 Compound

Pagid_RSL1E_Performance_Chart_Image

RSL 1 is a high-friction endurance compound with strong heat resistance, consistent friction across a wide temperature range, good modulation, and low pad and disc wear.

Important Fitment Information

Brake pad shape and caliper configuration must be verified before ordering. Vehicle applications can vary by model year, trim, brake package, rotor type, and caliper option. Compare the existing pad shape and dimensions with the listed specifications when necessary.

Pagid 8062 Brake Pad FAQ

What is the PAGID Racing shape number for this listing?
The brake pad shape is 8062.

Are all compounds suitable for street use?
No. Many PAGID Racing compounds are developed specifically for competition and track use. Choose a compound appropriate for your application.

Can these pads be used with ceramic brake rotors?
Only compounds specifically designed for ceramic composite discs, such as compatible RSC compounds, should be used on ceramic brake systems.

How do I confirm fitment?
Verify the caliper, pad shape, pad dimensions, axle position, and brake package before ordering.
