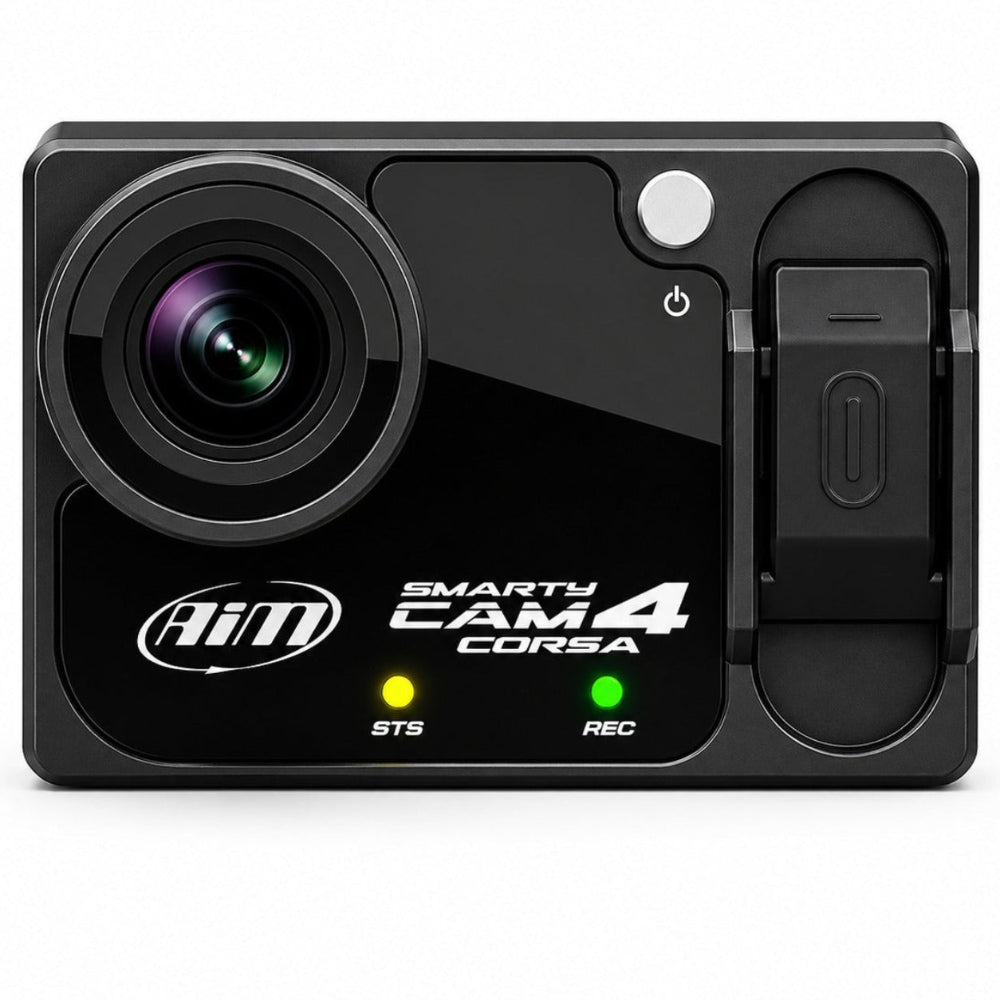

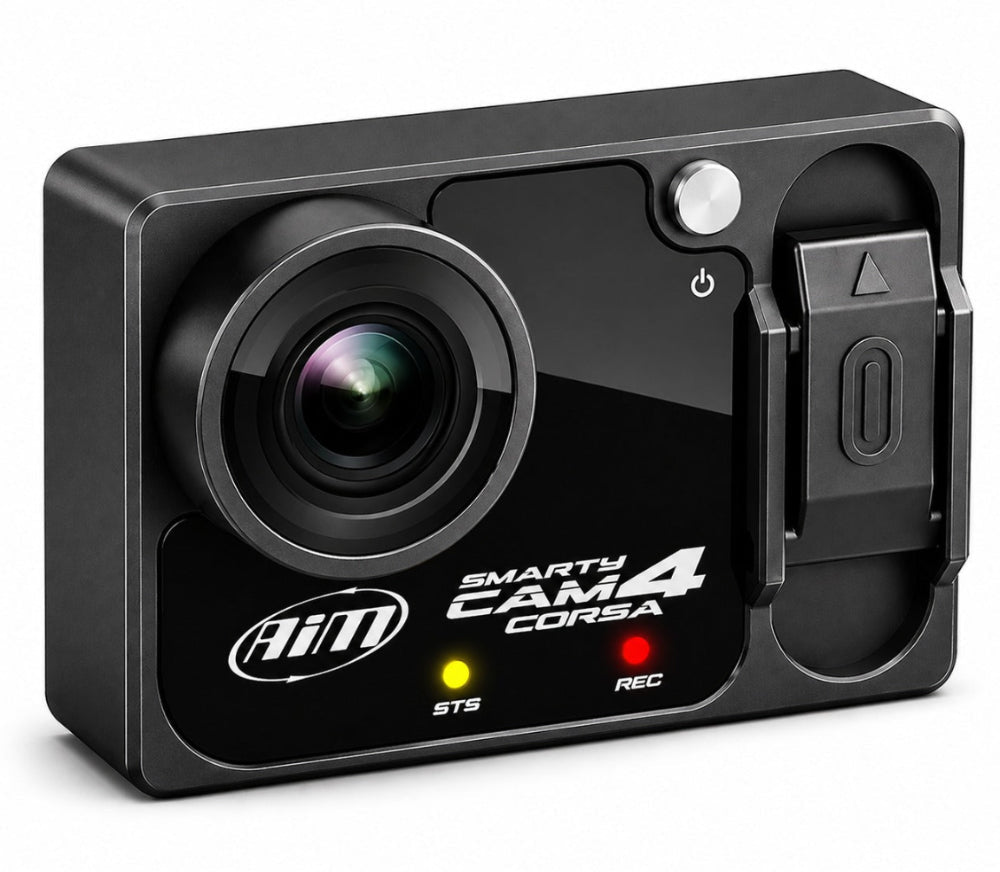

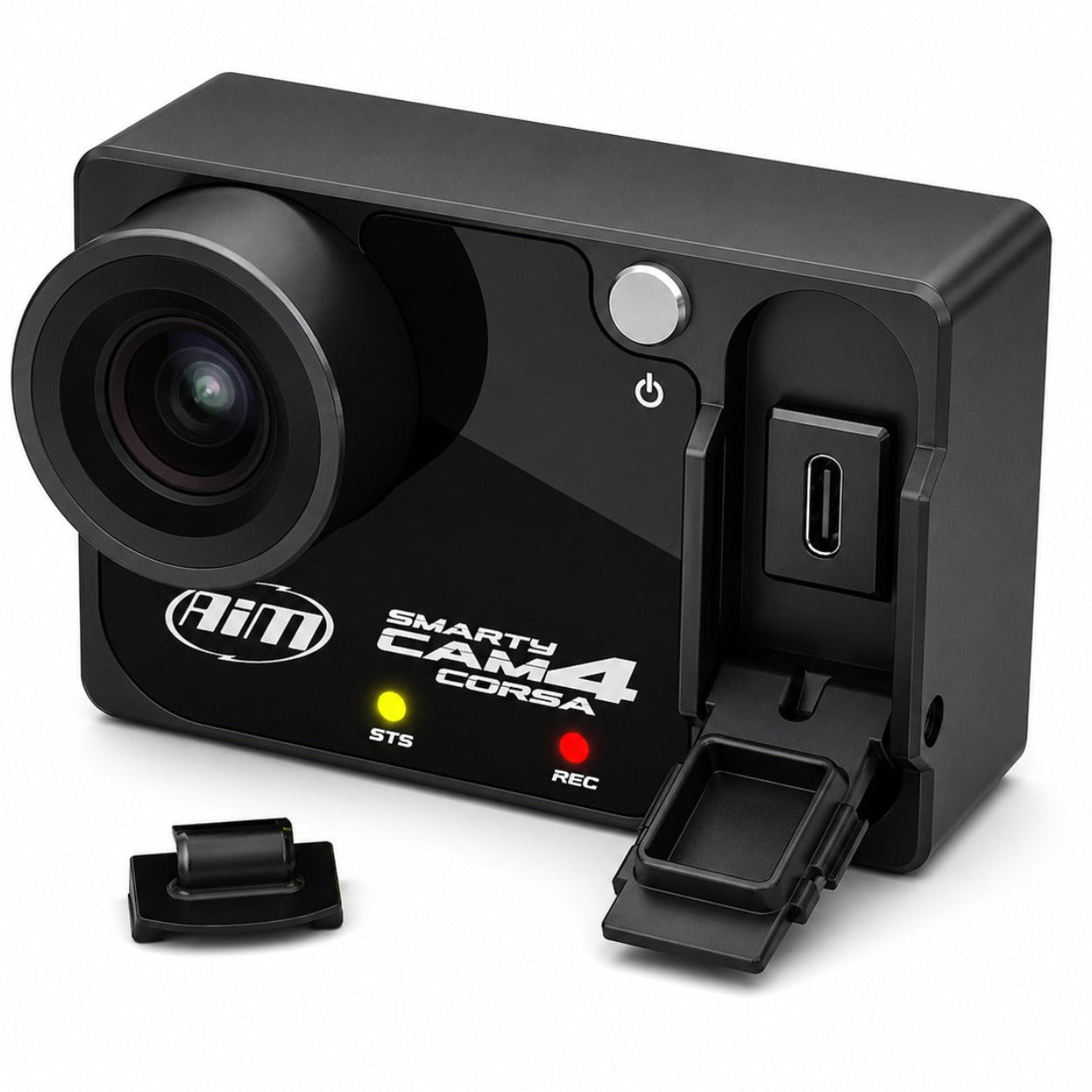

AiM Sports SmartyCam4 Corsa Data Logging Motorsport Camera
The AiM Sports SmartyCam4 Corsa is built for one purpose—making you faster. This isn’t just another action camera; it’s a fully integrated motorsport data and video system designed to capture every detail of your driving and turn it into actionable performance insight. With major upgrades over the previous generation, including improved image quality, faster connectivity, and smarter data integration, the SmartyCam4 Corsa is one of the most advanced tools you can add to your car.
Next Generation Motorsport Video Meets Real Data
At its core, the SmartyCam4 Corsa combines high-quality video recording with real-time telemetry overlays. Using a Sony 12MP CMOS sensor and advanced LSI image stabilization, it delivers sharp, stable footage even in high-vibration racing environments. Every lap is captured with clarity—and more importantly, with context.
Key Features and Benefits
True motorsport data overlay allows you to display critical performance metrics directly on your video, including speed, RPM, gear position, lap times, throttle input, and more.
Advanced image quality powered by a Sony CMOS sensor delivers improved detail, color accuracy, and low-light performance for consistent visibility in all conditions.
Integrated LSI stabilization reduces vibration, distortion, and horizon movement for smoother, more professional footage.
Automatic recording control uses a built-in 3-axis accelerometer to start and stop recording without driver input.
USB-C connectivity enables faster data transfer, simplified setup, and expanded external storage options.
Wireless control and setup via Wi-Fi and Bluetooth allow quick configuration using the Race Studio 3 ecosystem and companion app.
Automatic track recognition identifies circuits and organizes your sessions, with the ability to create custom tracks when needed.
Lap-by-lap video segmentation makes it easy to review, compare, and analyze performance between sessions or drivers.
Compact, durable anodized aluminum housing is built to withstand harsh racing environments with IP65 protection.
Technical Specifications
Video format: H.264 at 1920 x 1080 resolution, 30 or 60 fps
Lens: 85° low-distortion field of view
Sensor: Sony 12MP CMOS
Stabilization: LSI image stabilizer
Power: External 9–15V required (internal battery for setup only)
Storage: USB-C and SD card support up to 2TB each
Connectivity: USB, Wi-Fi, Bluetooth
Streaming: USB or Wi-Fi
Connectors: 7-pin Binder 712, 5-pin Binder 712, USB-C
Operating temperature: -10°C to +50°C
Auto power and recording: Yes
Software: Race Studio 3 compatible
Construction: Anodized aluminum body
Dimensions: 94 x 63 x 28.7 mm
Weight: 260g
Water resistance: IP65 rated
AiM SmartyCam4 Corsa FAQs
Does the SmartyCam4 Corsa require external power?
Yes. The internal battery is only used for initial setup. The camera must be powered externally with a 9–15V source during operation.
What data can be displayed on the video overlay?
You can display speed, RPM, gear position, lap times, track maps, throttle input, temperatures, pressures, acceleration, and warning alerts such as low oil pressure or battery voltage.
Can the SmartyCam4 Corsa connect to my ECU or data logger?
Yes. It integrates with AiM loggers and ECU data streams to pull advanced telemetry including engine and vehicle parameters for complete analysis.
How does track recognition work?
The camera uses GPS to automatically identify tracks. If a track is not preloaded, you can create it using AiM Race Studio 3 software.
Is this better than a GoPro for track use?
For motorsports, absolutely. Unlike general action cameras, the SmartyCam4 Corsa is designed specifically for racing with integrated telemetry, automatic recording, and optimized file sizes for quick analysis.
If you're serious about improving lap times, consistency, and vehicle performance, the AiM Sports SmartyCam4 Corsa delivers the data and video clarity you need to make smarter decisions on and off the track.
