Pagid

RSC 1:  **For Ceramic Rotor ONLY**  RSC1 The first series in the RSC compound.  A good street/track compromise.  Sprint race and track day compound for all known types of Ceramic brake discs. This friction material features an ideal combination of cold friction, fade resistance and low thermal oxidation of the disc surface fibers.  Pagid's RSC (RSC-1) racing compound was specifically developed for use for the newest ceramic disc applications from Porsche. Designed for track days and shorter sprint-type races, the RSC-1 offers excellent cold friction, fade resistance and low thermal oxidation of the ceramic disc fibers.

Pagid Racing Brake Pads No. 1204 RSL 29: The Pagid RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RSL29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RSC 1: A race and track day compound for all known types of ceramic brake discs, RSC 1 is a low metallic resin bonded material containing steel and aramid fibers. This material features good all-round characteristics and is suitable for all types of usage. RSC 2: A special race compound for ceramic discs with a high content of fibers in the friction surface for sprint and endurance circuit racing, RSC 2 is a low metallic resin bonded material containing steel and aramid fibers. This material is specifically developed for above mentioned applications.

Fits These Vehicles Make Model Build (Year) Front Rear Chevrolet Camaro Z28 [ceramic brakes] 15 - X   Chevrolet Corvette Brembo 6 piston non ceramic 09 - X   Chevrolet Corvette Brembo [ceramic brakes] 09 - X   Chevrolet Corvette C7 Z06 [ceramic brakes] 15 - X   Ferrari 430 Challenge [ceramic brakes]   X   Ferrari 430 Scuderia [ceramic brakes] 07 - 10 X   Ferrari 458 Italia [ceramic brakes] 10 - 15 X   Ferrari 599 GTB Fiorano 06 - 12 X   Ferrari Several ceramic brakes CCM   X   McLaren 570 S [ceramic brakes] 15 - X   McLaren 650 S [ceramic brakes] 14 - X   McLaren 675 LT [ceramic brakes] 15 - X   McLaren MP4-12C [ceramic brakes] 11 - 14 X   RSL 19: The PAGID RSL19 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RSL19 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RSC 1: The Pagid RSC1 is a good street/track compromise for enthusiasts with Carbon-Ceramic Brakes. Used for sprint racing and track days compound with all known types of ceramic brake discs. An ideal combination of cold friction, fade resistance and low thermal oxidation of the disc surface. RSC 2: The Pagid RSC2 is a special race compound for ceramic discs with a high content of fibers in the friction surface. A medium-high friction pad with excellent fade resistance and long pad life, developed for sprint and endurance circuit racing. RSC 3: The Pagid RSC3 is a high-friction compound developed for ceramic discs. With a high initial bite, strong fade resistance, and slightly shorter pad life than the RSC2, this is Pagid's more aggressive ceramic-rotor racing pad.

RSL 1:  PAGID RSL1 racing compounds are complex formulations with very high content of ceramic materials. The difference to competitors metallic compounds is the superior thermal insulation and the higher heat resistance of ceramic compared to iron. Ceramic has a very low heat conductivity, so less brake disc temperature goes through the pad to the caliper. Pagid have measured up to 140 degrees farenheit difference in temperature compared to competitor pads. RST 1: PAGID RST1 High average friction, aggressive in stop behavior with instant pedal response and release, consistently firm pedal at all temperatures, fade resistant at highest disc temperatures.  High friction compound with very good initial bite and a progressive torque curve. Very fade resistant.  Suitable for applications with high down-force and / or very high grip.  RST 3: RST 3 is a medium-high friction metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity. Popular applications of the RST 3 compound include rally tarmac and gravel, GT cars, Touring cars and prototype circuit racing, formula cars and club racing. Wide range of applications due to it‘s combination of bite, friction and controllability.   Pagid RSL brake pads were developed to comply with the latest requirements in endurance racing and to accord to ecological standards in the automotive industry. They feature excellent pad wear under endurance conditions, excellent disc life, are less aggressive than RST pads giving best possible brake balance, modulation and consistency of friction under endurance conditions.

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

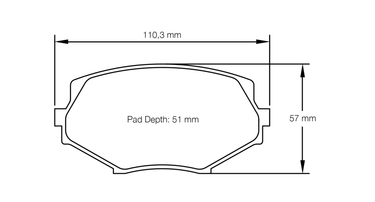

Pagid Racing Brake Pads No. 8127     Fitment: Miata 1.8 NB (spec Miata) - Front   Pad thickness: 14mm RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 3: RST 3 is a medium-high friction metal-ceramic compound containing steel fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity. RST 3 compound applications include rally tarmac and gravel, GT cars, Touring cars and prototype circuit racing, formula cars and club racing. RST Compound fits a wide range of applications due to it‘s combination of bite, friction and controllability.

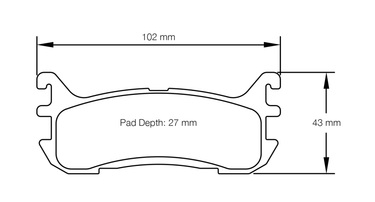

Fitment: Miata 1.8 NB (spec Miata) - Rear Pad thickness: 12.5mm RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 4: RST 4 is a semi metallic resin bonded material containing steel fibers. This material has a medium friction level and high temperature resistance. Applications for the RST 4 compound include formula cars and open wheel racing. Rear axle material for Rally (tarmac and gravel) and for all front engine cars. Also used in NASCAR on long ovals.

Vehicles Make Model Build (Year) Front Rear McLaren 570 S [ceramic brakes] 15 - X McLaren 650 S [ceramic brakes] 14 - X McLaren 675 LT [ceramic brakes] 15 - X McLaren MP4-12C [ceramic brakes] 11 - 14 X Amazing track day and club sport material for a wide application range of performance cars. PAGID Racing RSC compounds are developed to comply with the latest requirements in ceramic composite brake disc technology and meet or surpass all current ecological standards of the automotive industry. For your McLaren with Ceramic Disc Brakes, the Pagid 8187 comes in the following compounds: RSC 1: The Pagid RSC1 is a good street/track compromise for enthusiasts with Carbon-Ceramic Brakes. Used for sprint racing and track days compound with all known types of ceramic brake discs. An ideal combination of cold friction, fade resistance and low thermal oxidation of the disc surface. RSC 2:The Pagid RSC2 is a special race compound for ceramic discs with a high content of fibers in the friction surface. A medium-high friction pad with excellent fade resistance and long pad life, developed for sprint and endurance circuit racing. RSC 3:The Pagid RSC3 is a high-friction compound developed for ceramic discs. With a high initial bite, strong fade resistance, and slightly shorter pad life than the RSC2, this is Pagid's more aggressive ceramic-rotor racing pad.

RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport.  The racing compound combines the outstanding wear rate of the RS19 with a slightly higher coefficient of friction and initial bite. Based on the RS14, A slight reduction of the friction value improves the modulation (controllability). Nevertheless, the friction value is enough for cars without power-assisted brake system and ensures comfortable low effort on the brake pedal. Constant temperatures up to 600°C (1,100°F) are possible. This combination of friction value, fading stability and low wear rates on pads and discs (rotors) is unmatched. Due to its excellent release characteristics and controllability PAGID endurance materials are also often used for sprint races. Pagid RS29 with a very similar friction coefficient to RS19 with improvements in initial bite offering quicker response and slightly more temperature stable at the upper levels of the temperature range. Developments in raw material selection and compounding have resulted in improvements also in pedal feel and feedback, helping with modulation particularly on lighter applications. This material provides very good levels of performance and response at all temperature levels, only slight temperature inputs are required to bring the pad up to its optimum performance level. Another favourite with endurance racers having won many classes at all major endurance events, such as Le-Mans, Daytona, Spa, Nurburgring, etc. Due to the exceptional pad life and very low wear on brake discs it has been possible to run 24 hours without a change of pads or discs. Able to withstand slightly higher disc temperatures than RS19, this has proved more suitable for applications running very high disc temperatures. Although designed primarily for endurance racing, because of the consistent levels of performance and user friendliness many competitors use this material successfully for sprint and short distance races also. RS29 has also found favour in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 3: The PAGID RST3 (Red) is a medium-high friction metal-ceramic compound containing steel and acrylic fibers. It has very low heat conductivity, good initial bite, and excellent modulation and release characteristics. Optimized for rally on tarmac and gravel, GT and Touring cars, and club racing.

  RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

Fits These Vehicles Make Model Build (Year) Front Rear Chevrolet Camaro SS - 4 Piston Brembo caliper 2016 +   X Chevrolet Camaro SS - 6 Piston Brembo caliper - upgrade kit 2016 +   X Chevrolet Camaro ZL1 2016 +   X Chevrolet Corvette C7 base 2014 +   X Chevrolet Corvette C7 Z06 [iron brakes] 2015 +   X Chevrolet Corvette C7 Z51 2014 +   X Ford Mustang Shelby GT350 [6 piston Brembo caliper / 15.5" disc] 2015 +   X   RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear.

Fits These Vehicles Make Model Build (Year) Front Rear Ford Mustang Shelby GT350 [6 piston Brembo caliper w/ 15.5" rotor] 15 - X  RSL 29: The PAGID RSL29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear.   RST 3:The PAGID RST3 is a medium-high friction metal-ceramic compound containing steel and acrylic fibers. It has very low heat conductivity, good initial bite, and excellent modulation and release characteristics. Optimized for rally on tarmac and gravel, GT and Touring cars, and club racing.

Pagid Racing Brake Pads 8240 Front Fits These Vehicles (12 pads total, 6 per side):   Make Model Build (Year) Front Rear Chevrolet Corvette C6 Grand Sport [multi pad system] 2010 - 13 X   Chevrolet Corvette C6 Z06 [multi pad system] 2006 - 13 X     RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 2: PAGID RST2 is an aggressive pad compound with instant pedal response and release, and a firm pedal at all temperatures. Medium to high friction, fade resistant compound with a progressive torque curve and good pedal feel. Recommended for GT racing on tracks where higher temperatures are an issue.

Pagid Racing Brake Pads 8240 Rear Fits These Vehicles (12 pads total, 6 per side):   Make Model Build (Year) Front Rear Chevrolet Corvette C6 Grand Sport [multi pad system] 2010 - 13 X   Chevrolet Corvette C6 Z06 [multi pad system] 2006 - 13 X     RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RST 2: PAGID RST2 is an aggressive pad compound with instant pedal response and release, and a firm pedal at all temperatures. Medium to high friction, fade resistant compound with a progressive torque curve and good pedal feel. Recommended for GT racing on tracks where higher temperatures are an issue.

RST 1: Description: RST 1 has a very high friction level and high temperature resistance. It is a semi-metallic resin bonded material containing steel and acrylic fibers. Cold friction and initial bite make this material most appropriate for Rally and NASCAR applications. Applications: Rally tarmac, GT cars and Touring cars circuit racing (sprint), high down-force formula cars, NASCAR. Suitable for applications in heavy cars and where high torque is necessary against small diameter rotors. RST 3: Description: RST 3 is a medium-high friction metal- ceramic compound containing steel and acrylic fibers and is therefore the perfect complement of the RST product family. It captivates by its low heat conductivity. Applications: Rally tarmac and gravel, GT cars, Touring cars and prototype circuit racing, formula cars and club racing. Wide range of applications due to it‘s combination of bite, friction and controllability.
