Harness Installation & Accessories

Sparco 2 Inch Alcantara Harness Pads Special memory foam harness shoulder pads covered in Alcantara suede with embroidered Sparco logo. FEATURES: Memory foam for amazing comfort. Alcantara stays in place, wears well. For use with 2-inch racing harnesses. Includes two harness pads per package.

Schroth Tuning Harness Pads 2" Belts Sometimes people who wear harnesses for long periods of time complain of irritation of the skin on their shoulders and neck where the harnesses pass over. If that is the case, you need a set of these harness pads to provide a soft cushion between the webbing and your skin. Other people use them as stylish comfort add-ons to their factory three-point seat belts. Made of high quality polyester, these pads can be washed, and can be installed/removed in seconds. They come in a wide variety of colors. One set required per harness. These items have the new style Schroth Racing patch sewn onto them instead of the older-style fuzzy lettering. Priced/sold in pairs.

Schroth Bolt Kit For Porsche GT3 And GT4 For use with the following harnesses: Schroth Porsche GT3/GT4 ASM Harness (4 Point) Schroth Enduro 2x2 Porsche GT3 6 Point Racing Harness Schroth Flexi 2x2 Porsche GT3-GT4 6 Point Racing Harness Looking to install Schroth GT3/GT4 harnesses in your Porsche equipped with factory Lightweight Carbon Bucket seats and three-point seat belts? This bolt kit will attach your Schroth harness to your Lightweight Carbon Buckets while allowing proper rotation for ideal lap belt positioning. Schroth Porsche Bolt Kit Includes: (2) S-82 washers (2) S-104 sleeves (2) S-184 washers (2) SG-29 bolts

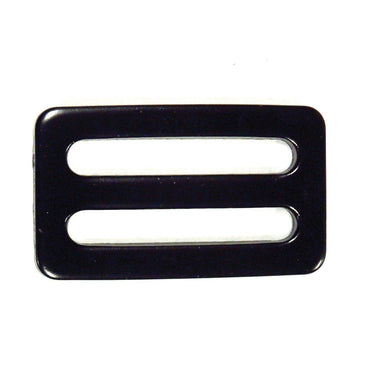

Schroth 3 Bar Slide SR LV10.A This standard three-bar slide is designed for use with 2" webbing. It uses the simple three-bar slide wrapping technique, and is most commonly used for HANS-specific shoulder belts or anti-sub straps. SR LV7 This three-bar slide is designed to be used to wrap any 3" webbing to a harness bar or to wrap an end fitting into 3" webbing. This is the slide found on all 3" shoulder belts.

Schroth Bolt-In or Snap-In Brackets B24 Bracket The B24 is the most economical bolt-in bracket offered. It's a heavy-duty steel bracket that cannot be bent to aid installation. Dimensions are 5mm thick, 69 x 46mm with a 13mm (1/2") bolt hole. There is a slight 10° bend so that this bracket can be bolted directly to a flat surface and leave room for webbing wrapped into it. It can be sewn in or wrapped with an LV4 (recommended), LV10 or LV11. FIA and SFI 16.1/16.5 approved. Cannot be used for a lap belt bolt-in bracket under SFI 16.5. Three-inch webbing must be folded at the edges for use with this bracket. B15 Bracket The B15 snap-in bracket snaps to eyebolts or bolt-in bracket B23B. It can be sewn into 2" and 3" webbing, or wrapped with an LV4, LV10 or LV11. When wrapped into 3" webbing, one must fold the edges of the webbing in and use an LV7. Can be used on any point of a harness, including lap belt, sub strap, or shoulder belt. FIA and SFI 16.1 approved.

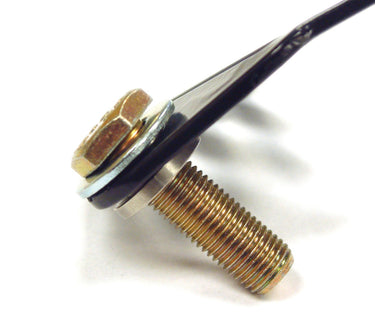

Schroth Harness Pivot Sleeves The ideal situation for bolt-in harnesses is when the bracket can pivot on the bolt to allow for perfect geometry. This pivot action allows the force applied on the webbing to dictate the orientation of the bolt in bracket achieving the desired orientation of the bracket. Sleeves must be used in conjunction with a washer on one side. See picture of assembled bolt in setup. Sleeves are available in different sizes for different bolts. Note: if you are using a B24 bracket, you will need the sleeve specific to that bracket. Schroth Pivot Sleeve Hole Sizes SR S64: 3/8" (M10) SR S64-B24: 3/8" (M10) -- for B24 bracket only SR S65: 7/16" (M10) SR S65L: 7/16" (M10) -- for B24 bracket only SR S86: 5/16" (M8)

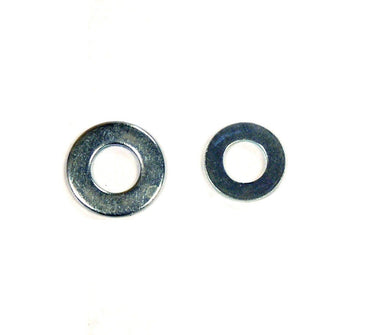

Schroth Harness Washers If you are using a bolt-in harness bracket, you will want to use the corresponding sleeves to allow that bracket to pivot. These are the washers you'll need to finish the setup. Schroth Washer Hole Sizes: SR S82: 7/16" SR S83: 3/8" (M10) SR S86: 5/16" (M8)
