Data Loggers & Video

AiM ECU Bridge with RS232 / CAN Wiring Connecting to the ECU allows the AiM unit access to data collected by your ECU (RPM, road speed, coolant temperature, and throttle position are typical; many ECUs offer much more information). Works with these AiM displays with a male 5-pin CAN connector: MXG MXS MSM MXL & MXL Pro G-Dash Display Formula Car Wheel Display SmartyCam requires the AiM 7-pin to 5-pin CAN Cable (Part No. MC-542, included with the SmartyCam). The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for setup. ECU Bridge is available with CAN/RS232 connection, for direct installation on aftermarket ECUs. ECU Bridge and RPM Bridge are needed whenever engine data are to be visualized on a display or on a SmartyCam HD video, if no recording is required. ECU Bridge is used when the ECU transmits data via OBDII, CAN or RS232. AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. ECU Bridge has to be properly configured with Race Studio 2 software to communicate with the different visors/cameras on one side and ECUs on the other side. WIRING DETAILS: CAN protocol for external modules (visors or SmartyCam HD) USB port for PC communication External power 8/18 V

Garmin Dash Cam 57w Includes 16GB Class 10 microSD Card This pocket-size dash camera is remarkably compact, making it perfect for capturing video without getting in your way. Two power cable options -- upward or downward routing -- are included for a tidy and discreet installation. With 1440p HD video, 140º lens and Garmin Clarity™ HDR optics, the Garmin Dash Cam 57 records crisp video of important details, day and night. If desired, use the 2” LCD display to play back video right on the device. Want to record your track sessions without the fuss of setting up a full data acquisition system and/or lap timer? If so, the Garmin Dash Cam 57 may be the solution you're looking for. That fact that it's also helpful for daily driving is a bonus, but that's not why you're shopping at Competition Motorsport after all. You're probably wondering if you can record your sessions easily. To answer that question, here's a direct quote from the Garmin Product Strategy Manager we spoke to: "Yes! The user will be able to upload all the footage from the SD card to the Drive app. They just need to make sure that they prompt the dash cam to upload the footage so the camera doesn't automatically record over it." So there you have it! Garmin technology and simplicity in an unobtrusive package to capture your laps quickly and easily. What's In The Box? Garmin Dash Cam 57 Pre-installed 16GB microSD card Low profile adhesive/magnetic mount Vehicle power cables Dual USB power adapter Documentation

Includes Transponder Holder MyLaps TR2 Transponder The new standard in sports timing! The TR2 Transponder is the newest and most innovated transponder for motorsports. Reliable hardware, easy subscription management via Bluetooth and the Speedhive App and flexible subscription options to fit your needs. Make Racing Easier The TR2 Transponder is a product, arising from listening carefully to you, our users. The TR2 Transponders is the world-leading standard in accuracy, just like our other Transponders, but now made much easier in many ways. The TR2 Transponder is the new standard. Easy To Manage Always be prepared before racing! The new TR2 Transponder gives you all the information you need to start your race fully prepared. Due to a Bluetooth connection with the Speedhive app, it’s very easy to register and activate your transponder. In the Speedhive app, you’re easily reminded of the duration of your ongoing license and battery status. Manage the needs of your transponder everywhere with your smartphone. Free Speedhive App The more you know, the faster you go. With the TR2 Transponder, all your race data will be available your personal MYLAPS Speedhive account. The free Speedhive app gives you quick access to the official results of motorized sport events. FEATURES: Easy connection of your transponder with your Speedhive App via Bluetooth Easy buying and syncing your subscription with your Speedhive App Up to date status of battery level and subscription status View live race data Get quick and easy mobile access to your personal event results Compare your lap times with other racers in one graph Gain followers with your personal profile Analyze where you won and lost compared to your opponents Follow races and racers all over the world

AiM 23-Pin MXS/MXP Strada Harness This add-on harness plugs into the 23 pin AMP connector on the AiM MXS 1.2 Strada, MXP Strada, and MXG 1.2 Strada street dashes to unlock certain dash features. If you don't want to build your own harness, this harness is required in order to use the following features: Analog input channels (8) Digital wheel speed channel (1) RPM input Digital output CAN2 stream input Manufacturer: AiM Manufacturer part number: V02573220 For use with AiM MXS 1.2 Strada (Standard and "Street Icons"), MXP Strada, and MXG 1.2 Strada only. Not for original MXS Strada, MXS/MXP/MXG data logging dashes, or any other dash or logger.

AiM OBD Harness for MX-Series 1.2 Strada Dashes From AIM Sports, discover the specialized wiring harness compatible with the AiM MXS 1.2 Strada, MXP Strada, and MXG 1.2 Strada street dashboards. Designed to seamlessly connect via a 14-pin AMP connector, this harness ensures efficient power, ground, USB, and CAN expansions. Additionally, it facilitates a direct ECU link through the OBD-II diagnostic port. Ideal for production vehicles equipped with an OBD-II port, the harness supports both CAN and K-Line communication standards. Available for individual purchase. Note: Dashboard is sold separately."

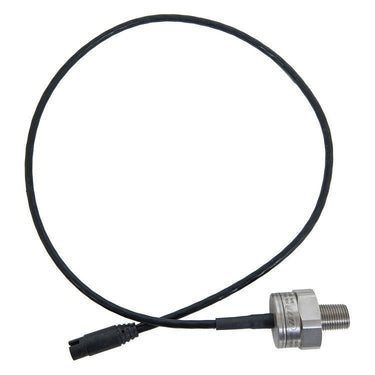

AiM Sports KA 50 psi Boost/Vacuum (Absolute Pressure) Sensor This "absolute pressure" sensor is ideal for measuring vapor (gas) pressures, from intake boost to crankcase pressure. The 50 psi pressure range is based on perfect vacuum (i.e., from 15 psi below atmospheric pressure to 35 psi above). This sensor is marked "0-50psiA" to differentiate it from the standard 0-50 psi sensor (marked "0-50psiSG"), which does not measure vacuum. KA pressure sensors are more robust than VDO-style pressure sensors, but they should still be isolated from engine heat and vibration whenever possible. It is compatible with these AiM products: MyChron5 MXL MXL 2 MXG MXS MXM EVO3 EVO4 Features 1/8" NPT male threads.

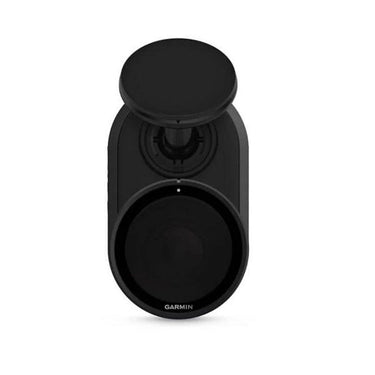

Garmin Remote Camera This is a replacement 1080P camera for the Garmin Catalyst Driver Performance Optimizer. Includes power/data cable, polarized lens cover, adhesive mount and adhesive cable clips. IN THE BOX: Remote cam Polarized lens cover Adhesive mount One 3.5-meter cable Five cable clips

AiM Kart Racing Steering Angle Sensor Measure and log your kart driver's steering input with the AiM Steering Angle Sensor. Includes a rotary potentiometer with a male 4-pin 719-style connector, two toothed pulleys, one toothed belt, and one sensor mounting bracket. The steering shaft pulley is designed to fit a 7/8"-diameter shaft. (Smaller shafts will need to add a bushing to fit the pulley.) This sensor is designed to measure up to five complete turns of the steering column. This sensor requires the addition of an Expansion Box or eBox when used with MyChron3 Extreme, MyChron4, and MyChron5 kart dash loggers. If your steering column is larger than 7/8", consider using the AiM String Pot Steering Angle Sensor (Part No. AIM-MC-280) instead. The String Pot can work with any diameter steering shaft.

AiM Sports Pressure Sensor NOTE: Sensors typically take 3 to 5 business days to ship. Add the appropriate AiM Sports Pressure Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! All sensors have a 40 cm (16 inch) cable length

AiM Sports Position Sensors NOTE: Sensors typically take 3 to 5 business days to ship. Add the appropriate AiM Sports Position Sensor to your AiM data set-up to retrieve exactly the information you need to maximize your data acquisition and take your racing to the next level! All sensors have a 30cm (12 inch) cable length

Garmin Catalyst Screw Down Mounting Kit To mount the award winning Garmin Catalyst to a race car, we prefer the Garmin Catalyst Screw Down Mounting Kit. It includes a flat mount plate with two articulating balls and the special magnetic tablet mount.  Garmin Catalyst Screw Down Mounting Kit Details: Manufacturer: Garmin Manufacturer Part Number: 010-13081-01 We have many racers that also take their Garmin Catalyst from their track car to their DE car and the Garmin 010-13081-01 Screw Down Mounting Kit is a track worthy way of securing your Catalyst to your race car.

Garmin Catalyst Cage Mount Compatible with RAM mount parts This cage mount cradle for the Garmin Catalyst driving performance optimizer provides a secure fit with quick and easy one-handed attachment and removal of the Catalyst from the cradle. This mounting kit includes a 2.5” (64mm) round base with AMPS hole pattern, locking double socket arm and diamond base adapter that connects to the cage mount cradle. The Garmin Catalyst Cage Mount includes a low-profile magnetic mount that replaces the magnetic mount that ships with the Catalyst. (The Catalyst magnetic mount does not fit in this cage mount cradle.) This mount has a ball joint size of 1.0” (25.4 mm). What's In The Box? Cage with assembly hardware Low-profile magnetic mount 2.5” round base with AMPS hole pattern Locking double socket arm Diamond base adapter that connects to the cage mount cradle Note: This is not a roll cage mount.

Garmin Catalyst Suction Mount For use with the Garmin Catalyst Driver Performance Optimizer. Attaches your Garmin Catalyst securely to your windshield or other flat surface.

AiM Magnetic Pedal Position Sensor For MyChron5 The accelerator/brake pedal position sensors is a crucial support device for kart drivers. They provide a precise indication of timing and intensity of braking and/or acceleration. This permits the team to understand whether the driver has accelerated or braked at the right moment, with the correct pedal strength, across multiple laps and overlaid with other critical data. This is a very important factor in evaluating driver behavior and improving his/her performance. Data can be acquired by your MyChron5 connected to a MyChron Expansion and analyzed on your PC. Made in anodized aluminium, these sensors are very robust and water-resistant. Calibration is immediate: once installed, connect the sensors to your MyChron Expansion and get pedal positions (in high position and zero position). After that the sensor will start getting acceleration or braking data. Call us with any questions you have about the incredible new MyChron5 2T from AiM!

APEX Pro Motorsports Phone Mount The APEX Pro Motorsports Phone Mount was designed in-house by APEX Pro for the demands and rigors of driving on track. The strong suction base is rated for five pounds, so holding your phone securely is no problem. The sleek anodized aluminum phone holder is adjustable and can hold the largest smart phones currently available. This mount is designed to shake less while recording video compared to other phone mounts. (Depending on the shape of your phone and the camera location – not centralized like an action cam – there's likely to still be some shakiness in your video.) In our testing, we found the iPhone 12 and iPhone 6S to have the best stabilization for in-car video. This phone mount is perfect when paired with the Lap Timer Plus in-app purchase available on the home screen of the APEX Pro app. FEATURES Securely mounts any phone from 2.6" to 3.6" (66 to 91mm) wide, including case. Designed for use with Lap Timer Plus. Tough anodized aluminum mount. Fits any size phone. (Not compatible with iPod Touch.) Great for timing, scoring, and video-recording apps on the road and at the track. Tilt and lock the hinge with 360o rotation ability. Sturdy design for smooth or rough surfaces. Perfect way to display the APEX Pro app.
