Performance Friction PFC 7780 Brake Pads

Performance Friction PFC 7780 Brake Pad Fitment Guide

The Performance Friction PFC 7780 brake pad delivers race-proven braking performance for drivers who demand consistent stopping power, precise modulation, and confidence under repeated heavy braking. Featuring a 131.5 mm wide backing plate, 68 mm overall height, 50.5 mm friction material depth, and 18 mm pad thickness, the PFC 7780 is designed for compatible high-performance brake calipers used in HPDE, track days, club racing, and motorsport competition.

Available from Competition Motorsport in PFC 01 and PFC 08 racing compounds, the 7780 allows drivers to select the braking characteristics that best match their vehicle, driving style, and competition requirements. Whether you prioritize aggressive initial bite and responsive braking or consistent endurance performance with excellent modulation, Performance Friction offers two proven compound options for demanding track applications.

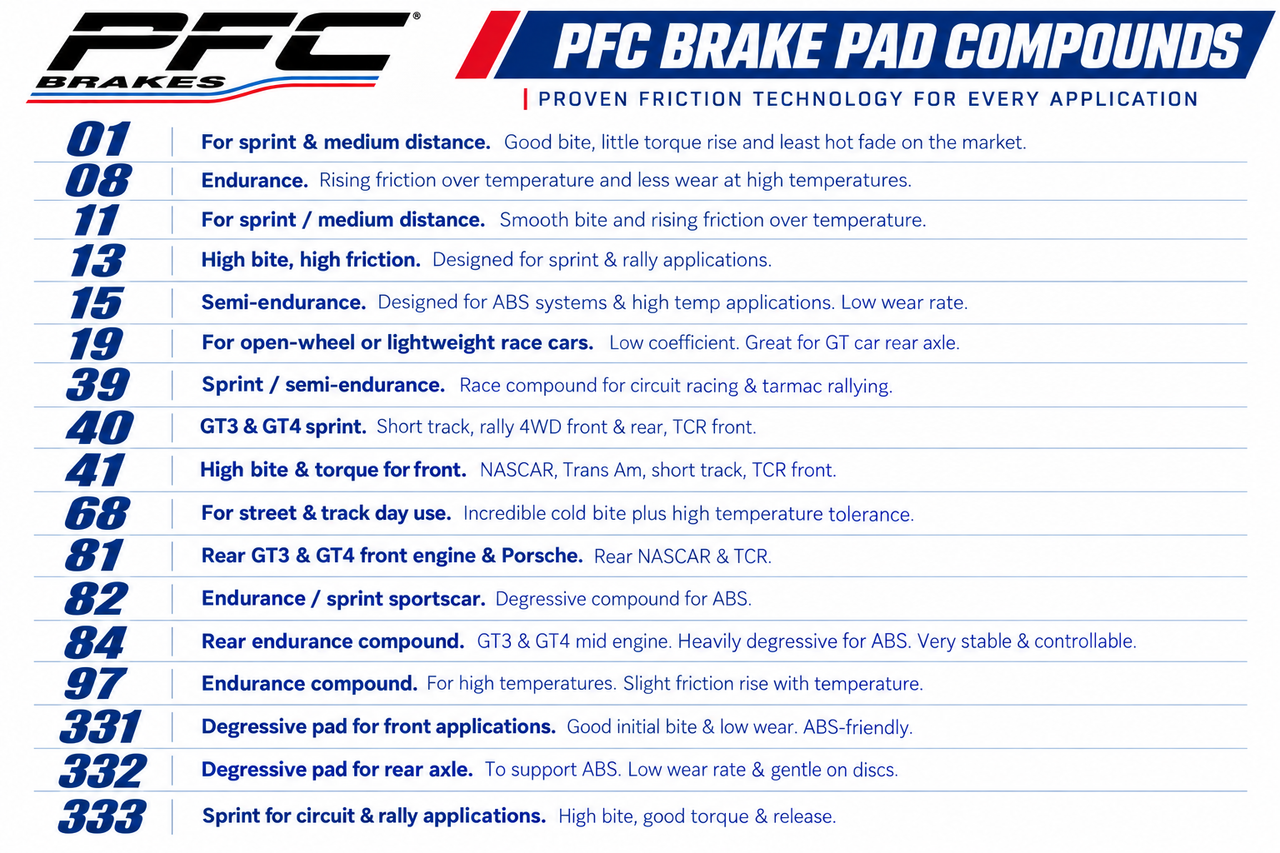

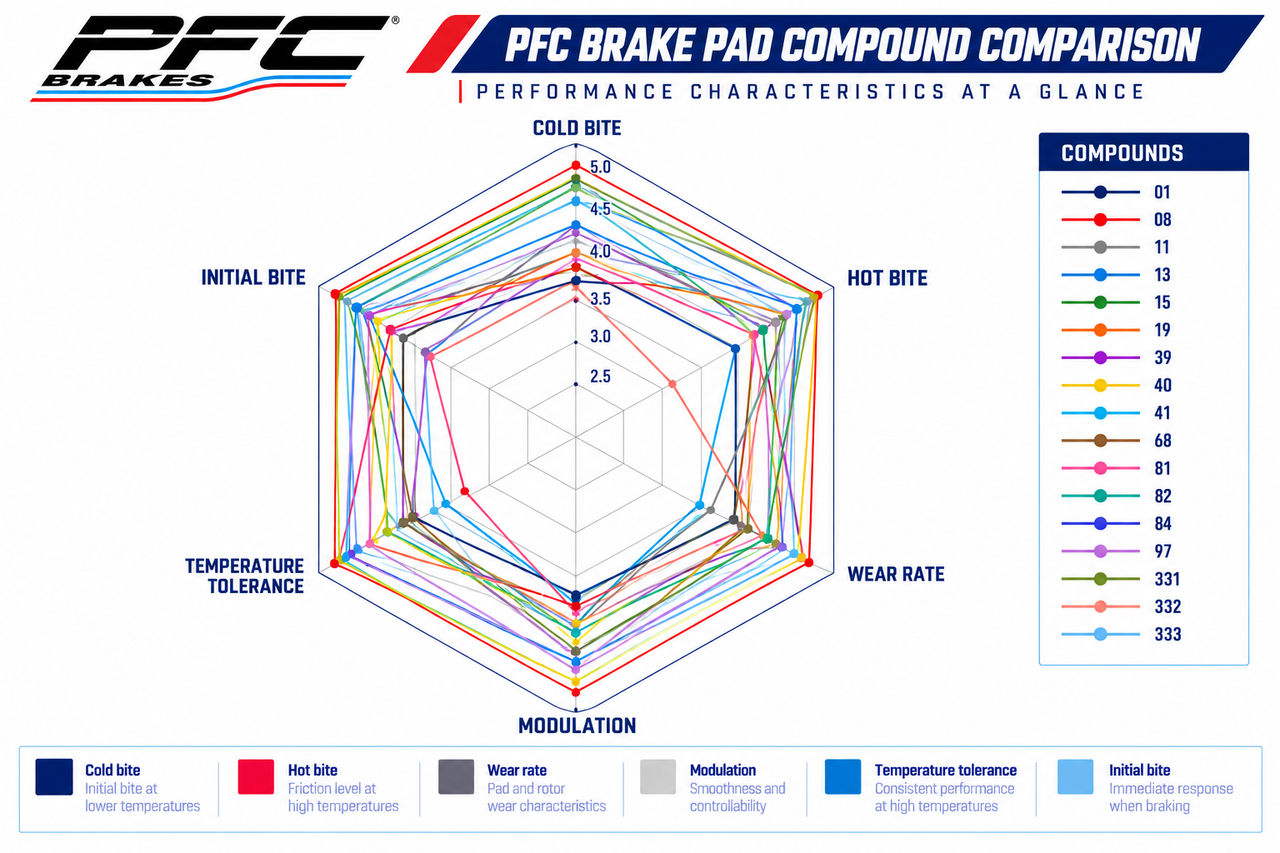

PFC Brake Compound Performance

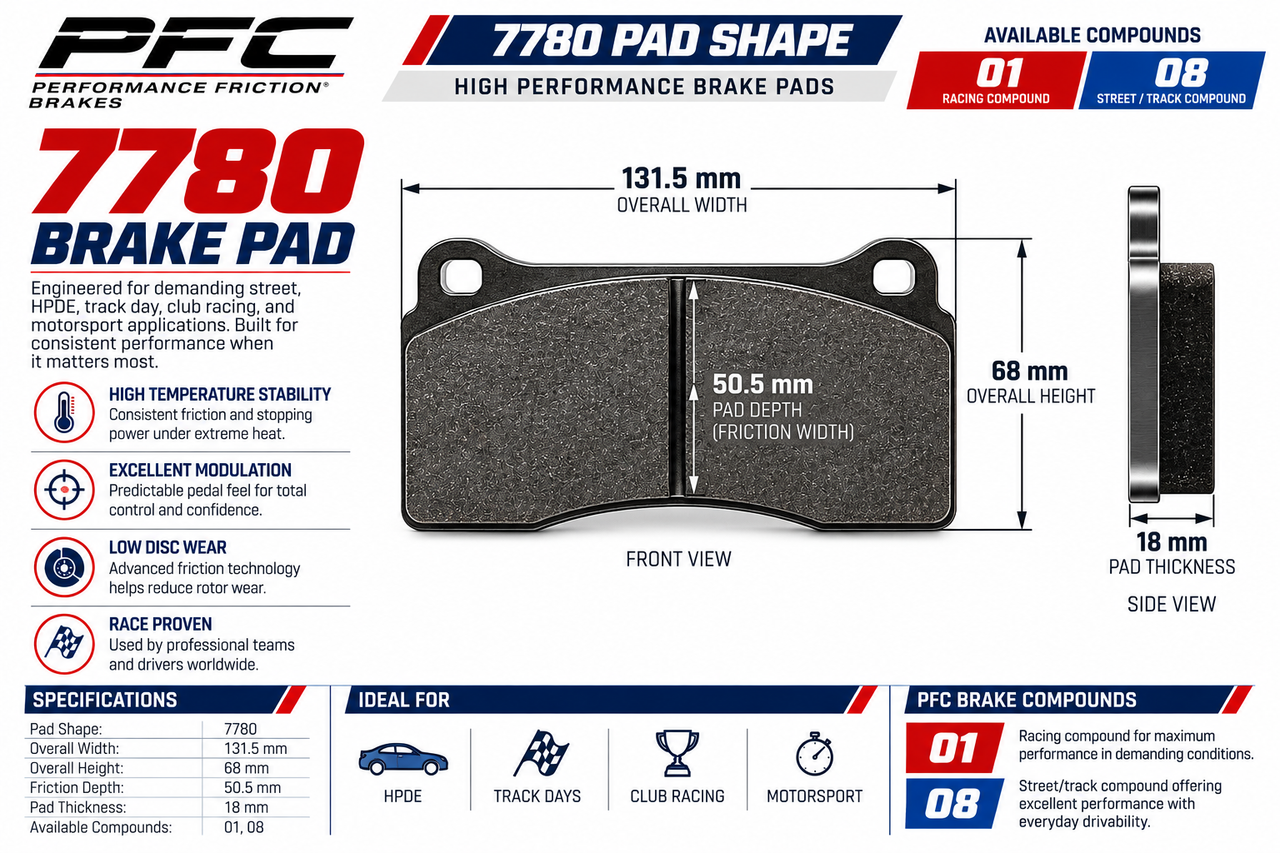

PFC 7780 Brake Pad Specifications

• Manufacturer: Performance Friction (PFC)
• Pad Shape: 7780
• Overall Width: 131.5 mm
• Overall Height: 68 mm
• Friction Material Depth: 50.5 mm
• Pad Thickness: 18 mm
• Available Compounds: PFC 01 and PFC 08
• Intended Use: HPDE, track days, club racing, sprint racing, and endurance racing

The PFC 7780 features a distinctive backing plate with two upper retaining openings, a curved upper friction surface, a centrally divided pad face, and a shallow concave lower edge. Its specific mounting geometry makes accurate pad identification essential when replacing existing racing brake pads or selecting friction materials for performance calipers.

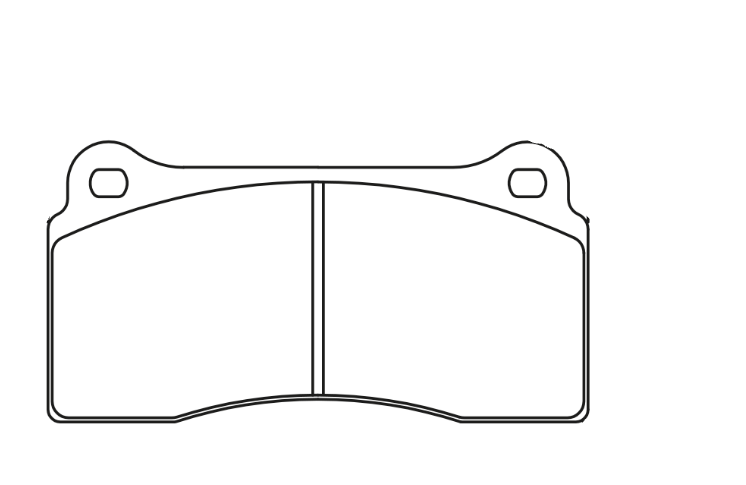

Always compare the 7780 technical drawing and dimensions with your existing brake pads or caliper manufacturer's specifications before ordering.

PFC 01 Racing Brake Compound – Aggressive Bite and Responsive Braking

The Performance Friction 01 compound is a competition-focused racing friction material known for its aggressive initial bite, strong brake torque, and responsive pedal feel. Designed for demanding racing environments, PFC 01 provides the immediate braking response and precise control that experienced drivers expect during high-intensity track sessions.

With strong initial bite and consistent braking characteristics, the PFC 01 compound is particularly well suited to sprint racing, club racing, and advanced track-day applications where rapid deceleration and confident brake modulation are essential.

For drivers who prefer a more aggressive initial braking response and strong overall stopping power, PFC 01 is an excellent choice.

PFC 08 Racing Brake Compound – Endurance Performance and Modulation

The Performance Friction 08 compound is a proven endurance racing friction material developed to deliver predictable braking response, exceptional modulation, and excellent pad and rotor wear characteristics during extended competition.

PFC 08 features a smoother initial bite than the more aggressive 01 compound, making it particularly attractive to drivers who prioritize progressive pedal feel, precise brake control, and consistency over long track sessions.

Its durability and controlled friction characteristics make PFC 08 a popular choice for endurance racing, club racing, advanced HPDE, and track-day vehicles subjected to repeated high-temperature braking.

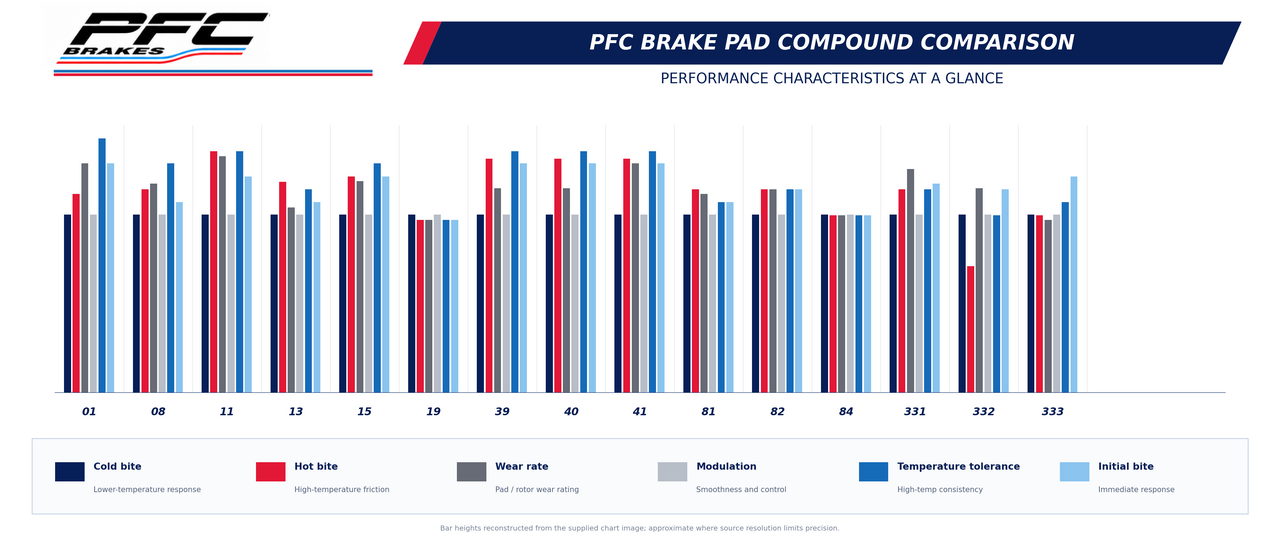

PFC 01 vs. PFC 08 – Which Racing Brake Compound Should You Choose?

Both PFC 01 and PFC 08 are dedicated racing compounds, but they offer different braking characteristics to suit individual driving styles and competition requirements.

• PFC 01: Aggressive initial bite, strong brake torque, and responsive braking characteristics. Ideal for drivers who prefer immediate brake response and demanding sprint racing applications.
• PFC 08: More progressive initial bite, excellent modulation, and strong pad and rotor wear characteristics. Ideal for endurance racing, club racing, and drivers seeking consistent braking performance over extended sessions.

For shorter sprint races and drivers who prefer aggressive initial bite, PFC 01 is often the preferred choice. For endurance racing, longer track sessions, and drivers who prioritize progressive modulation and durability, PFC 08 is an excellent alternative.

Both compounds are intended primarily for motorsport use. Brake noise, dust, and reduced performance outside the intended operating temperature range may occur during street driving.

Why Choose Performance Friction PFC 7780 Brake Pads?

Performance Friction has established a strong reputation in professional motorsport through the development of advanced racing brake friction materials and braking systems. The PFC 7780 pad shape combines precise backing plate geometry with two competition-proven friction compounds, allowing drivers to tailor braking performance to their vehicle and racing requirements.

• Race-proven Performance Friction braking technology
• 131.5 mm overall width and 68 mm overall height
• 50.5 mm friction material depth
• 18 mm nominal pad thickness
• Choice of aggressive PFC 01 or endurance-focused PFC 08 racing compounds

PFC 7780 Brake Pad Fitment and Compatibility

The Performance Friction 7780 brake pad is intended for brake calipers requiring its specific backing plate dimensions, retaining features, and friction material geometry. Proper fitment depends on caliper design, vehicle brake configuration, and required pad thickness.

Before ordering, verify the 131.5 mm overall width, 68 mm overall height, 50.5 mm friction material depth, 18 mm thickness, and retaining-hole locations against your existing brake pads or caliper manufacturer's specifications.

Vehicle make and model alone may not establish compatibility, particularly when optional brake packages or aftermarket performance calipers are installed.

Frequently Asked Questions About PFC 7780 Brake Pads

What is the difference between PFC 01 and PFC 08?

PFC 01 provides a more aggressive initial bite and responsive braking feel, while PFC 08 emphasizes progressive modulation, consistent endurance performance, and excellent wear characteristics.

Are PFC 7780 brake pads suitable for track days?

Yes. Both 01 and 08 are racing compounds suitable for demanding track applications when matched to the vehicle, brake system, and operating temperatures. PFC 08 is particularly attractive for drivers seeking predictable modulation and durability during extended sessions.

Can PFC 7780 brake pads be used on the street?

PFC 01 and 08 are competition-oriented friction materials primarily intended for track use. They may produce additional noise and dust and may not provide ideal braking characteristics at normal street operating temperatures.

How do I confirm that PFC 7780 pads fit my brake calipers?

Compare your existing brake pads with the PFC 7780 technical drawing. Confirm the 131.5 mm width, 68 mm height, 50.5 mm friction material depth, 18 mm thickness, and retaining-hole geometry. Contact Competition Motorsport if you need assistance confirming compatibility.

Buy PFC 7780 Racing Brake Pads at Competition Motorsport

Competition Motorsport specializes in Performance Friction racing brake pads, premium motorsport braking components, and professional racing equipment for HPDE enthusiasts, track-day drivers, club racers, and professional race teams.

Select your preferred PFC 7780 compound, 01 or 08, above and prepare your braking system for your next track event. If you're unsure which compound is best for your vehicle, contact our motorsports specialists for assistance with brake pad selection and fitment.
