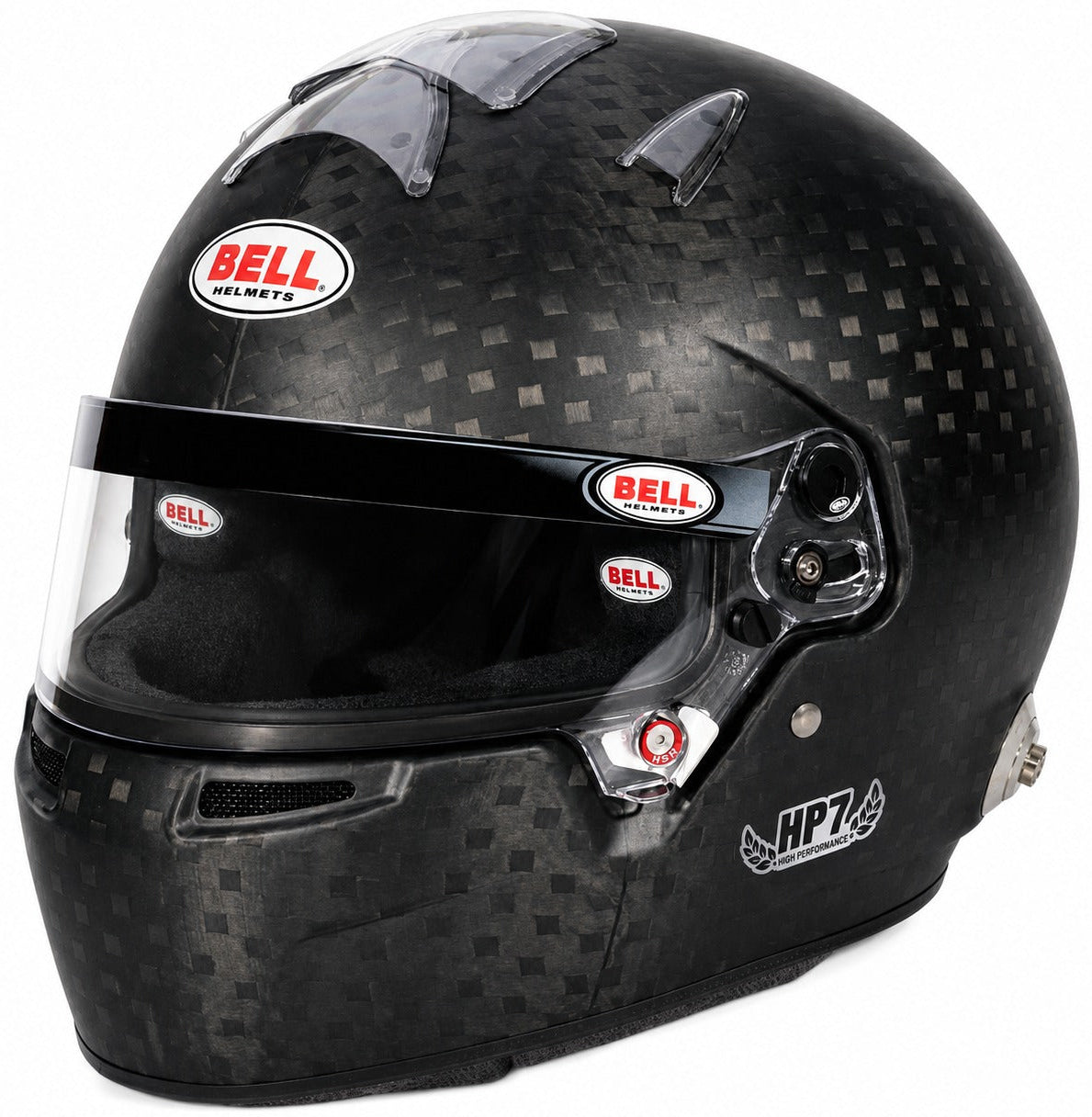

Bell HP7 EVO-IV Carbon Fiber FIA 8860-2018 Helmet
The Bell HP7 EVO-IV Carbon Fiber Helmet is Bell Racing's flagship FIA 8860-2018 full-face racing helmet, developed through close collaboration with leading Formula 1 drivers and teams. Engineered for professional drivers competing at the highest levels of motorsport, the HP7 EVO-IV combines an ultra-lightweight carbon fiber shell, advanced impact-energy management, exceptional ventilation, and aerodynamic performance.
Designed for both open-cockpit and closed-cockpit competition, the HP7 EVO-IV gives racers access to Bell's advanced aerospace composite technology and multi-density energy-absorbing liner system while maintaining the comfort required for long and demanding race sessions.
FIA 8860-2018 Advanced Helmet
The Bell HP7 EVO-IV is homologated to the FIA 8860-2018 standard. This high-level FIA helmet specification is intended for professional drivers competing in high-speed motorsports where advanced impact performance and lightweight construction are critical.
The HP7 EVO-IV is the FIA 8860-2018 version of Bell's HP7 platform. Drivers specifically requiring FIA 8860-2018 ABP ballistic protection should select the HP77 rather than the standard HP7 EVO-IV.
High-Strength Carbon Fiber Shell
The HP7 EVO-IV features an ultra-lightweight high-strength and high-modulus carbon fiber shell. Bell's advanced carbon construction is designed to provide exceptional structural performance while minimizing unnecessary helmet weight and bulk.
The carbon shell is finished in Bell's distinctive matte carbon appearance, exposing the premium motorsport construction that defines the High Performance Series.
Advanced Multi-Density Impact Liner
Inside the carbon shell is an advanced multi-density, multi-piece energy-absorbing liner. The liner system is engineered to manage impact energy while maintaining the compact dimensions and comfortable fit required for professional racing.
Optical-Grade DSAF Shield
The Bell HP7 EVO-IV uses an optical-grade injection-molded Double Screen Anti-Fog (DSAF) shield. The dual-screen construction helps control fogging while providing excellent optical clarity in changing cockpit and weather conditions.
The HP7 EVO-IV uses the Bell SE07 3mm shield with the SV(SE07) pivot system. Replacement clear, tinted, and specialty shield options are available separately.
12-Channel Ventilation System
Bell equips the HP7 EVO-IV with a powerful top and chin-bar ventilation system featuring 12 intake and extraction channels.
The system uses a two-piece center intake together with low-profile side intakes to move air through the helmet while maintaining aerodynamic efficiency. The ventilation design also helps reduce internal noise and improve driver comfort during long racing sessions.
Aerodynamic Shell and Shield Design
The shell and shield system are designed as an integrated aerodynamic package. The HP7 EVO-IV's streamlined profile helps manage airflow around the helmet while reducing unnecessary turbulence and internal noise.
Drivers can further tune the helmet's aerodynamic characteristics with optional Bell accessories including a rear spoiler, top gurney, and chin-bar gurney.
Integrated Communication System Channels
The HP7 EVO-IV includes integrated channels within the face area that provide multiple routing options for racing communication equipment.
This allows radio wiring and related communication components to be installed more cleanly without unnecessary interference with the helmet's interior fit.
Drink Tube Compatible
The HP7 EVO-IV can also be configured for hydration use. Available configurations provide routing for a drink tube, and a special-order frontal chin-bar opening is available for drivers requiring direct hydration-system integration.
Factory-Installed HANS Anchors
Factory-installed HANS anchors are included as original equipment, making the HP7 EVO-IV ready for use with compatible Head and Neck Restraint systems.
Synthetic Rubber Visor Seal
A synthetic rubber gasket surrounds the eyeport to help prevent dirt and water from entering the helmet around the shield opening.
This additional sealing is particularly useful for racers competing in open-cockpit cars or changing weather conditions.
Bell HP7 EVO-IV Features
- FIA 8860-2018 homologation
- Developed with leading Formula 1 drivers and teams
- High-strength and high-modulus carbon fiber shell
- Ultra-lightweight High Performance Series construction
- Advanced multi-density, multi-piece impact liner
- Optical-grade Double Screen Anti-Fog shield
- Bell SE07 3mm shield compatibility
- SV(SE07) pivot system
- 12 intake and extraction ventilation channels
- Top and chin-bar ventilation
- Aerodynamically optimized shell and shield design
- Integrated communication-system channels
- Drink-tube installation capability
- Factory-installed HANS anchors
- Synthetic rubber eyeport gasket
- Optional rear spoiler available
- Optional top gurney available
- Optional chin-bar gurney available
- Matte carbon fiber finish
- Helmet bag included
Designed for Open and Closed-Cockpit Racing
The HP7 EVO-IV is suitable for a broad range of high-level motorsport applications. Its aerodynamic profile and lightweight construction make it an excellent option for open-cockpit competition, while its comfort, ventilation, and communication compatibility also make it highly effective in sports cars and GT racing.
HP7 EVO-IV vs. HP77 EVO-IV
The HP7 EVO-IV is homologated to FIA 8860-2018 and is suitable for both open and closed-cockpit racing. The HP77 EVO-IV builds on the HP7 platform and adds the Advanced Ballistic Protection required for FIA 8860-2018 ABP homologation.
If your racing series specifically requires FIA 8860-2018 ABP certification, choose the HP77 EVO-IV. If FIA 8860-2018 is the required standard, the HP7 EVO-IV provides Bell's premium carbon construction without the additional ABP specification.
Bell HP7 EVO-IV Shield Compatibility
The HP7 EVO-IV uses the Bell SE07 3mm shield. Multiple replacement shield options are available for different lighting and racing conditions.
Bell HP7 EVO-IV Interior Colors
The standard HP7 EVO-IV interior uses Bell's Dark Grey High Strength – High Comfort fire-resistant fabric.
Alternative interior colors are available by special order, including Tan, White, Red, Purple, Blue, Green, Neon Yellow, Pink, and Orange. Special-order interiors may require additional production time and cost.
Available Helmet Sizes
The Bell HP7 EVO-IV is available in sizes 54, 55, 56, 57, 58, 59, 60, 61, and 61+.
Proper helmet fit is essential. Measure around the widest portion of the head with a flexible measuring tape and compare the result with the Bell sizing chart before choosing your helmet size.

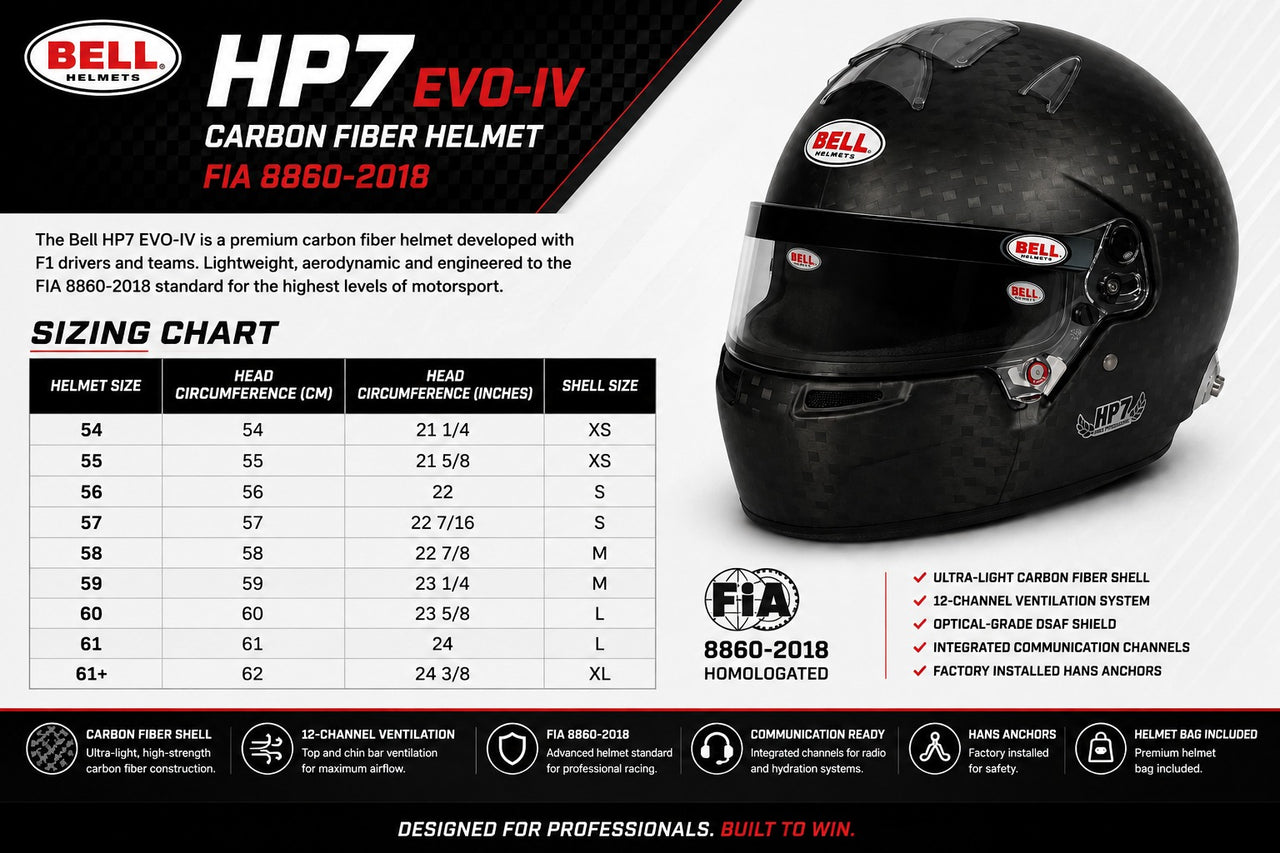

Bell HP7 EVO-IV Carbon Fiber Helmet Sizing Chart
Bell HP7 EVO-IV Carbon Fiber Helmet Questions & Answers
What certification does the Bell HP7 EVO-IV have?
The Bell HP7 EVO-IV is homologated to the FIA 8860-2018 standard.
Is the Bell HP7 EVO-IV carbon fiber?
Yes. It features an ultra-lightweight high-strength and high-modulus carbon fiber shell.
Is the HP7 EVO-IV the same as the HP77 EVO-IV?
No. The HP7 EVO-IV meets FIA 8860-2018, while the HP77 EVO-IV adds Advanced Ballistic Protection and meets the FIA 8860-2018 ABP standard.
Can the HP7 EVO-IV be used in open-cockpit racing?
Yes. The HP7 EVO-IV is designed for professional motorsports and is suitable for both open-cockpit and closed-cockpit racing applications.
What shield does the Bell HP7 EVO-IV use?
The HP7 EVO-IV uses the Bell SE07 3mm shield with the SV(SE07) pivot system.
Does the shield have anti-fog protection?
Yes. The HP7 EVO-IV uses an optical-grade Double Screen Anti-Fog shield designed to help control visor fogging.
How many ventilation channels does the HP7 EVO-IV have?
The helmet uses 12 intake and extraction channels through the top and chin-bar ventilation system.
Does the Bell HP7 EVO-IV come with HANS anchors?
Yes. Factory-installed HANS anchors are included as original equipment.
Can communications be installed in the HP7 EVO-IV?
Yes. Integrated channels in the face area provide multiple options for routing compatible racing communication systems.
Can a drink tube be installed?
Yes. The HP7 EVO-IV can accommodate drink-tube routing, and a special-order frontal chin-bar opening is available for certain hydration-system installations.
Can aerodynamic accessories be added?
Yes. Bell offers compatible rear spoilers, top gurneys, and chin-bar gurneys separately.
Does the HP7 EVO-IV include a helmet bag?
Yes. A Bell helmet bag is included.
What interior comes standard?
Dark Grey High Strength – High Comfort fire-resistant fabric is standard. Several custom interior colors are available by special order.
What sizes are available?
Bell offers the HP7 EVO-IV in sizes 54 through 61+.
Does this helmet require a signature for delivery?
Yes. This helmet ships with signature required for delivery.
