Race Technologies 2416 Racing Brake Pads

Race Technologies 2416 Brake Pad Fitment Guide

Race Technologies 2416 Brake Pads

The Race Technologies 2416 brake pad is a high-performance pad shape engineered for demanding street, HPDE, track day, club racing, and motorsport applications. Measuring 114.5 mm wide by 83 mm high with a 70 mm pad depth, the 2416 provides a substantial friction surface designed to deliver stable braking, predictable modulation, and consistent performance under repeated heavy braking.

Competition Motorsport offers the Race Technologies 2416 brake pad in RE10 and TS20 compounds, allowing drivers to select the friction characteristics best suited to their vehicle, tire package, operating temperatures, and intended use.

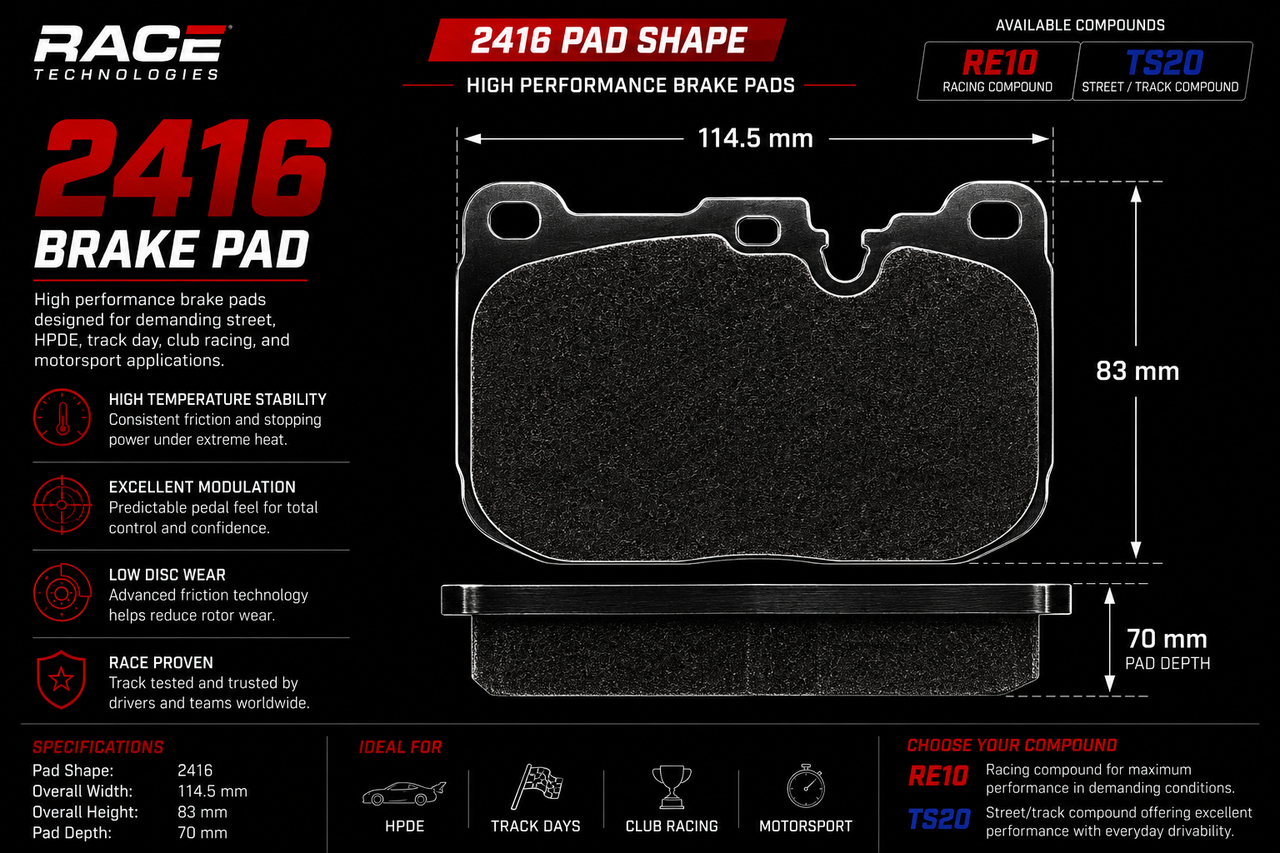

Race Technologies 2416 Brake Pad Specifications

• Pad Shape: 2416
• Overall Width: 114.5 mm
• Overall Height: 83 mm
• Pad Depth: 70 mm
• Available Compounds: RE10 and TS20
• Application: High-performance street, HPDE, track day, club racing, and motorsport use depending on compound

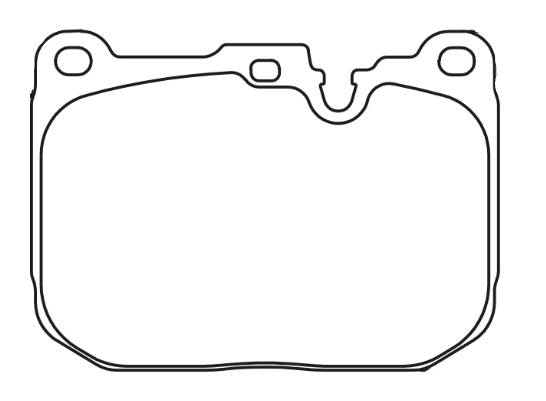

The 2416 pad shape features a tall friction surface, dual outer retention holes, a centered upper locating feature, and a deep center relief. Because brake systems can vary by vehicle, model year, and caliper configuration, compare the 2416 pad outline and dimensions with your existing brake pads before ordering.

Race Technologies 2416 Brake Pad Compounds

RE10 Racing Compound

Race Technologies RE10 is a competition-focused friction material developed for demanding track and racing environments. It is designed to provide strong braking performance, excellent modulation, high-temperature stability, and consistent friction characteristics through repeated braking cycles.

RE10 is well suited to advanced HPDE, sprint racing, club racing, and endurance applications where thermal capability and repeatable braking performance are priorities. As a race-oriented compound, increased brake dust and noise can occur during lower-temperature street use.

TS20 Street and Track Compound

Race Technologies TS20 is designed for drivers who need strong braking performance across both street and track environments. It offers responsive initial bite, predictable pedal feel, good fade resistance, and more street-friendly characteristics than a dedicated racing compound.

TS20 is a strong choice for performance vehicles that regularly transition between spirited street driving, HPDE events, and track days.

Choosing Between RE10 and TS20

Choose RE10 when the vehicle is primarily used for demanding track or racing applications where sustained temperatures, consistent friction, and race-focused performance are the priority. Choose TS20 for dual-purpose street and track vehicles where strong braking performance needs to be balanced with improved everyday drivability.

The ideal compound depends on vehicle weight, tire grip, rotor configuration, brake cooling, track layout, driving style, and operating temperatures.

Why Choose Race Technologies 2416 Brake Pads?

The 2416 pad shape provides a large friction area with a 70 mm pad depth, making it well suited to braking systems that must manage significant heat and braking energy. Combined with Race Technologies performance compounds, the 2416 is designed to deliver predictable pedal feel, consistent stopping power, and dependable performance session after session.

Always verify the 114.5 mm overall width, 83 mm overall height, 70 mm pad depth, and pad shape against your existing brake pads before ordering to ensure proper fitment.

Shop Race Technologies 2416 Brake Pads

Competition Motorsport specializes in high-performance and racing brake components for street cars, track cars, and race vehicles. Select your preferred Race Technologies RE10 or TS20 compound above, or contact our brake specialists for assistance confirming 2416 pad fitment and selecting the best compound for your application.
