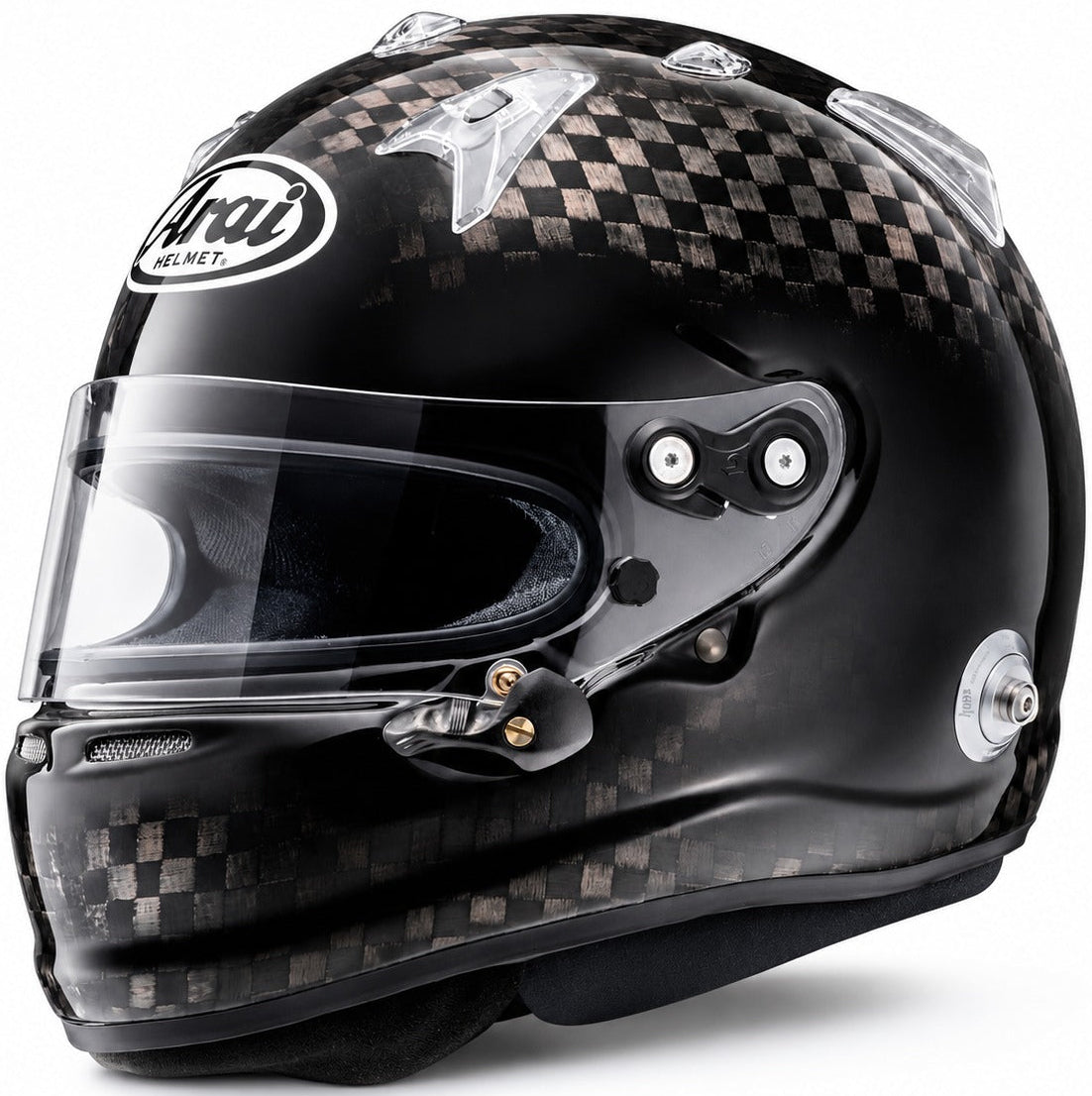

Arai GP-7SRC ABP Carbon Racing Helmet
The Arai GP-7SRC ABP Carbon Racing Helmet represents the highest level of Arai auto racing helmet technology. Designed for professional-level motorsport, the GP-7SRC ABP combines Arai's proprietary racing carbon fiber construction with the enhanced protection required by the FIA 8860-2018 ABP homologation standard.
Developed for the extreme demands of high-level racing, particularly open-cockpit competition, the GP-7SRC ABP incorporates Advanced Ballistic Protection directly into the helmet shell. The result is an exceptionally advanced racing helmet engineered around impact management, lightweight construction, aerodynamics, ventilation, and driver comfort.
FIA 8860-2018 ABP Advanced Ballistic Protection
The Arai GP-7SRC ABP meets the demanding FIA 8860-2018 ABP homologation standard. ABP stands for Advanced Ballistic Protection and adds additional requirements intended to improve protection against debris and objects that may impact the driver's helmet.
The GP-7SRC ABP incorporates its external intrusion protection directly into the forehead area of the helmet shell, making the additional ballistic protection an integral part of the helmet's structure.
Arai Racing Carbon Fiber Shell
Arai uses its proprietary racing carbon fiber construction to deliver exceptional shell strength while maintaining the controlled flexibility required to effectively manage impact energy.
Multiple reinforcing materials are strategically incorporated throughout the shell to increase performance while controlling overall helmet size and weight. Arai's smooth, rounded shell design also supports its glancing-off philosophy, helping the helmet redirect energy by reducing areas that could catch on surrounding surfaces during an impact.
Designed for Open-Cockpit Racing
The GP-7SRC ABP is engineered specifically for the elevated protection requirements associated with open-cockpit race cars. Its carbon fiber shell, integrated ABP protection, aerodynamic profile, and FIA 8860-2018 ABP homologation make it an excellent choice for professional and high-level motorsport applications.
Advanced Racing Helmet Ventilation
The Arai GP-7SRC ABP features an advanced ventilation system designed to help keep drivers cool during demanding race conditions.
- Three large closeable air intake vents
- Enlarged 10mm ventilation openings
- Additional center exhaust vents
- Aerodynamic rear exhaust cowling
The ventilation system can be adjusted around the driver's cockpit configuration and airflow requirements while helping evacuate heat from inside the helmet.
Arai Positive Shield Latch System
The GP-7SRC ABP uses Arai's positive shield latch system to provide secure visor closure while retaining smooth and convenient visor operation.
Updated shield pivot hardware incorporates a one-piece track slider and T20 Torx adjustment system. The lower shield pivot position also increases the smooth shell area above the visor opening, supporting Arai's focus on improved glancing-off performance.
FCS Cheek Pad System
Sculpted FCS cheek pads help provide a secure, encapsulated fit around the driver's lower jaw. The design helps reduce unwanted helmet movement while improving comfort and reducing wind noise at high speeds.
HANS and FHR Ready
Integrated M6 threaded mounting points are built into the GP-7SRC ABP for compatibility with approved HANS and other Frontal Head Restraint systems.
A flat mounting surface surrounds each threaded anchor location so compatible restraint posts can seat properly against the helmet shell.
Eject System Ready
A pre-cut pocket beneath the crown pad allows the GP-7SRC ABP to accommodate an optional Eject emergency helmet removal system without requiring significant modification to the helmet interior.
Drink Tube Compatible
The removable center chin liner simplifies installation of a driver hydration system. Multiple routing options allow the drink tube to be positioned according to driver preference and cockpit configuration.
Arai GP-7SRC ABP Carbon Helmet Features
- FIA 8860-2018 ABP homologated
- Integrated Advanced Ballistic Protection
- Arai proprietary racing carbon fiber shell construction
- Smooth, rounded shell designed around Arai's glancing-off philosophy
- Three large closeable intake vents
- Enlarged 10mm ventilation openings
- Additional center exhaust ventilation
- Aerodynamic rear exhaust cowling
- Arai positive shield latch system
- Low-position shield pivot hardware
- T20 Torx shield adjustment system
- Sculpted FCS cheek pads
- Integrated M6 HANS/FHR mounting provisions
- Eject system ready
- Drink tube compatible
- Available in sizes X-Small through Large
Who Is the Arai GP-7SRC ABP For?
The Arai GP-7SRC ABP is designed for racers who require one of Arai's most advanced professional racing helmets and need the additional debris intrusion protection provided by the FIA 8860-2018 ABP homologation.
It is especially well suited for professional and high-level drivers competing in open-cockpit race cars where additional ballistic protection is required or preferred.
Arai GP-7SRC ABP vs. GP-7SRC
The primary difference between the GP-7SRC and GP-7SRC ABP is the additional Advanced Ballistic Protection.
The standard GP-7SRC is homologated to FIA 8860-2018, while the GP-7SRC ABP meets the enhanced FIA 8860-2018 ABP specification and incorporates the additional forehead intrusion protection required for ABP homologation.
Arai GP-7SRC ABP 8860-2018 Carbon Fiber Helmet Sizing Chart
Questions & Answers
What certification does the Arai GP-7SRC ABP have?
The Arai GP-7SRC ABP is homologated to the FIA 8860-2018 ABP standard.
What does ABP mean?
ABP stands for Advanced Ballistic Protection. The specification adds enhanced protection intended to reduce the risk of injury from debris or other objects striking the driver's helmet, particularly in open-cockpit racing.
What is the difference between the GP-7SRC and GP-7SRC ABP?
The GP-7SRC is homologated to FIA 8860-2018, while the GP-7SRC ABP adds integrated forehead intrusion protection and meets the enhanced FIA 8860-2018 ABP specification.
Is the Arai GP-7SRC ABP compatible with HANS devices?
Yes. The helmet includes integrated M6 threaded mounting provisions for compatible HANS and other Frontal Head Restraint anchor systems.
Can a drink tube be installed?
Yes. The removable center chin liner makes installation and routing of a driver hydration tube easier.
Is the GP-7SRC ABP compatible with an Eject system?
Yes. A pre-cut pocket beneath the crown pad allows installation of an optional Eject emergency helmet removal system.
What sizes are available?
The Arai GP-7SRC ABP is available in X-Small, Small, Medium, and Large.
Can the Arai GP-7SRC ABP be custom painted?
Yes. Care must be taken when painting the helmet, and helmet trim components should not be removed in a way that could affect the helmet's FIA certification.
Does this helmet require a signature for delivery?
Yes. This helmet ships with a signature required for delivery.
