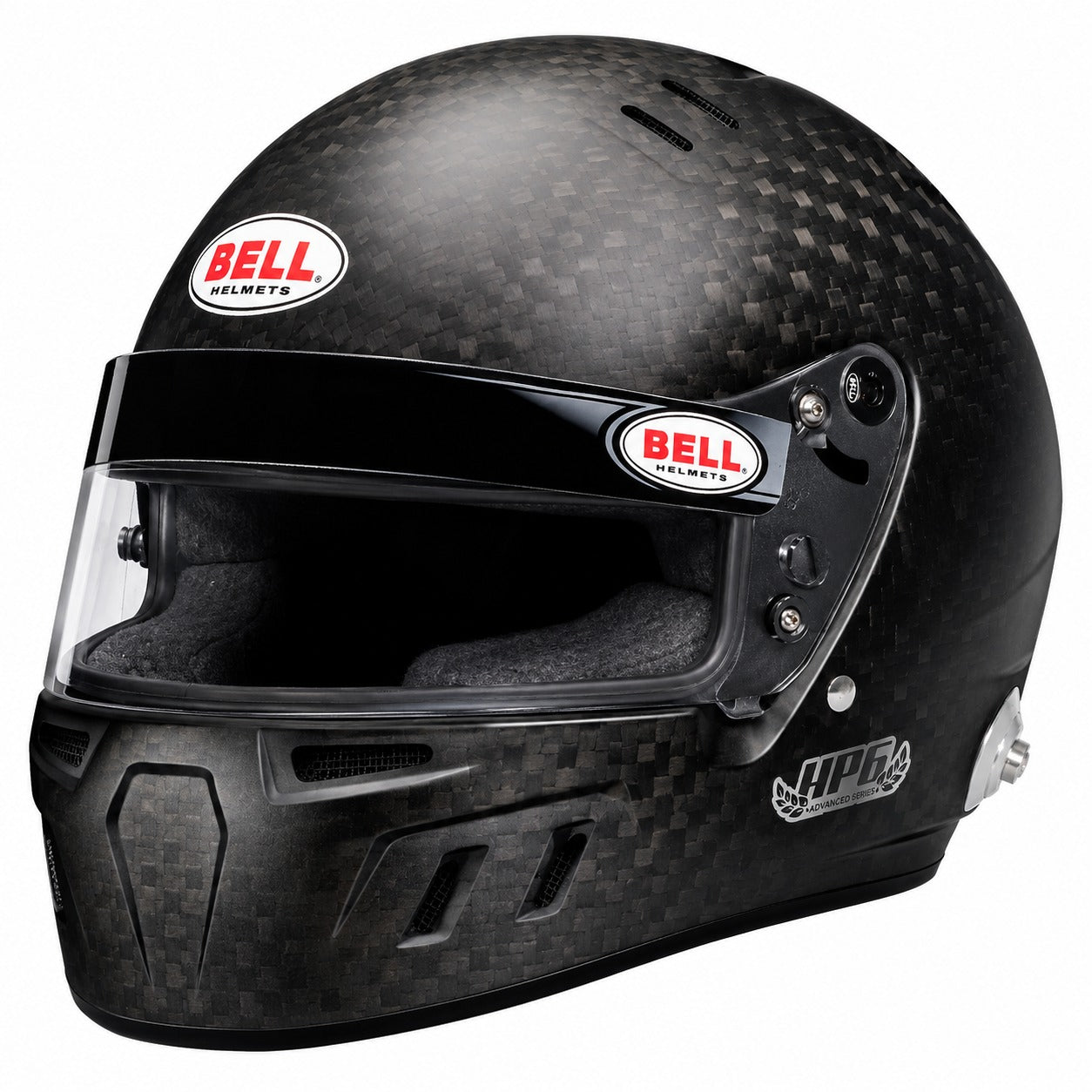

Bell HP6 EVO-II FIA 8860-2018 Carbon Fiber Racing Helmet

The Bell HP6 EVO-II Carbon Fiber Racing Helmet combines advanced carbon fiber construction, professional-level FIA protection, and a wide eye port designed specifically for closed-cockpit racing. Incorporating technology developed for Bell's flagship HP helmet platform, the HP6 EVO-II is homologated to the demanding FIA 8860-2018 standard.

Its ultra-lightweight advanced carbon fiber shell helps reduce helmet weight without sacrificing the protection required for serious competition. Integrated ventilation channels, forced-air compatibility, provisions for communications and hydration systems, and factory-installed HANS anchors make the HP6 EVO-II a highly versatile helmet for professional and competitive racers.

FIA 8860-2018 Carbon Fiber Protection

The Bell HP6 EVO-II uses an advanced full carbon fiber shell engineered to provide exceptional impact protection while keeping weight to a minimum. An advanced multi-density, multi-piece liner works with the carbon shell to manage impact energy during competition.

The helmet is homologated to FIA 8860-2018 and is designed for demanding motorsport applications where advanced protection and lightweight construction are priorities.

Wide Eye Port for Improved Visibility

The HP6 EVO-II features a wide eye port designed to provide an extended field of vision inside closed-cockpit race cars. Improved peripheral visibility helps the driver maintain better awareness of mirrors, competitors, corner entry points, and changing track conditions.

Advanced Ventilation and Forced-Air Capability

Integrated ventilation and extraction openings help circulate air through the helmet and remove excess heat. The upper ventilation slots can also be configured with optional forced-air components connected to an external driver cooling system.

A top forced-air intake can be installed on either the left or right upper ventilation ports. Available Quick Lock V10 forced-air components are also compatible with Maglock systems.

Integrated Communication and Hydration Channels

The Bell HP6 EVO-II incorporates internal channels designed for radio communication wiring and driver hydration systems. These provisions allow compatible electronics, microphone systems, speakers, and drink tubes to be installed while maintaining a clean interior layout.

Optional ear cups can also be installed to provide increased sound insulation for drivers competing in particularly loud closed-cockpit environments.

Bell HP6 EVO-II Carbon Fiber Helmet Features

• FIA 8860-2018 homologated
• Advanced full carbon fiber shell
• Ultra-lightweight professional racing helmet construction
• Matte carbon fiber exterior finish
• Wide eye port for improved driver visibility
• Advanced multi-density, multi-piece impact liner
• Integrated ventilation and extraction openings
• Compatible with optional forced-air cooling systems
• Top forced-air intake can be installed on left or right upper vent
• Quick Lock V10 forced-air options available
• Compatible with Maglock forced-air connections
• Integrated channels for radio communication equipment
• Integrated routing for driver hydration systems
• Optional ear cups available for increased noise insulation
• Factory-installed HANS anchors
• Dark grey high-strength Comfort FR interior
• Alternative interior colors available by special order
• Clear SE06 3mm DSAF shield installed
• Bell HP helmet bag included

Bell HP6 EVO-II Technical Specifications

• Manufacturer: Bell Helmets
• Model: HP6 EVO-II
• Manufacturer Part Number: 11400
• Helmet Type: Full-face closed-cockpit racing helmet
• Shell Material: Advanced carbon fiber
• Exterior Finish: Matte carbon
• Homologation: FIA 8860-2018
• Interior: Dark grey high-strength Comfort FR fabric
• Shield: Clear SE06 3mm DSAF shield
• HANS Anchors: Factory installed
• Forced-Air Compatible: Yes
• Communication System Ready: Yes
• Hydration System Ready: Yes

Optional Interior Colors

The standard HP6 EVO-II interior is finished in dark grey high-strength Comfort FR fabric. Alternative interior colors are available by special order at additional cost.

• Tan
• White
• Red
• Purple
• Blue
• Green
• Neon Yellow

What's Included

• Bell HP6 EVO-II FIA 8860-2018 Carbon Fiber Racing Helmet
• Clear SE06 3mm DSAF shield installed
• Factory-installed HANS anchors
• Plastic tear-off posts installed
• Bell HP helmet bag
• Hex wrench key


Bell HP6 EVO-II Helmet Sizing Chart

Questions & Answers

What certification does the Bell HP6 EVO-II have?
The Bell HP6 EVO-II is homologated to the FIA 8860-2018 motorsport helmet standard.

Is the Bell HP6 EVO-II made from carbon fiber?
Yes. It features an advanced full carbon fiber shell designed to provide professional-level protection while minimizing helmet weight.

Is the Bell HP6 EVO-II designed for closed-cockpit racing?
Yes. The HP6 EVO-II was specifically developed for closed-cockpit competition and features a wide eye port for improved driver visibility.

Does the Bell HP6 EVO-II include a shield?
Yes. A clear SE06 3mm DSAF shield is installed on the helmet.

Does the Bell HP6 EVO-II include HANS anchors?
Yes. Factory-installed HANS anchors are included.

Can the Bell HP6 EVO-II be connected to a forced-air cooling system?
Yes. The upper ventilation ports can be configured with optional forced-air components connected to an external driver cooling system.

Can the forced-air intake be installed on either side?
Yes. The top forced-air intake can be installed on either the left or right upper ventilation opening.

Is the Bell HP6 EVO-II compatible with Maglock?
Yes. Available Quick Lock V10 forced-air components are compatible with Maglock connections.

Can communications be installed in the Bell HP6 EVO-II?
Yes. The helmet incorporates internal channels for compatible radio communication equipment and wiring.

Can a drink system be installed?
Yes. Integrated routing allows the HP6 EVO-II to accommodate compatible driver hydration systems.

Are ear cups available?
Yes. Optional ear cups can be installed to provide additional noise insulation inside loud race cars.

Are different interior colors available?
Yes. Tan, White, Red, Purple, Blue, Green, and Neon Yellow interiors are available by special order at additional cost.

Does the Bell HP6 EVO-II include a helmet bag?
Yes. A Bell HP helmet bag is included.
