Race Technologies P1401 Brake Pads (Rear)

Fitment Guide for Race Technologies P1401 Brake Pads (FMSI D810)

The Race Technologies P1401 brake pad delivers a precision-fit friction solution for high-performance braking systems used in HPDE, track days, club racing, and motorsport competition. Measuring 131.5 mm wide by 68 mm high with a 50.5 mm friction material depth and 19 mm overall thickness, the P1401 features a distinctive backing plate profile and broad, curved friction surface designed for compatible performance brake calipers.

Available from Competition Motorsport in RE10 racing and TS20 street/track compounds, the Race Technologies P1401 allows drivers to select the braking characteristics that match their vehicle, driving style, and operating conditions. From high-temperature endurance racing to occasional track-day use, choosing the correct pad shape and friction compound is essential for consistent braking response and driver confidence.

Race Technologies P1401 Brake Pad Specifications

• Pad Shape: P1401
• Overall Width: 131.5 mm
• Overall Height: 68 mm
• Friction Material Depth: 50.5 mm
• Pad Thickness: 19 mm
• Available Compounds: RE10 and TS20
• Intended Use: HPDE, track days, club racing, sprint racing, and motorsport, depending on compound

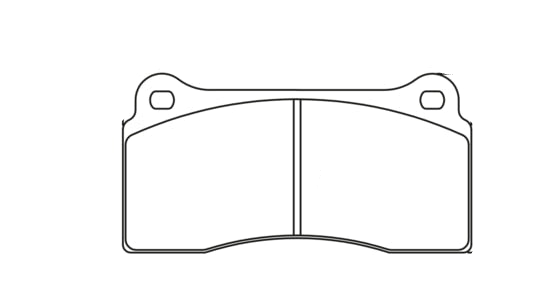

The P1401 features two upper retaining openings, a centrally divided friction surface, a gently arched upper friction edge, and a shallow concave lower profile. Its specific backing plate geometry makes accurate pad identification particularly important when replacing existing brake pads or selecting friction materials for aftermarket performance calipers.

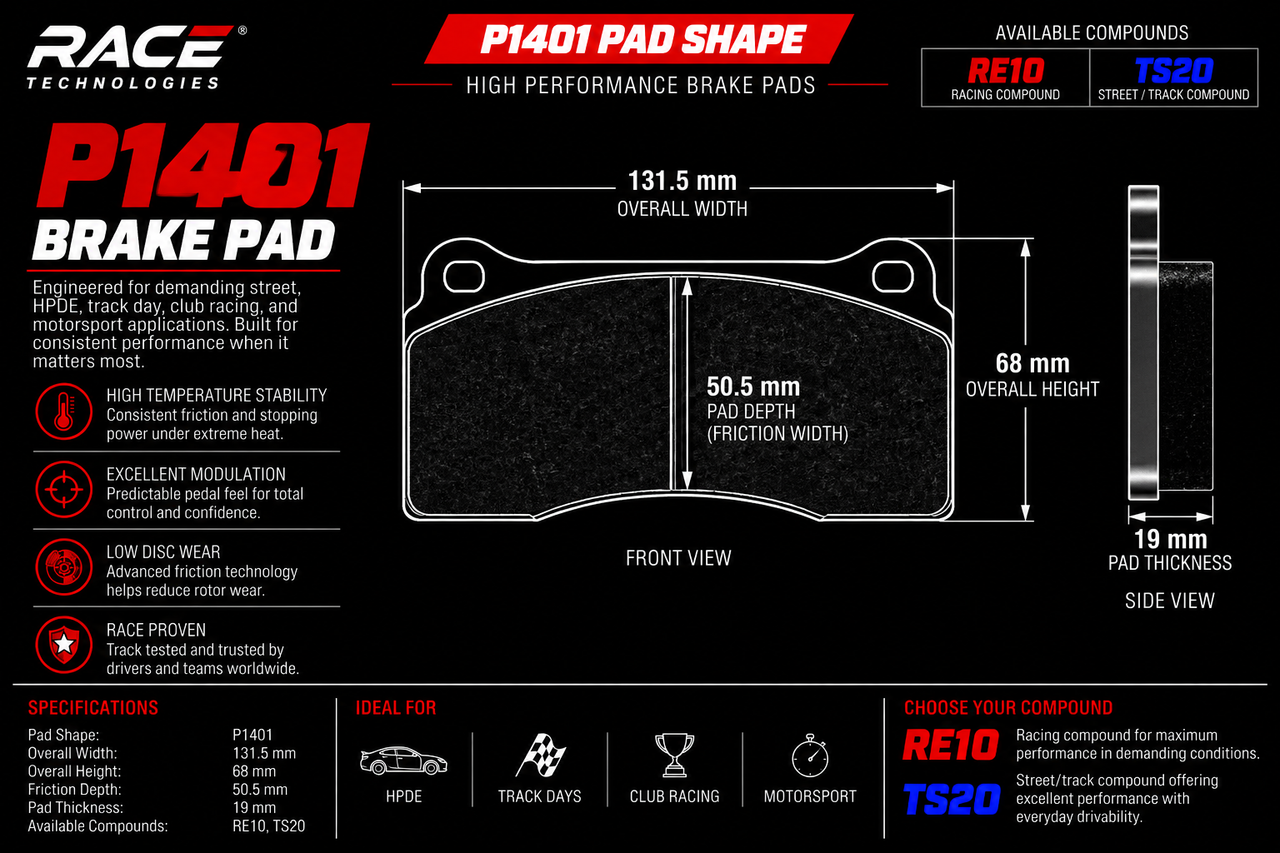

Always compare the P1401 technical drawing and dimensions with your existing brake pads or caliper manufacturer's specifications before ordering.

RE10 Racing Brake Compound

Race Technologies RE10 is an endurance-focused racing friction material developed for demanding track and competition environments. Designed to maintain consistent braking performance under sustained high temperatures, RE10 emphasizes predictable modulation, thermal stability, and low pad and rotor wear.

RE10 is particularly well suited to advanced HPDE, sprint racing, club racing, and endurance competition where repeatable braking performance and durability are priorities. Its consistent friction characteristics help drivers maintain confidence through repeated heavy braking and extended track sessions.

As a competition-focused compound, RE10 is intended primarily for track and racing applications. Increased brake noise and dust may occur during lower-temperature street operation.

TS20 Street and Track Brake Compound

Race Technologies TS20 provides a versatile friction option for performance vehicles used across street and track environments. Designed for responsive initial braking, predictable modulation, and more street-friendly noise and dust characteristics than a dedicated racing compound, TS20 offers an attractive alternative for drivers who want dependable performance without sacrificing everyday drivability.

TS20 is particularly well suited to spirited street driving, HPDE events, and track days where consistent braking response across a range of operating conditions is important.

RE10 vs. TS20: Which Brake Compound Should You Choose?

Both Race Technologies compounds are designed for performance braking, but each targets a different operating environment.

• RE10: Best suited to dedicated track cars, sprint racing, club racing, and endurance competition where sustained high-temperature capability, consistent friction, and durability are priorities.
• TS20: Best suited to performance street cars, HPDE, and dual-purpose street/track vehicles where responsive braking, predictable modulation, and more street-friendly characteristics are important.

Vehicle weight, tire grip, brake cooling, rotor configuration, operating temperatures, and driving style all influence compound selection. Contact Competition Motorsport for assistance choosing the appropriate friction material for your application.

Why Choose Race Technologies P1401 Brake Pads?

The P1401 combines a 131.5 mm overall width with a 68 mm height, 50.5 mm friction material depth, and 19 mm thickness. Its distinctive backing plate and curved friction profile make it a specialized replacement option for compatible high-performance braking systems.

• Distinctive P1401 backing plate geometry with two upper retaining openings
• 131.5 mm overall width and 68 mm overall height
• 50.5 mm friction material depth
• 19 mm overall pad thickness
• Choice of RE10 racing or TS20 street/track compounds

Race Technologies P1401 Brake Pad Fitment

The Race Technologies P1401 pad shape is intended for brake calipers requiring its specific backing plate dimensions, retaining features, and friction material geometry. Proper fitment depends on caliper design, vehicle brake configuration, and required pad thickness.

Before ordering, verify the 131.5 mm width, 68 mm height, 50.5 mm friction material depth, 19 mm thickness, and retaining-hole locations against your existing brake pads or caliper manufacturer's specifications.

Vehicle make and model alone may not establish compatibility, particularly when optional brake packages or aftermarket performance calipers are installed.

Buy Race Technologies P1401 Brake Pads at Competition Motorsport

Competition Motorsport specializes in premium racing brake pads, performance brake components, and motorsport equipment for track-day enthusiasts, club racers, professional race teams, and performance shops.

Select your preferred Race Technologies P1401 RE10 or TS20 compound above, or contact our motorsports specialists for assistance confirming pad fitment and selecting the appropriate friction material for your vehicle.
