AiM Sports
AiM Sports MXT 1.3
$3,199.00

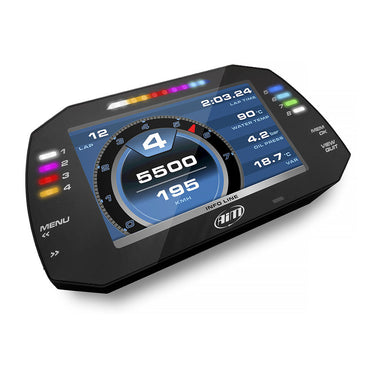

AiM MXT 1.3 Logger with GPS
Ready to elevate your racing game? Meet the AiM MXT 1.3 Logger with GPS – the ultimate data logging dash that transforms your track day into a high-tech mission. This bad boy isn't just a dashboard; it's your new best friend on the circuit.
Features And Benefits
Flexibility and Customization Galore: The AiM MXT 1.3 boasts an extra-large 1280x480 pixel (10" diagonal) TFT display, breaking free from the boring, factory-designed LCDs. Want your data your way? You got it! The customizable screen lets you set up eight different pages with unique designs.
Data Overload (In the Best Way): With eight analog input channels, you can sample, log, and display a wide array of temperatures, pressures, and potentiometers (think throttle and steering positions). And that's just the start. A CAN input allows endless expansion with AiM CAN Data Hubs (sold separately). Connect Lambda (O2) sensors, SmartyCam, or even more channels without using analog inputs!
Ultimate Compatibility: Hook up to multiple ECUs to log any data your engine management system gathers. The MXT 1.3 also includes an internal gyroscope, 3-axis g-sensor, GPS module, four-wheel speed channels, a lap time receiver input, and two digital outputs. It's a data-logging beast that grows with you.
Visual Delight: Housed in a sleek, anodized aluminum frame (10.94" x 5.3"), the 9.6" x 3.6" screen auto-dims to match your environment. Configure ten shift light LEDs and six alarm LEDs to flash in any of seven colors, triggered by your custom conditions. Set shift lights for each gear, choose colors, and more!
Rear-View Magic: An extra port lets you connect analog cameras to use the dash as a backup or rear-view mirror display. Note: this doesn't work with the SmartyCam, but it's perfect for other cameras.
Massive Storage and Easy Downloads: With 4GB of non-volatile memory, store hours of race data for deep dives later. Download everything to your computer using the built-in secure Wi-Fi – no cables needed.
What’s in the Box?
The MXT 1.3 data logging display, wiring harness with a 37-pin Deutsch connector, and the GPS09 module. Note: All sensors are sold separately, and for additional connections, you’ll need the AiM MX-Series Auxiliary Wiring Harness with 22-Pin Deutsch Connector (also sold separately).
Product Specifications:
Display: 1280x480 pixel (10" diagonal) TFT
Housing: 10.94" x 5.3" anodized aluminum
Channels: 8 analog inputs, 1 CAN input
Sensors: Internal gyroscope, 3-axis g-sensor, GPS module, 4 wheel speed channels
Memory: 4GB non-volatile
Connectivity: Secure Wi-Fi, 2 digital outputs
Power Supply: 9 - 15V external
FAQs
Q: Can the MXT 1.3 connect to my car's ECU? A: Absolutely! The MXT 1.3 can connect to a wide range of ECUs to log any data collected by the engine control unit.
Q: How many pages can I customize on the display? A: You can create up to eight different pages, each with its unique screen design.
Q: Do I need a separate power supply? A: Yes, the MXT 1.3 requires a 9 - 15V external power supply.
Q: Is the SmartyCam compatible with the camera input port? A: No, the extra port on the MXT 1.3 is not compatible with the SmartyCam. It’s designed for other analog cameras.
Q: What do I need for additional connections? A: For analog channels 5-8, speed inputs 2-4, digital outputs, and RS232 ECU connection, you’ll need the AiM MX-Series Auxiliary Wiring Harness with 22-Pin Deutsch Connector (sold separately).
Ready to dominate the track? The AiM MXT 1.3 Logger with GPS is your ticket to precision, performance, and endless customization. Don’t just drive – thrive. Grab yours today and leave your competition in the dust!
Call To Action: Don’t wait – gear up for your next race with the AiM MXT 1.3 Logger with GPS. Click "Add to Cart" now and transform your driving experience!
All other sensors and modules sold separately.
AiM Sports
AiM Sports SmartyCam 3 Dual Data Logger Camera
$3,000.00

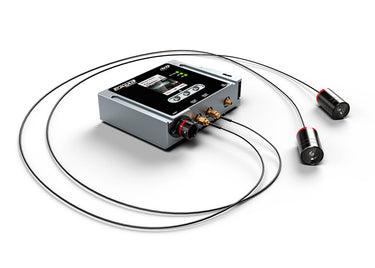

AiM Sports SmartyCam 3 Dual Data Logger Camera
One AiM SmartyCam Is Great, But Two Are Better!
The AiM SmartyCam 3 Dual is a true dual-lens HD motorsports camera and data logger, designed for the extraordinary rigors of race track competition. Taking the best features of the SmartyCam 2.1 and 2.2 GPHD, the SmartyCam 3 Dual brings two full HD images from independent cameras at a resolution of 1920x1080 pixels and a crystal-clear 60 fps.
Dual Motorsports Cameras
The SmartyCam 3 Dual features two separate bullet cameras that are easily placed anywhere in the cockpit with the included 2M (6.6 ft) SMA cables. SMA cables are small, shielded, and feature threaded connections on each end for the best in video data in the harshest of race conditions.
Video Streaming Output
SmartyCam 3 Dual features a video streaming output channel with SDI interface. Your 3G-SDI format video and audio stream is now able to be sent to a data streamer at your choice of 30 or 60 fps. Live data streaming has never been easier.
AiM RaceStudio 3: The Benchmark in Video Racing Analysis
AiM RaceStudio 3 software is included to allow you to customize and configure your overlays in a virtually infinite variety of ways. You can easily add your team logo, sponsor information, track map or graphic objects from a list of pre-determined sets with the same layout or single objects from different sets, This could even be adding your second camera video in Picture-In-Picture mode with your team logo and a track map showing. AiM RaceStudio 3 is powerful and fully customizable for your team and sponsor needs.
Your entire video session can also be split easily. Individual videos of separate laps can now be simultaneously viewed side-by-side to identify best race line and lowest lap time. The "Share And Compare" feature lets you compare video of your best lap alongside your friend's or teammate's personal best. AiM RaceStudio 3 makes lower lap times a whole lot easier to achieve.
Internal Data Logger Built-in
The SmartyCam 3 Dual has a second ECU CAN interface allowing for CAN expansions without the need for an ECU bridge. Both your video and CAN data is stored on a standard removable SD card (not included) with capacity of up to 2TB, with all data stored in the mp4 file format. At the end of your stint or session, your SD card contains all the information you need for a deep data dive, helping you find the tweaks needed for lower lap times.
Designed for the Extremes of Motorsports
The SmartyCam 3 Dual is a true motorsports camera protected by a solid aluminum housing with a hard anodized finish. Built for the rigors of racing with an IP65 waterproof rating, the SmartyCam 3 Dual is at home in your Porsche GT3 Cup, Super Trofeo, TA2 Camaro, F4, or 125cc Shifter Kart. Whatever you drive, you can trust the AiM SmartyCam 3 Dual to get you great video and data.
Automatic Start & Stop
Easy integration and automation with your AiM family of data components. The SmartyCam 3 Dual can be set up to automatically power on, start recording, stop recording, lock your data and video file and power down. Focus on your competition, not your proven data system.
No "Wave Effect" with Global Shutter CMOS
Solid motor mounts, straight cut gearboxes, and high-revving race engines affect most wave type shutter systems found on ordinary action video cameras. If you have ever seen a video that gets wavy and wobbly at high RPMs, you've seen the limits of wave shutters. The AiM SmartyCam 3 Dual uses a solid CMOS Global Shutter to provide quality, crisp, clear videos even in the most aggressive race cars.
High Quality Video in a Small File Size
Optimized video compression in H.264 allows a more compact video file size for the perfect balance of file size and video quality. Full HD is accomplished without the massive file sizes normally required. Championship World Racing League, SRO, and ChampCar teams swap video cards at every practice, qualifying, and race pit stop. This data is only readable after it's uploaded, so the H.264 allows for a faster data download of your driver and vehicle performance as well as vehicle health.
AiM Sports SmartyCam 3 Dual Data Logger Camera Details:
Manufacturer: AiM
Manufacturer part number, 67°: XS3DB6767L2L200
Manufacturer part number, 84°: XS3DB8484L2L200
Manufacturer part number, 120°: XS3DB120120L2L200
Video format: H.264 compression; 1920x1080 pixels @ 60 fps
Display resolution: 2.4 inches, 240x320 pixels
Lens: Low distortion camera lens (x2)
CMOS Sensor: Global shutter
Field-of-view: choose 67°, 84° or 120°
Internal battery: Rechargeable lithium battery
Video out: 3G-SDI
External power: 9V to 15V
Supported MicroSD Card (not included): up to 2TB
Usage temperatures: -10°C to 50°C (14°F to 122°F)
Auto Power On/Off: Yes
Auto Start/Stop Recording: Yes
Body construction: anodized aluminum
Dimensions (main unit): 154.4 x 109.6 x 42.0 mm (6.1 x 4.3 x 1.7 in)
Dimensions (bullet camera): ø 24 mm x 48.2 mm
Connectors: Deutsch 22 pin (x1); SMA SDI Video out (x1); SMA bullet connection (x2); USB-C (x1)
Bullet camera cable length: 2M (6.6 ft)
Weight: main unit, 800g (1.8 lb); bullet camera (each) 45g (1.6 oz)
Waterproof: IP65
AiM Sports
AiM Sports MXG 1.2 Large Color TFT Dash and Data Logger
from $2,899.00

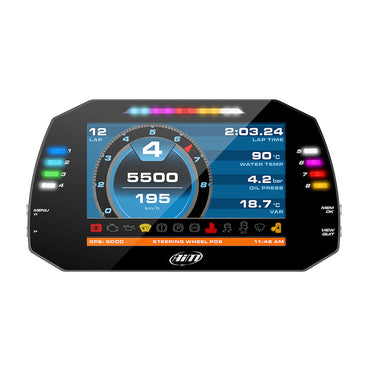

AiM MXG 1.2 Large Color TFT 7" Dash & Data Logger
The AiM MXG 1.2 data-logging dash represents a huge leap forward in racing display flexibility. The brilliant 800x480 pixel, 7.0" color TFT display frees you from the constraints of a single, factory-designed dash display. The MXG shows you the data you want, the way you want in brilliant, high-contrast color.
The MXG 1.2 is a large, brilliant dashlogger designed to acquire and display data coming from your ECU, an internal accelerometer and gyro, the included GPS08 Module, analog/digital inputs and pre-defined math channels. Performance data acquired can be expanded by adding up to eight expansion modules (sold separately). The large 7" high-color display makes it perfect for installation in wider cockpits (like in touring and GT cars).
CONFIGURABLE PAGES
You can define all the custom pages you wish, choosing from a large library of page styles and colors, defining which data you want to see and where (including end of scale and units of measure). Swapping between pages is as easy as pushing one or two buttons!
INPUT/OUTPUT FLEXIBILITY
Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). CAN Inputs allow you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN Output allows you to send messages to the existing CAN network, adding to the vehicle system control possibilities!
The MXG 1.2 can also be connected to many different ECUs to log data gathered by each ECU. An internal three-axis accelerometer, gyroscope, and magnetometer; GPS08 input; four wheel-speed channels; lap time receiver input; and two digital outputs add up to a flexible, expandable data logger that can grow with you. It even has a screw-in port to add analog cameras used for back-up or rear view in visibility-challenged race cars!
ALARMS & SHIFT LIGHTS
Flexible alarms on the MXG 1.2 include six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
The integrated shift light array features a host of advanced multicoloured RGB shift light patterns that can be customized as you like, including RPM max for each individual gear.
DIGITAL OUTPUTS
The MXG 1.2 features two digital outputs (low-side type, switch to ground) that can be configured to activate/deactivate external systems (switch on/off additionallights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.
MEMORY & WIFI CONNECTIVITY
The 4GB non-volatile memory can store hours of information for detailed analysis using AiM's latest Race Studio 3 software. A secure 802.11 WiFi connection makes it even more convenient to configure, calibrate, and download your data wirelessly! No more need to move your PC close to the vehicle, you can do it from your trailer or tow vehicle up to 60 yards away.
FEATURES & SPECS:
9.3" x 5.0" x 1.0" Anodized Aluminum housing
Large 7.0" high-contrast color TFT display
800x480 pixel screen resolution
Internal 4GB memory
Two Motorsports and one Binder connector
Weight 2.1 lbs (950g)
Waterproof IP65
KIT INCLUDES:
MXG 1.2 data logging dash
GPS08 Module with cable
USB cable
wiring harness with 37 pin Deutsch connector
installation CD with Race Studio 3 software
All other sensors and modules sold separately.
AiM Sports
AiM Sports MXP Midsize Color TFT Dash and Data Logger
from $2,599.00
AiM MXP 50% Bigger Display Than MXS In Similar-Sized Package
This brilliant dash logger from AiM features a stunning high-contrast color 6" TFT display, an integrated LED shift array, configurable multicolor LED alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, included GPS08 Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections! That all adds up to an incredibly flexible, powerful, and useable information center at your fingertips in your race car.
WIDE RANGE OF DATA SOURCES
The AiM MXP samples data coming from your ECU, the GPS Module, its internal nine-axis inertial platform (accelerometer, gyro and magnetometer), eight fully configurable analog inputs, six digital inputs, predefined math channels and a second CAN. Performance info and data acquired can be expanded by adding up to eight expansion modules.
CONFIGURABLE PAGES
You can define all the custom pages you wish, choosing from a wide library of page styles, defining which data to be shown, their end of scale and units of measure. Swapping between pages is as simple as pushing one or two buttons!
FLEXIBLE ALARMS AND ICONS
The MXP features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one (and the flashing frequency), choose to have an accompanying text message, and set alarm priorities. You can also choose the street icons you need from a large list in Race Studio 3 - Icons Management, then set them up any way you prefer. They're all fully configurable, and if that's not enough, you can upload and set-up your own customized icons!
TWIN DIGITAL OUTPUTS
MXP features two digital outputs. They can be configured to respond to the analog or digital inputs to automatically run external systems (e.g. to switch on/off additional lights, activate/de-activate a cooling fan or fluid circulation pumps, etc.)
DUAL CAMERA INPUTS
Two analog camera inputs are available to swap your display into a mirror camera or rear-view camera through either push button command or in response to certain programmable events. Especially useful in a race car with limited visibility/sightlines.
SHIFT LIGHT ARRAY
Choose from a host of advanced multicolored RGB shift light patterns that can be customized as you like, including RPM settings for each individual gear.
WiFi CONNECTIVITY
It's so convenient to configure, calibrate, and download your data wirelessly using a secure 802.11 WiFi connection. No need to move your PC close to the vehicle anymore, you can do it from your trailer or tow vehicle up to 60 yards away.
KEY FEATURES & SPECS:
Midsized 6" high-contrast color TFT display
800x480 pixel screen resolution
7.5" x 4.2" x 1.0" anodized aluminum housing
Three CAN connections
15 configurable RGB LEDs
Weight 1.4 lbs (640g)
4GB internal memory
Waterproof IP65
KIT INCLUDES:
AiM MXP dashlogger
GPS08 Module with cable
USB cable
37-pin Deutsch connector harness
Installation CD with Race Studio 3 software
AiM Sports
AiM Sports MXS 1.2 Compact Color TFT Dash And Data Logger
from $2,599.00
AiM MXS 1.2 Color TFT 5" Dash And Data Logger
Check Out The MX Series User Manual Here
The MXS 1.2, the evolution of MXS, is a beautifully executed compact dash/data logger designed to put data at your fingertips. It can acquire data from your ECU, its internal accelerometer and gyro, the included GPS08 Module, analog/digital inputs and pre-defined math channels. The incredibly sharp, full-color TFT display puts it all front-and-center, in incredible color with a high contrast ratio. It even automatically adjusts its backlight based on ambient light to optimize visibility.
Freely configurable pages let you define all the custom pages you wish, choosing from a wide library of page styles and defining which data to display, their end of scale and units of measure. Swapping between pages is as easy as pushing a button!
GPS08
Thanks to the included GPS08 Module and AiM's Race Studio 3 software, you can immediately get lap times along with all data needed for engine tuning, shaking down car and driver, and for improving and refining driving technique.
A MULTITUDE OF DISPLAYS
The MXS 1.2 displays your RPM scale plus all the data you need (speed, water temp, oil pressure, lap times and much more) in pre-configured pages. Or you can customize pages as you wish, choosing from a wide library of page styles and defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using push buttons.
A 4GB non-volatile memory stores hours of information for detailed analysis using AiM's Race Studio 3 software. All data can be downloaded to your computer using a built-in secure Wi-Fi connection (no cable required).
LOTS OF INPUT/OUTPUT FLEXIBILITY
Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). CAN Inputs allow you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN Output allows you to send messages to the existing CAN network, adding to the vehicle system control possibilities!
The MXS 1.2 can also be connected to many different ECUs to log data gathered by each ECU. An internal three-axis accelerometer, gyroscope, and magnetometer; GPS08 input; four wheel-speed channels; lap time receiver input; and two digital outputs add up to a flexible, expandable data logger that can grow with you. It even has a screw-in port to add analog cameras used for back-up or rear view in visibility-challenged race cars!
SHIFT LIGHTS & ALARMS
Flexible alarms on the MXS 1.2 include six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
The integrated shift light array features a host of advanced multicoloured RGB shift light patterns that can be customized as you like, including RPM max for each individual gear.
DIGITAL OUTPUTS
The MXS 1.2 features two digital outputs (low-side type, switch to ground) that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.
WiFi CONNECTIVITY
A secure 802.11 WiFi connection makes it even more convenient to configure, calibrate, and download your data wirelessly! No need to move your PC close to the vehicle anymore, you can do it from your trailer or tow vehicle up to 60 yards away.
TECHNICAL SPECS:
Compact 6.7" x 3.8" x 0.9" anodized aluminum housing
5" TFT high-contrast color display
Internal 4GB memory
Screen resolution 800x480 pixels
Two Motorsport connectors and one Binder connector
Weight 1.2 lb. (530g)
Waterproof IP65
KIT INCLUDES:
MXS 1.2 Unit
GPS08 Module with cable
USB cable
37-pin standard Deutsch-connector harness
Software installation CD with Race Studio 3 software.
All other sensors and modules sold separately.
AiM Sports
AiM Track Day Kit SmartyCam 3 Sport + Solo 2 DL
$2,095.00
AiM Track Day Kit SmartyCam 3 Sport + Solo 2 DL
Attention all auto racing enthusiasts! Elevate your track day experience with the ultimate racing companion: the AiM SmartyCam 3 Sport & Solo 2 DL with Double Bracket Track Day Kit. Engineered for performance, precision, and convenience, this innovative system combines the cutting-edge video technology of the SmartyCam 3 Sport and the rich data-logging of the Solo 2 DL into a double-bracket setup, ensuring you capture every heart-pounding moment on the track.The SmartyCam 3 Sport boasts unparalleled video quality, capturing crystal-clear footage of your racing endeavors in stunning HD. With its advanced data overlay capabilities, you can analyze crucial metrics such as speed, lap times, G-forces, and more, providing invaluable insights to help you fine-tune your driving technique and shave seconds off your lap times. Whether you're a seasoned racer or just starting out, the SmartyCam 3 Sport Sport empowers you to take your performance to the next level.Paired with the Solo 2 DL, a powerful GPS lap timer and data logger, this bundle offers comprehensive data analysis to optimize your racing performance. With its intuitive interface and customizable display options, the Solo 2 DL provides real-time feedback on your driving metrics, allowing you to make instant adjustments and maximize your track day experience. Plus, with the included double bracket trackday kit, you can easily mount both devices in the optimal position for capturing every angle of the action.Don't settle for anything less than the best when it comes to recording and analyzing your track day performance. Invest in the AiM SmartyCam 3 Sport & Solo 2 DL with Double Bracket Track Day Kit and unleash your full potential. Whether you're chasing podium finishes or simply seeking to improve your skills, this top-of-the-line system is the ultimate tool for any serious racer.
Gear up, hit the track, and let the SmartyCam 3 Sport & Solo 2 DL elevate your racing experience to new heights.
AiM Track Day Kit SmartyCam 3 Sport + Solo 2 DL Details:
Manufacturer: AiM Technologies Group
Manufacturer part number, 67º FOV: SM-SOLO2-KIT-67-X99SHD6796G2DL
Manufacturer part number, 84º FOV:
SM-SOLO2-KIT-84-X99SHD8496G2DL
Solo 2 DL connection: OBD2
SmartyCam 3 lens field-of-view: 67º or 84º
Included mount carries both devices: Yes
Suction cup mount included: Yes
Includes necessary cables: Yes
AiM Solo 2 DL w/ OBD2 Details:
Manufacturer: AiM Technologies Group
Manufacturer part number: X47SOLO2DL01U0
Display: Graphical
Display resolution: 128 x 64 pixels
Display pages: Up to eight, freely configurable
Backlight: Seven RGB colors to choose from
Shift lights/alarm LEDs: 10 user-configurable RGB LEDs
Integrated track database: Yes
Inertial platform: Internal three-axis 5G accelerometer + three-axis gyro + three-axis magnetometer
WiFi connection: Yes
GPS sampling rate: 10Hz
ECU connection: Yes, via included OBD-2 cable
Connectors: one socket (binder) 712, 5-pins; one socket (binder) 712, 8-pins
Internal memory: 4 GB
Battery type: Lithium rechargeable
Push-buttons: Metallic
Dimensions: ~ 98 x 74 x 30 mm (~ 3.9 x 2.9 x 1.2 in)
Weight: 240 g (8.5 oz), internal battery included
Waterproof: IP67
AiM Solo 2 DL Technology:
GPS: uses both GPS and Glonass, allowing faster power-up
Lap accuracy: < 0.02 sec tolerance
Backlight: seven color options
Auto learning: on a new race track, the AiM Solo 2 DL will auto-learn the course
RGB LEDs: user-configurable
Recall: on-screen data recall for easy quick-review
Wi-Fi: download to laptop via Wi-Fi
iPhone connection: data download to your iPhone
Seven Backlight Colors to Choose From
Configurable RGB LEDs Are User-Programmable
Over 4,000 World Tracks Fully Loaded
The AiM Solo 2 DL has access to over 4,000 race tracks from all over the world. As soon as you turn it on at the track, your Solo 2 DL identifies your exact position, recognizes the official track starting-line coordinates, and prepares to auto-record your lap times.
Solo 2 DL - SmartyCam Smart Integration and Control
Your Solo 2 DL will seamlessly control the connected SmartyCam 3 Sport with no need for driver inputs. Your Solo 2 DL does all the work! This integration also makes it simple to overlay your engine and performance data directly into your on-track videos.
Race Mode Selection
The amazing AiM Solo 2 DL can manage four different types of racing:
Closed-circuit races (e.g., road race, circle track)
Point-to-point races like hill climbs or autocross
Performance tests such as 0-60mph, 0-100-0mph featuring user-programmable to custom fields
User-customized area or course
WiFi Download
Download via WiFi to any WiFi-enabled device
No cables to lose or forget at home
Download to Race Studio 3 quickly and easily
On-Screen Data Recall
Post-session review right out of the car
Perfect for driver coaches
Compilation of your most important data fields

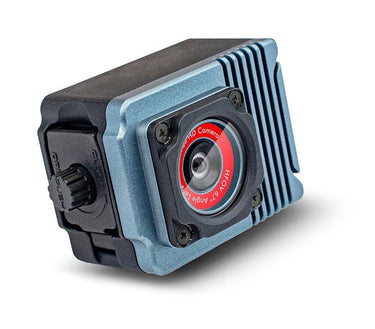

AiM SmartyCam 3 Sport Changes Race Car Video Forever
SmartyCam 3 Sport has been designed to minimize the problem of image distortion (the dreaded wave effect) with its global shutter CMOS sensor. The camera shutter captures the entire image all at once, resulting in images that are not affected by the vibration of high-speed driving on track.
The SmartyCam 3 Sport Sport has a choice of low-distortion lenses with a fields-of-view of either 67º (perfect for closed-cockpit cars) or 84° (wider for open-cockpit and open-wheel cars).
AiM SmartyCam 3 Sport Video Camera Details:
Manufacturer: AiM Technologies Group
Manufacturer part number, 67º FOV:
XS3S674U
Cable included length: 4M
Cable included end #1: 5 pin 712 male
Cable included end #2: 5 pin 712 male
Cable connection on camera: 5 pin 712 female
Audio: Internal microphone inside the camera housing
The AiM SmartyCam 3 Sport automatically overlays videos with the data you need: speed, RPM, lap number, gear shifts, and much more. Simply choose the data and graphical layout you prefer from AiM's huge selection of overlay styles.
Even More Data From The AiM Solo 2 DL
Through your AiM Solo 2 DL, the SmartyCam 3 Sport can also overlay ECU data such as RPM, throttle position, engaged gear, acceleration, temperatures and pressures, and a bevy of other data from any added sensors you have installed. All the info you choose is overlayed on videos at every single point of the track.
AiM's SmartyCam 3 Sport integrates seamlessly with Race Studio 3, the powerful software that lets you configure and edit all the details of your race videos. Race Studio 3 makes it easy to maximize the fun and information you get out of reviewing your race.
You can customize your videos in virtually unlimited ways. Add your team or shop logo, add graphical objects from a long list of pre-built sets, even mix-and-match objects from different sets. Your videos will be truly be yours down to the last detail!
Post-Race Video Analysis Helps You Get Faster
Download the video of a whole session to your PC and, with a simple click, split it into individual videos of each lap. Race Studio 3 lets you watch two laps side-by-side to see where you're faster or slower. In fact, you can simultaneously watch any two SmartyCam lap videos (recorded on the same track). So you can compare your best laps from different days, with different drivers, and so on!
A Motorsports Camera Is Not Just A Camera
A video camera and lens specifically designed for motorsports must be robust, maintaining excellent picture stability, resolution and brightness despite the high speeds, vibration and noise inherent in racing.
Above all, a lens designed for motorsports must avoid the image distortion typical of lenses used by generic action-cameras where objects at just 10 meters distance can look far away. This makes it nearly impossible to accurately review race videos.
The AiM SmartyCam 3 Sport features a telecentric lens with six elements to reduce distortion to a minimum and will withstand race track vibration and abuse for years. AiM offers lenses with different fields-of-view to give your videos tailor-made framing in all kinds of vehicles.
AiM Sports
AiM Trackday Kit SmartyCam HD 67 Lens + Solo 2 DL (GT Car)
$2,088.00
AiM Trackday Kit SmartyCam HD 67º Lens + Solo 2 DL USA
The AiM Trackday Kit features an AiM Solo 2 DL, a SmartyCam HD Rev 2.1 with a 67º lens, a suction cup mount that holds both devices, and all the cables necessary to get it all working together properly.
What are the differences between the AiM Solo 2 and the AiM Solo 2 DL?
The DL stands for engine and vehicle data download. If you have a modern vehicle, your AiM Solo 2 DL can extract your engine and chassis data and extrapolate that information for a better understanding of not just driver performance, but vehicle performance and health.
AiM Trackday Kit SmartyCam HD 67º Lens + Solo 2 DL USA Details:
Manufacturer: AiM Technologies Group
Manufacturer part number: X99SHD6796U2DL
Solo 2 DL connection: OBD2
SmartyCam HD lens field-of-view: 67º
Included mount carries both devices: Yes
Suction cup mount included: Yes
Includes necessary cables: Yes
AiM Solo 2 DL w/ OBD2 Details:
Manufacturer:
AiM Technologies Group
Manufacturer part number: X47SOLO2DL01U0
Display: Graphical
Display resolution: 128 x 64 pixels
Display pages: Up to eight, freely configurable
Backlight: Seven RGB colors to choose from
Shift lights/alarm LEDs: 10 user-configurable RGB LEDs
Integrated track database: Yes
Inertial platform: Internal three-axis 5G accelerometer + three-axis gyro + three-axis magnetometer
WiFi connection: Yes
GPS sampling rate: 10Hz
ECU connection: Yes, via included OBD-2 cable
Connectors: one socket (binder) 712, 5-pins; one socket (binder) 712, 8-pins
Internal memory: 4 GB
Battery type: Lithium rechargeable
Push-buttons: Metallic
Dimensions: ~ 98 x 74 x 30 mm (~ 3.9 x 2.9 x 1.2 in)
Weight: 240 g (8.5 oz), internal battery included
Waterproof: IP67
AiM Solo 2 DL Technology:
GPS: uses both GPS and Glonass, allowing faster power-up
Lap accuracy: < 0.02 sec tolerance
Backlight: seven color options
Auto learning: on a new race track, the AiM Solo 2 DL will auto-learn the course
RGB LEDs: user-configurable
Recall: on-screen data recall for easy quick-review
Wi-Fi: download to laptop via Wi-Fi
iPhone connection: data download to your iPhone
Seven Backlight Colors to Choose From
Configurable RGB LEDs Are User-Programmable
Over 3,000 World Tracks Fully Loaded
The AiM Solo 2 DL has access to over 3,000 race tracks from all over the world. As soon as you turn it on at the track, your Solo 2 DL identifies your exact position, recognizes the official track starting-line coordinates, and prepares to auto-record your lap times.
Solo 2 DL - SmartyCam Smart Integration and Control
Your Solo 2 DL will seamlessly control the connected SmartyCam HD with no need for driver inputs. Your Solo 2 DL does all the work! This integration also makes it simple to overlay your engine and performance data directly into your on-track videos.
Race Mode Selection
The amazing AiM Solo 2 DL can manage four different types of racing:
Closed-circuit races (e.g., road race, circle track)
Point-to-point races like hill climbs or autocross
Performance tests such as 0-60mph, 0-100-0mph featuring user-programmable to custom fields
User-customized area or course
WiFi Download
Download via WiFi to any WiFi-enabled device
No cables to lose or forget at home
Download to Race Studio 3 quickly and easily
On-Screen Data Recall
Post-session review right out of the car
Perfect for driver coaches
Compilation of your most important data fields
AiM SmartyCam HD Rev.2.1 Changes Race Car Video Forever
AiM started with the original game-changing SmartyCam. When the SmartyCam grew to include HD, the already loved features remained while new capabilities were added. The latest iteration is AiM's class-leading SmartyCam HD Rev 2.1. The culmination of every motorsports video camera system AiM has produced. To ordinary adventure camera systems, sorry...check and mate!
AiM SmartyCam HD Rev. 2.1 Video Camera Details:
Manufacturer: AiM Technologies Group
Manufacturer part number, 67º FOV: X98SHD04J6721
Manufacturer part number, 84º FOV: X98SHD04J8421
Connection to dash harness/data hub: SmartyCam seven-pin female
Connection cable has 3.5mm female jack for connecting an external microphone or radio
The AiM SmartyCam HD Rev 2.1 automatically overlays videos with the data you need: speed, RPM, lap number, gear shifts, and much more. Simply choose the data and graphical layout you prefer from AiM's huge selection of overlay styles.
What Kind of Data Can Be Overlayed?
The AiM SmartyCam HD Rev 2.1 overlays data from different sources onto the videos themselves. GPS track map and vehicle position, speed, lap and split times.
Through your AiM Solo 2 DL, the SmartyCam HD Rev 2.1 can also overlay ECU data such as RPM, throttle position, engaged gear, acceleration, temperatures and pressures, and a bevy of other data from any added sensors you have installed. All the info you choose is overlayed on videos at every single point of the track.
AiM's SmartyCam HD Rev 2.1 integrates seamlessly with Race Studio 3, the powerful software that lets you configure and edit all the details of your race videos. Race Studio 3 makes it easy to maximiz the fun and information you get out of reviewing your race.
You can customize your videos in virtually unlimited ways. Add your team or shop logo, add graphical objects from a long list of pre-built sets, even mix-and-match objects from different sets. Your videos will be truly be yours down to the last detail!
Post-Race Video Analysis Helps You Get Faster
Download the video of a whole session to your PC and, with a simple click, split it into individual videos of each lap. Race Studio 3 lets you watch two laps side-by-side to see where you're faster or slower. In fact, you can simultaneously watch any two SmartyCam lap videos (recorded on the same track). So you can compare your best laps from different days, with different drivers, and so on!
A Motorsports Camera Is Not Just A Camera
A video camera and lens specifically designed for motorsports must be robust, maintaining excellent picture stability, resolution and brightness despite the high speeds, vibration and noise inherent in racing.
Above all, a lens designed for motorsports must avoid the image distortion typical of lenses used by generic action-cameras where objects at just 10 meters distance can look far away. This makes it nearly impossible to accurately review race videos.
The AiM SmartyCam HD Rev 2.1 features a telecentric lens with six elements to reduce distortion to a minimum and will withstand race track vibration and abuse for years. AiM offers lenses with different fields-of-view to give your videos tailor-made framing in all kinds of vehicles.
AiM Sports
AiM Track Day Kit SmartyCam HD 84 Lens + Solo 2 DL (Formula Car/Bike)
$2,088.00
AiM Trackday Kit SmartyCam HD 84 Lens + Solo 2 DL
The AiM Trackday kit features a Solo 2 DL, SmartyCam HD Rev 2.1, a suction cup mount that holds both devices, and the associated cables to allow each device to function properly.
AiM Trackday Kit SmartyCam HD 84 Lens + Solo 2 DL USA Details:
Manufacturer: AiM Technologies
Manufacturer Part Number: X99SHD8496U2DL
Solo 2 DL Connection: OBD2
SmartyCam HD Lens Angle: 84
Included mount carries both devices: Yes
Suction Cup mount included: Yes
Included needed cables: Yes
What are the differences between the AiM Solo 2 and the new AiM Solo 2 DL?
The DL stands for engine and vehicle data download. If you have a modern vehicle, your AiM Solo 2 DL can extract your engine and chassis data and extrapolate that information for a better understanding of not just driver performance, but vehicle performance and health.
AiM Solo 2 DL Details:
Manufacturer: AiM
Manufacturer base part number: X47SOLO2001U0
Manufacturers part number Solo 2 DL with OBD2 cable: X47SOLO2DL01U0
Display: Graphical
Display resolution: 128 x 64 pixels
Display pages: Up to 8 freely configurable
Backlight: 7 configurable RGB colors
Shift lights/alarm LEDs" 10 configurable RGB LEDs
Integrated track database: Yes
Inertial platform: Internal 3 axis 5G accelerometer + 3 axis gyro + 3 axis magnetometer
WiFi connection: Yes
GPS sampling rate: 10Hz
ECU connection: Yes, 3 available
Connectors: 1 socket (binder) 712, 5-pins, 1 socket (binder) 712, 8-pins
memory: 4 GB
Battery type: Lithium rechargeable
Pushbuttons: Metallic
Dimensions: 98.0 x 73.7 x 30.2 mm
Weight: 240 g, internal battery included
Waterproof: IP67
AiM Solo 2 DL Improvements:
GPS: Ability to use both GPS and Glonass allowing for faster power-up
Lap accuracy: with up to 2/100 sec of tolerance
Backlight: 7 color options
Auto Learning: If you are at a new track, the AiM Solo 2 will auto-learn the course
RGB LEDs: RGB (Red/Blue/Green) LEDs are user-configurable
Recall: On-screen data recall for an easy quick review
Wi-Fi: Download via Wi-Fi without cables
iPhone connection: Data download to your iPhone
Choose from 7 backlight colors for a perfect display
Configurable RGB LEDs for predictive lap times or your custom information
Fully loaded database of over 3,000 world tracks
The AiM Solo 2 DL has access to over 3,000 tracks from all over the entire globe. As soon as you turn your Solo 2 DL on, the internal processors self identify your exact position and recognizes the official track starting line coordinates and prepares for auto-recording of your lap times.
SmartyCam Control
Put your engine and performance data directly onto your SmartyCam HD video
Complete SmartyCam HD Control
Seamless full camera control with no additional driver inputs, your Solo 2 DL does all the work
Race Mode Selection
AiM Solo 2 DL can manage 4 different types of racing:
Speed races in a closed circuit (road race/circle track)
Point to point races: Hill Climbs, Autocross
Regularity: Your custom area
Performance tests: 0-60mph, 0-100mph user-programmable to custom fields
WiFi Download
Download via any WiFi device
No cables to lose or leave at home
Download to Race Studio 3 fast and easy
iPhone Connectivity
Easy, fast true data analysis
Manage your track database
View engine parameters
On-Screen Data Recall
Post-session easy review
Perfect for driver coaches
compilation of your most important data fields
We have been amazed (and faster) with the information the AiM Solo 2 DL provided and we welcome the newest addition, and feature-packed AiM Solo 2 DL to our AiM data logging line. Thank you AiM for making data logging and analysis easy.
SmartyCam HD Rev.2.1 By AiM Changes Racecar Video Forever. AiM started with the game-changing SmartyCam original (grey unit). When the SmartyCam grew again to the HD (black box) the already loved features remained and even a few more were added. Now we present the SmartyCam HD Rev.2. The culmination of every video camera AiM has produced. Other cameras systems sorry...Check and Mate
AiM SmartyCam HD Rev. 2.1 Video Camera With Video Overlay Details:
Manufacturer: AiM
Manufacturer part number: 67 X98SHD04J6721
Manufacturer part number: 84 X98SHD04J8421
Alternate part number: AIM-MC-549-Rev2.1
Cable included length: 4M
Connection on camera to dash harness or data hub: SmartyCam 7 pin female
Connection cable has available 3.5mm female jack for an external microphone or radio connection
SmartyCam HD Revision 2.1 automatically overlays on videos all the data you need: speed, RPM, lap number, gear shifts, and much more. Simply choose the data and the graphic layout you prefer in the huge selection of overlays available.
What Kind of Data:SmartyCam HD overlays data from different sources on the videos themselves. From GPS: track map and vehicle position, as well as speed, lap and split times. From AiM logger connected to your ECU: RPM, throttle, engaged gear, acceleration, temperatures, pressures, and - in presence of additional sensors - also their values. All this info will be overlayed on videos in every single point of the track.
SmartyCam HD uses the newest Race Studio 3, the powerful software which allows you to configure all details of your videos and to get plenty of fun and information out of them.
You can configure your overlays in a virtually infinite variety of modes: add your logo and the track map, and choose your graphic objects from a list of pre-determined sets with the same layout or even single objects from different sets. Your videos will be "yours" in all details, from the data to their graphic layouts
Video analysisThe video of a whole session once downloaded on your PC, can now be split - with a simple click - in individual videos of each lap: so that you can simultaneously watch two of them and check where you were faster or slower. The same operation can be performed with any SmartyCam HD video recorded on the same track: you will be able to compare your best lap with your friends' personal best!
A lens specifically designed for Motorsports must be robust, must be able to work when the engine rolls 100 times per second, and have good resolution and brightness. But above all a lens designed for motorsports must reduce distortion, which is a typical problem of lenses used by generic action-cameras: objects placed at ten meters' distance look very far, making it impossible to accurately determine whether the track is straight or curved.
SmartyCam HD telecentric lens with six elements reduces distortion to the minimum and will withstand track vibrations for years. Moreover, the lenses with different HFOV's allow a tailor-made framing in all kinds of vehicles.
AiM Sports

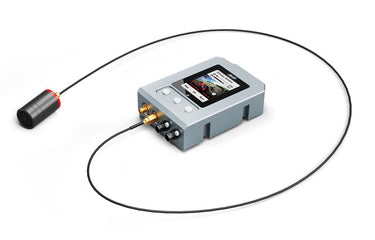

Aim SmartyCam 3 GP
$1,899.00
AiM Sports SmartyCam 3 GP
The all-new SmartyCam 3 GP camera has been designed for motorsport with a single purpose: to provide great videos incorporating all the info and data you need. The AiM SmartyCam 3 GP camera overlays all the data from both GPS and AiM loggers connected to your ECU. It's a full HD camera system with video output, CAN connection, USB-C connection, and a GPS port as only a few of its features. AiM SmartyCam 3 GP: the power of simplicity.
Perform Video Lap Analysis With AiM Analysis 3
With the AiM SmartyCam 3 GP and AiM Analysis 3 software, the video of a whole race, stint, or session can be downloaded on your PC and, with a simple click, can now be split into individual videos of each lap! This lets you simultaneously watch two laps side-by-side, seeing where you were faster or slower.
The same operation can be performed with other drivers' SmartyCam 3 video recorded on the same track. You will be able to compare your best lap with theirs, giving you a powerful tool to refine racing lines, braking points, etc.!
Automatic Race Track Selection
The AiM SmartyCam 3 GP automatically recognizes the track you're racing on, easily drawing it out and calculating lap number, lap times and rolling times.
Automatic Data and Video Synchronization
Simply import the video file and racing data from your AiM logger and AiM's amazing software will automatically synchronize your position on the track, video frame, and race data on the graphical display. Your video and the most important data are saved simultaneously in the same mp4 file.
AiM SmartyCam 3 GP Details:
Video format: H.264 compression; 1920x1080 pixels @ 60 FPS
Display resolution: 2.4-inch, 240 x 320 pixels
Lens: Low distortion camera lens
CMOS sensor: Global Shutter
Field-of-view: 67°, 84°, or 120°
Internal battery: Rechargeable lithium battery
Video Out: 3G-SDI
External power: 9V to 15V
Supports SD card: up to 2 TB (SD card not included)
Connectors: two Binder 712 female connectors; two SMA female connector; one USB-C
Usage temperatures: -10°C to 50°C (14ºF to 122ºF)
Auto Power ON: Yes
Auto Power OFF: Yes
Auto Start/Stop recording: Yes
Body construction: anodized aluminum
Dimensions (main unit): 120.8 x 80.2 x 30.9 mm (4.75 x 3.25 x 1.25 in)
Dimensions (bullet camera): ø 24mm x 41mm (67° & 84° lens); ø 24mm x 46mm (120° lens)
Bullet cable length: seven different lengths available from 0.5m to 4m (1.6 ft to 13.1 ft)
Weight: main unit, 320g (11 oz); bullet camera 45g (1.6 oz)
Waterproof: IP65
AiM Sports

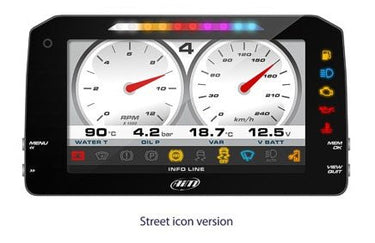

AiM Sports MXG 1.3 Strada Large Color TFT Dash
$1,599.00
AiM MXG 1.3 Strada Color TFT Dash
The Full-Size Color TFT Dash For Road Use
MXG 1.3 Strada ("street" in Italian) is a beautifully-designed, feature-rich color digital dash display. It is basically the MXG 1.3 without the datalogging function. The MXG 1.3 Strada features a wide 7" High Contrast TFT color screen with great visual impact, configurable to show lap times, RPM, and a huge range of info coming from your Engine Control Unit, analog/digital inputs, pre-defined math channels and an optional GPS08 Module. Programmable multicolor shift and alarm LEDs round out an incredibly powerful package.
The MXG 1.3 Strada displays your RPM, selected gear, speed, plus all the data you choose (water temp, oil pressure, trans temp, lap times and much more) in either pre-configured or user-customized pages. Swapping between pages is as easy as pushing buttons. Plus the MXG 1.3 Strada puts a huge amount of control over your car's systems at your fingertips. There's even a version with "Street Icon" LEDs instead of the traditional "plain" LEDs!
INPUT & OUTPUT FLEXIBILITY
Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). Available only in a CAN/RS232 version for the maximum level of customization and data access.
The CAN input allows you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN output allows you to send messages to your car's existing CAN network, adding to the vehicle system control possibilities!
ALARMS & SHIFT LIGHTS
The ten multicolored RGB shift lights can be customized to define the max RPM for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them to turn on/off depending on analog or digital inputs, ECU values, expansion values, math channels or GPS information (with the optional GPS08). You choose conditions, colors, and select a solid alarm or flashing one (including flash frequency). It's also possible to configure an accompanying text message.
DIGITAL OUTPUT
The MXG 1.3 Strada features a low-side (switch to ground) digital output that can be configured to activate/deactivate external systems (switch on/off additionallights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.
RACE STUDIO 3
MXG 1.3 Strada is configured using your PC and Race Studio 3. You can create, customize, delete, import and export configurations with all channels, ECU drivers, Math Channels, Display Pages, Digital Output, Alarms, Shift Lights and all the expansions you need.
AiM MXG 1.3 STRADA TECHNICAL SPECS:
9.3" x 5.0" x 1.0" anodized aluminum housing
Large 7.0" high-contrast color TFT display
800x480 pixel screen resolution
Weight: 2.1 lbs (950g)
Waterproof: IP65
KIT INCLUDES:
MXG 1.3 Strada digital dash
USB cable
14-pin standard wiring
23-pin connector + contacts
Installation CD with Race Studio 3 software
All sensors and modules sold separately.
AiM Sports

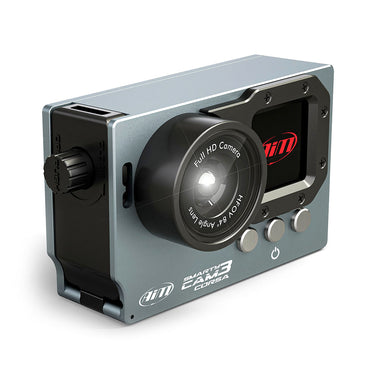

AiM SmartyCam 3 Corsa
$1,399.00
AiM Sports SmartyCam 3 Corsa
Introducing the upgraded SmartyCam 3 Corsa, the newest iteration of the AiM SmartyCam HD. This enhanced version takes the well-known design to new heights, featuring an improved Global Shutter and the ability to capture video at up to 60 frames per second. Unlike conventional action cameras that cater to various extreme activities like skydiving or riding monstrous waves, the SmartyCam HD is meticulously crafted by dedicated motorsports enthusiasts who live and breathe the racetrack. Its narrow angle lens is specifically tailored for seamless mounting in sedans and sports cars, neatly fitting within the A-pillars for optimal placement. The new SmartyCam 3 Corsa camera has been designed for motorsport with a single purpose.
Get The Best Motorsports Videos With Amazing Data Overlays
The AiM SmartyCam 3 Corsa camera overlays all the data from both GPS and AiM loggers connected to your ECU.
The Motorsports Camera With A Full Data Logger Built In
All data received by the AiM SmartyCam 3 Corsa from both the CAN bus and its own internal sensors are recorded in mp4 files produced at the end of your stint or session. Your SD (or Micro SD) card contains all the information you need for a deep data analysis. (SD and Micro SD cards sold separately.)
The video of a whole session, once downloaded on your PC, can now be split with a simple click into individual videos of each lap. So now you can simultaneously watch two side-by-side to see where you were faster or slower.
The same operation can be performed with a SmartyCam 3 Sport video recorded on the same track. You'll be able to compare your best lap with other drivers, other set-ups, and so on!
The Only HD Camera Built for the Punishment of Motorsports
An on-board or in-car camera designed for motorsport must guarantee great resilience and reliability in the extreme working conditions typical of racing, and against the most adverse weather.
That's why the AiM SmartyCam 3 Corsa is IP65 waterproof. Constructed from machinery-molded aluminum, PA fiberglass reinforced and featuring a sapphire frontal lens glass, the SmartyCam 3 Corsa is built like a tank.
The Convenience and Ease of Auto Stop and Start
You have other things to think about while you're at the race track, and the AiM SmartyCam 3 Corsa is designed with that in mind. That's why it switches on and off automatically, as well as starting and stopping recording in the same way.
No Video Wave Effect with the Motorsports CMOS Global Shutter
At speed on the race track, chassis vibration, engine rumble, and wind buffeting cause vibrations that are a big problem for generic sports video cameras. The AiM SmartyCam 3 Corsa is designed and built specifically to handle that environment, so you'll never experience that seasick “wave effect” you get in videos recorded by generic cameras.
Ultra High-Quality Vide with Small File Sizes
Generic HD cameras are absorbed with having the highest pixel count. The result is that their video files are huge, eating up memory and processing power. AiM SmartyCam 3 Corsa videos, on the other hand, have the same high video quality as other HD cameras, but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.
AiM SmartyCam 3 Corsa Details:
Video format: H.264 compression; 1,920x1,080 pixels @ 60 fps
Display resolution: 128x128 px
Lens: low distortion, sapphire front glass
CMOS sensor: global shutter
Field-of-view: 67º or 84º
Internal battery: rechargeable lithium
External power: 9V to 15V
Supported Micro-SD card: up to 2 TB (not included)
Connectors: three Binder 712 female connectors; one USB-C
Operating temperatures: -10°C to 50°C (14ºF to 122ºF)
Auto power on: yes
Auto power off: yes
Auto start/stop: yes
Camera body: coated aluminum
Dimensions: 102.2 x 63 x 46.5 mm (4 x 2.5 x 1.8 in)
Weight (w/ battery): 280 g (0.62 lb)
Waterproof: IP65
AiM Sports
AiM Sports MXP 1.3 Strada Large Color TFT Dash
from $1,299.00
The Full-Size Color TFT Dash For Road Use
The AiM Sports MXP Strada is a 6" colour display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS09 Module.
Integrated shift light array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.
INPUT & OUTPUT FLEXIBILITY
AiM systems acquire data from the ECU of your vehicle.The list of available ECU drivers, constantly updated and upgraded, includes 1,000 + different ECUs, either Stock and Racing; they are sorted by manufacturer/vehicle model: for each ECU you find the proprietary communication protocols, including the standard OBDII ones.
From a hardware point of view, AiM systems manage the following data lines: CAN, RS232 and K-Line.
Analog/digital inputsAiM systems analog inputs are recorded up to 1,000 times per second each. You can connect and monitor all kinds of sensors, like:
Ratiometric potentiometers
Pressure sensors
Thermo-resistances
K-type thermocouples
... and many others, all your custom sensors included.
Freely configurable pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.
High contrast TFT display
A high contrast TFT display identifies MXP Strada at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.
Flexible alarms & custom street icons
MXP Strada, in its standard version, features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.
AiM systems also feature digital inputs:
Speed signals
From the ECU, from the GPS and from the wheel sensors.
RPM
From the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
Lap signal
Lap and split times are sampled by the GPS or via optical receiver/transmitter.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera,through pushbutton command or event management.
Digital output
MXP Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run externalsystems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certainevent happens.
RACE STUDIO 3
MXP 1.3 Strada is configured using your PC and Race Studio 3. You can create, customize, delete, import and export configurations with all channels, ECU drivers, Math Channels, Display Pages, Digital Output, Alarms, Shift Lights and all the expansions you need.
TECHNICAL SPECS:
9.3" x 5.0" x 1.0" Anodized Aluminum housing
Large 7.0" high-contrast color TFT display
800x480 pixel screen resolution
Weight 2.1 lbs (950g)
Waterproof IP65
KIT INCLUDES:
MXP 1.3 Strada digital dash
USB cable
14-pin standard wiring
23-pin connector + contacts
Installation CD with Race Studio 3 software
All sensors and modules sold separately.
AiM Sports
AiM Sports MXS 1.3 Strada Compact Color TFT Dash
$1,299.00
The Compact Color TFT Dash For Road Use
WIDE RANGE OF DATA & DISPLAYS
MXS 1.3 Strada is a beautifully-designed, feature-rich color digital dash display. It is basically the MXS 1.3 without the datalogging function. The MXS 1.3 Strada features a compact 5" High Contrast TFT color screen with great visual impact, configurable to show lap times, RPM, and a huge range of info coming from your Engine Control Unit, analog/digital inputs, pre-defined math channels and an optional GPS08 Module. Programmable multicolor shift and alarm LEDs round out an incredibly powerful package. There's even a version with "Street Icon" LEDs instead of the traditional "plain" LEDs!
The MXS 1.3 Strada displays your RPM, selected gear, speed, plus all the data you choose (water temp, oil pressure, trans temp, lap times and much more) in either pre-configured or user-customized pages. Swapping between pages is as easy as pushing buttons. Plus the MXS 1.3 Strada puts a huge amount of control over your car's systems at your fingertips.
INPUT & OUTPUT FLEXIBILITY
Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). Choose between OBDII and CAN/RS232 versions to suit your needs and level of customization. Both receive rich data from your ECU.
An OBDII input connection is an easy, plug-and-play option. A hardwired CAN input allows you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN output allows you to send messages to your car's existing CAN network, adding to the vehicle system control possibilities!
ALARMS & SHIFT LIGHTS
The ten multicolored RGB shift lights can be customized to define the max RPM for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them to turn on/off depending on analog or digital inputs, ECU values, expansion values, math channels or GPS information (with the optional GPS08). You choose conditions, colors, and select a solid alarm or flashing one (including flash frequency). It's also possible to configure an accompanying text message.
DIGITAL OUTPUT
The MXS 1.3 Strada features a low-side (switch to ground) digital output that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.
RACE STUDIO 3 INTEGRATION
MXS 1.3 Strada is configured using your PC and Race Studio 3. You can create, customize, delete, import and export configurations with all channels, ECU drivers, Math Channels, Display Pages, Digital Output, Alarms, Shift Lights and all the expansions you need.
TECHNICAL SPECS:
Compact 6.7" x 3.8" x 0.9" anodized aluminum housing
5" TFT high-contrast color display
Choose Standard or Street Icon LEDs
Screen resolution 800x480 pixels
Weight 1 lb. (480g)
Waterproof IP65
KIT INCLUDES:
MXS 1.3 Strada digital dash
USB cable
14-pin standard wiring
23-pin Connector + contacts
Installation CD with Race Studio 3 software
All sensors and modules sold separately.
AiM Sports
AiM Sports MXm Compact Dash Logger
from $1,299.00
AiM Sports MXm Compact Dash Logger
The new MXm from AiM is the compact dash logger with big features to put all the information you need right at your fingertips. It samples and shows key info like speed, lap times, RPM, gears, data from a nine-axis inertial platform, multiple math channels and much more. It is compact (5.4 x 3.5 x 1.3 in.), making it perfect for sports cars and bikes, and it's plug-and-play for ease-of-use. Complete but simple, MXm is the perfect device for both Pro and Amateur drivers.
WIDE RANGE OF DATA SOURCES
MXm samples data from your ECU, its internal GPS and inertial platform (accelerometer, gyro and magnetometer), four fully configurable analog inputs, three digital inputs (two speed + one coil RPM input), and predefined math channels. For the most demanding, the MXm can be connected to the Lambda controller and a SmartyCam HD to create a fully-integrated AiM information suite.
INTEGRATED SHIFT LIGHTS & ALARM
MXm features a five-LED shift light array. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your needs, and for each unique gear when required. MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions that turn them on/off, their color, and select a solid alarm or flashing one (and the flash frequency.)
DUAL POWER OUTLETS
MXm features two power outputs that can supply up to 15A each. These outputs can turn on/off depending on the value of analog or digital inputs to the MXm. They can automatically actuate external systems, such as switching on/off additional lights, activating/de-activating cooling fans or circulation pumps, etc.
SHARP LCD
MXm features a high contrast LCD display with an outstanding black to white ratio. The wide 268 x 128-pixel graphical LCD offers great flexibility in information display and alerts. The screen can be backlighted in one of the seven available colors, and an ambient light sensor keeps the backlight at optimum brightness.
CUSTOMIZABLE LAYOUT
You can organize the huge quantity of data captured by MXm into your own custom pages, choosing from a wide range of page styles, data to be shown, their end of scale and unit of measure. At the end of each session, you can review an on-screen summary of your best laps, max/min RPM, speed and temperatures.
WIFI CONNECTIVITY
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 connection. No need to move your PC close to the vehicle anymore, you can do it from your trailer up to 50 yards away.
SMARTYCAM COMPATIBILITY
SmartyCam on-board cameras, for professional recording of your races, with your real-time data overlayed on videos.
RACE STUDIO 3 DATA ANALYSIS
Race Studio 3 is the true engine of your MXm. With Race Studio 3, you can analyze all data recorded by MXm and downloaded to your PC. RS3 generates graphs, histograms, and tables to help you study your performance, providing an objective support to correct mistakes and improve your driving. You can even compare two laps watching the video recorded by SmartyCam HD cameras!
RS3 can create, modify, delete, import and export MXm configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights and expansions.
AiM Sports

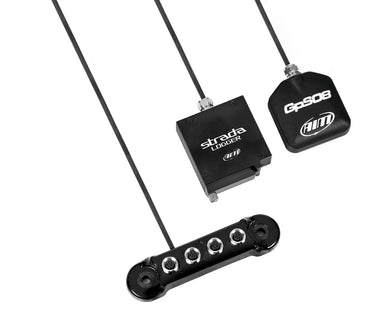

AiM Sports Strada Logger GPS Upgrade Kit
$1,165.00
Strada Logger, GPS08 Module, And Data Hub
Turn Any MX Strada Into a Full Data Logger
Receiving and reading data while you are driving is not enough anymore? Then it's time to step your game up with the brand new Strada Logger Kit! This kit includes the Strada Logger, Data Hub and GPS08 Module, the kit will turn any MX Strada into a full-working logger, able to collect data ready to be analized on Race Studio 3 to make you improve your performance, understand whether there are problems or not within your vehicle and much much more.
STRADA LOGGER
A small SD Card holder that can be connected via CAN bus to your MXG 1.2 Strada, MXP Strada, or MXS 1.2 Strada. (It can also be connected to your MXG 1.2, MXP, or MXS data logger for data back-up and super-fast downloads.)
GPS08 MODULE
More precise than most of the existing GPS systems, the GPS08 was designed to add to the GPS satellite's signal the Global Navigation Satellite (Glonass) system's signal. With an average of almost twenty satellites working in conjunction, GPS08 guarantees precision and a reliability simply not comparable to other GPS systems.
DATA HUB
A CAN connection multiplier that works as an interface between all AiM loggers and their peripheral equipments.
Just connect the Strada Kit to your AiM MX device and data will be saved on an SD card (not included) up to 32GB. as well as stored in the logger memory. No configuration is needed. The SD card can be removed and replaced even during pit stops, while the car engine is still ON, making it extremely fast to get data during endurance races or long tests when the time in the paddock is really limited.
When your session is over, plug your SD Card into your PC and download data into Race Studio 3. The Strada Logger has a front LED that shows its recording/firmware status.
Reliable and easy to install, the Strada Kit is just what you need to go from an above average driver to a real race one!
