Arai GP-7 Racing Helmet – Snell SA2020 / FIA 8859-2015

The Arai GP-7 Racing Helmet combines Arai's championship-inspired helmet technology, advanced impact protection, and exceptional comfort in a premium full-face helmet designed for demanding motorsport competition.

Certified to Snell SA2020 and FIA 8859-2015, the GP-7 features Arai's proprietary PBcLc (Peripherally Belted Complex Laminate) shell construction, an advanced multi-density EPS impact liner, improved ventilation, and a larger eyeport for enhanced visibility.

Developed using the same fundamental shell shape as Arai's Formula One-grade GP-7SRC, the GP-7 brings professional racing helmet engineering to road racing, GT competition, endurance racing, and performance driving.

With its intermediate oval fit, customizable FCS cheek pads, positive shield locking mechanism, and integrated M6 head-and-neck restraint mounting provisions, the Arai GP-7 delivers a combination of protection, driver comfort, and track-ready functionality.

Arai GP-7 SA2020 Helmet Key Features

• Snell SA2020 Certified: Meets the Snell SA2020 automotive racing helmet safety standard.
• FIA 8859-2015 Homologated: Certified for applicable FIA motorsport competition under the 8859-2015 standard.
• PBcLc Shell Construction: Arai's proprietary Peripherally Belted Complex Laminate construction balances shell strength, flexibility, and impact protection.
• GP-7SRC-Inspired Shell Shape: Developed using the fundamental shell geometry of Arai's Formula One racing helmet platform.
• Intermediate Oval Fit: Designed to accommodate drivers with an intermediate oval head shape.
• Multi-Density EPS Liner: Energy-absorbing liner construction designed to help manage impact forces.
• Enlarged Eyeport: Expanded peripheral visibility compared with earlier-generation Arai racing helmets.
• Positive Shield Latch: Secure shield locking system designed for reliable operation during competition.
• Updated Shield Pivot System: Low-profile hardware and a redesigned track slider arrangement.
• Advanced Ventilation: Three larger, closeable intake vents combined with four exhaust cowls.
• FCS Cheek Pads: Sculpted Facial Contour System cheek pads provide a secure, personalized fit.
• Replaceable Cheek Pads: Optional replacement thicknesses allow fit refinement.
• M6 FHR Mounting Provisions: Factory-installed threaded inserts support compatible HANS/FHR anchors.
• Eject System Ready: Pre-cut crown pad pocket accommodates the optional Eject helmet removal system.
• Hydration Compatible: Removable chin liner includes provisions for drink tube installation.
• Multiple Shield Options: Compatible replacement shields are available in clear, tinted, mirrored, and anti-fog configurations.
• Color Options: Gloss White and Black Frost.

PBcLc Shell Construction and Advanced Impact Protection

The Arai GP-7 uses Arai's proprietary PBcLc (Peripherally Belted Complex Laminate) shell construction, developed to provide excellent shell strength while maintaining the flexibility required for effective energy management.

The shell incorporates Arai's Peripherally Belted design philosophy, which emphasizes shell integrity around the critical eyeport area.

This advanced construction works together with the helmet's multi-density EPS liner to help manage impact energy during demanding racing conditions.

The GP-7 shares its fundamental shell shape with the GP-7SRC racing helmet platform, bringing technology developed through professional motorsport into a more accessible racing helmet.

Snell SA2020 and FIA 8859-2015 Racing Certifications

The Arai GP-7 is certified to Snell SA2020 and FIA 8859-2015, providing established motorsport helmet safety certification for qualifying racing applications.

These standards include testing requirements for automotive racing helmet impact performance and related protective characteristics.

The FIA 8859-2015 homologation label is applied to the helmet's interior liner.

Important: Racing organizations establish their own helmet certification acceptance rules. Because this is an earlier-generation SA2020 helmet, confirm that your specific racing organization continues to accept its certification before competition.

Expanded Eyeport for Improved Peripheral Vision

The Arai GP-7 features an enlarged eyeport designed to improve driver visibility compared with previous Arai racing helmet generations.

The wider opening supports improved peripheral awareness, allowing drivers to more easily monitor mirrors, nearby competitors, cockpit instruments, and corner workers.

The GP-7's eyeport geometry, shield design, and pivot hardware were developed using technology derived from Arai's professional racing helmet platforms.

Improved visibility is particularly valuable in GT racing, road racing, endurance competition, and other applications where driver awareness is essential.

Positive Shield Latch for Secure Visor Operation

The Arai GP-7 uses a positive shield latching mechanism designed to provide secure closure while maintaining convenient operation.

The latch is integrated into the shield system rather than added as a separate external component.

This design helps provide reliable visor retention while allowing normal shield opening and closing.

Drivers can operate the shield during preparation, pit stops, and racing activities according to Arai's operating instructions.

Updated Shield Pivot Hardware and Aerodynamic Design

The GP-7 incorporates updated shield pivot hardware with a redesigned one-piece track slider and low-profile mounting components.

The hardware uses a T20 Torx adjustment system that allows the shield pivot arrangement to sit lower on the helmet shell.

This design supports Arai's philosophy of creating smooth, rounded helmet surfaces intended to encourage impact forces to glance away from the shell.

The revised system also maintains the helmet's enlarged eyeport and convenient shield operation.

Advanced GP-7 Ventilation System

Arai developed the GP-7 ventilation system to improve airflow and comfort during demanding motorsport competition.

The helmet includes three larger, closeable intake vents with enlarged air passages designed to direct cooling airflow into the helmet.

Four enlarged exhaust cowls work with the intake system to help remove warm air from the interior.

A redesigned rear exhaust arrangement improves airflow management while supporting aerodynamic efficiency.

This ventilation system is especially beneficial during warm-weather track days, extended endurance sessions, and high-temperature racing conditions.

Facial Contour System Cheek Pads for a Secure Fit

The Arai GP-7 features sculpted Facial Contour System (FCS) cheek pads designed to provide a secure and comfortable fit around the driver's lower jaw.

The cheek pad shape helps stabilize the helmet while reducing unwanted movement during high-speed driving.

Its design also helps reduce wind and cockpit noise entering through the lower helmet opening.

Compatible replacement cheek pads are available in different thicknesses, allowing drivers to refine the fit without replacing the entire helmet.

This adjustable fit system is especially useful for drivers who need additional cheek support or prefer a more personalized interior configuration.

Intermediate Oval Helmet Fit

The Arai GP-7 is designed around an intermediate oval head shape, a common fit profile among automotive racing helmets.

A properly fitted helmet should provide consistent contact around the head without excessive pressure points or unwanted movement.

To select the appropriate size, measure the circumference of your head approximately one inch above your eyebrows and around the widest part at the back of your head.

Repeat the measurement several times and use Arai's official sizing recommendations when selecting your helmet.

Because every driver's head shape is different, a professional helmet fitting is recommended whenever possible.

Factory-Installed M6 HANS and FHR Mounting Provisions

The Arai GP-7 includes factory-installed M6 threaded inserts designed for compatible frontal head restraint mounting hardware.

These mounting provisions allow drivers to install approved HANS/FHR anchor posts without modifying the protective helmet shell.

The helmet features a flattened mounting surface around each threaded insert, allowing compatible anchor bases to rest flush against the shell.

Important: The M6 threaded inserts are factory installed. HANS/FHR anchor posts are separate components unless specifically included in the purchased configuration.

Always follow the anchor manufacturer's installation instructions and the requirements of your sanctioning organization.

Eject System Ready Crown Pad

The Arai GP-7 is designed to accommodate an optional helmet Eject system.

A pre-cut pocket beneath the crown pad allows installation of compatible Eject equipment.

The optional system is intended to assist trained safety personnel with controlled helmet removal following a racing incident.

Note: The Eject system is an optional accessory and is not included with the standard GP-7 helmet.

Integrated Hydration System Compatibility

The GP-7 features a removable center chin liner designed to simplify installation of compatible driver hydration equipment.

The chin liner provides four available drink tube routing locations, allowing racers to select a configuration suited to their cockpit layout and equipment.

Hydration compatibility is particularly valuable for endurance racing and extended track sessions in hot environments.

Compatible drink tubes, valves, and hydration equipment are sold separately.

Arai GP-7 Racing Helmet Technical Specifications

• Manufacturer: Arai Helmets
• Model: GP-7
• Helmet Type: Full-Face Auto Racing Helmet
• Snell Certification: SA2020
• FIA Homologation: FIA 8859-2015
• Shell Construction: PBcLc – Peripherally Belted Complex Laminate
• Impact Liner: Multi-Density EPS
• Helmet Shape: Intermediate Oval
• Exterior Colors: Gloss White and Black Frost
• Eyeport: Enlarged Racing Eyeport
• Shield Latch: Positive Locking Mechanism
• Shield Pivot: Low-Profile Track Slider System
• Pivot Hardware: T20 Torx Adjustable
• Upper Intake Vents: Three Closeable Intakes
• Exhaust Ventilation: Four Exhaust Cowls
• Cheek Pad System: Facial Contour System
• Replaceable Cheek Pads: Yes
• HANS/FHR Mounting: Factory-Installed M6 Threaded Inserts
• HANS/FHR Posts: Optional
• Eject System Compatible: Yes, Optional
• Hydration Compatible: Yes, Optional
• Drink Tube Routing: Four Chin Liner Locations
• Replacement Shields: Genuine Arai GP-7 Shield System
• Available Helmet Sizes: XS Through L, Subject to Inventory
• Primary Application: Road Racing, GT Racing, Endurance Racing, Club Racing and HPDE
• Quantity: Sold Individually

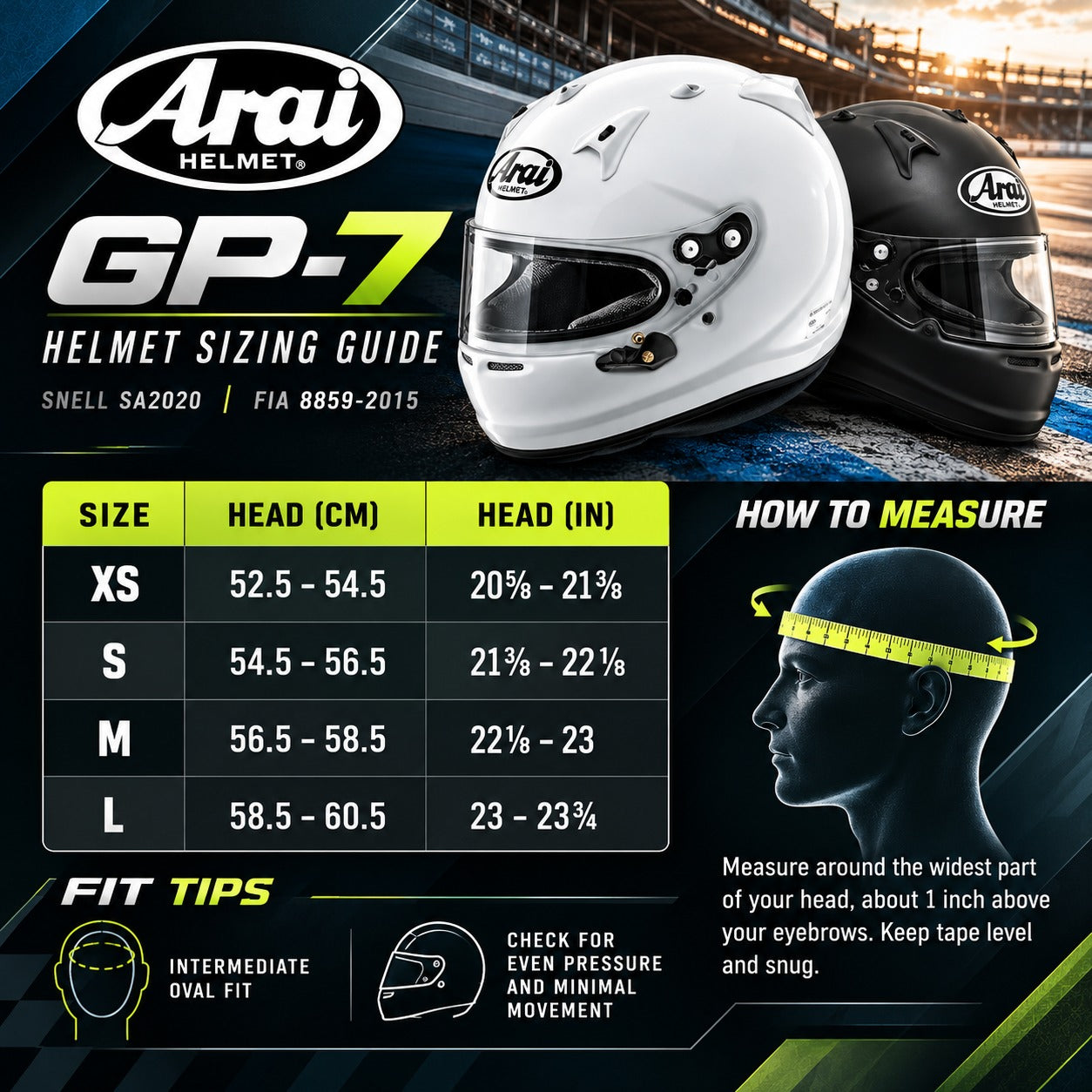

Arai GP-7 SA2020 Racing Helmet Sizing Chart

Arai GP-7 Helmet Care and Maintenance

Regular inspection and proper cleaning help preserve the performance, comfort, and appearance of your Arai GP-7 racing helmet.

Exterior Care: Clean the helmet shell using a soft microfiber cloth and Arai-approved helmet cleaning products. Avoid abrasive materials and aggressive solvents.

Shield Care: Clean the racing shield using appropriate visor-safe products. Inspect regularly for scratches, cracks, or other damage that could affect visibility.

Ventilation Maintenance: Keep intake and exhaust openings clear of dirt and debris. Inspect movable vent components before racing.

Interior Care: Follow Arai's instructions when removing or replacing compatible cheek padding and interior components.

Hardware Inspection: Check the shield locking mechanism, pivot screws, chin strap, and FHR mounting hardware before each event.

Storage: Store the helmet in a clean, cool, dry environment away from direct sunlight, excessive heat, and chemical exposure.

Arai GP-7 SA2020 Racing Helmet FAQs

Is the Arai GP-7 Snell SA2020 certified? Yes. The Arai GP-7 carries Snell SA2020 certification for qualifying automotive motorsport applications.

Is the Arai GP-7 FIA approved? Yes. The GP-7 is homologated to FIA 8859-2015. Always verify that this certification remains accepted by your racing organization.

What is the Arai GP-7 shell made from? The helmet uses Arai's proprietary PBcLc, or Peripherally Belted Complex Laminate, shell construction.

Is the Arai GP-7 a carbon fiber helmet? The standard GP-7 uses PBcLc composite construction rather than the specialized racing-carbon construction found in the GP-7SRC models.

What head shape does the Arai GP-7 fit? The GP-7 is designed for an intermediate oval head shape.

Does the Arai GP-7 have removable cheek pads? Yes. The helmet features replaceable FCS cheek pads, with optional thicknesses available for fit adjustment.

Does the GP-7 include HANS posts? The GP-7 includes factory-installed M6 threaded mounting inserts. Compatible HANS/FHR post anchors are optional and should be ordered separately unless included in a specific package.

Can I install an Eject system? Yes. The GP-7 features a pre-cut pocket beneath the crown pad for an optional compatible Eject helmet removal system.

Can I add a hydration system? Yes. The removable center chin liner provides four routing locations for compatible drinking tubes.

How is the GP-7 ventilation system designed? It features three enlarged, closeable upper intake vents and four exhaust cowls that help circulate airflow through the helmet.

Does the GP-7 have a shield locking system? Yes. The helmet incorporates Arai's positive shield latch designed to provide secure visor closure during racing.

What replacement shields fit the Arai GP-7? Genuine Arai GP-7 replacement shields are available in clear, tinted, mirrored, anti-fog and dual-pane configurations.

What colors are available? The GP-7 is available in Gloss White and Black Frost, subject to inventory.

What is the difference between the GP-7 and GP-7SRC? The standard GP-7 features PBcLc composite construction, while the GP-7SRC uses specialized racing-carbon materials and is designed for higher-level professional motorsport certification requirements.

Is the Arai GP-7 suitable for endurance racing? Yes. Its ventilation, enlarged eyeport, customizable cheek pads and optional hydration compatibility make it well suited to endurance racing when its certification meets event requirements.

Is the Arai GP-7 still legal for racing? The GP-7 carries Snell SA2020 and FIA 8859-2015 certifications. Eligibility depends on the specific racing series, event, and current helmet rules.

Professional Racing Comfort With the Arai GP-7

The Arai GP-7 SA2020 Racing Helmet combines proven PBcLc shell construction, advanced ventilation, a larger eyeport, and Arai's legendary attention to helmet fit and comfort.

With its positive shield latch, replaceable FCS cheek pads, integrated M6 FHR mounting provisions, and optional hydration and Eject system compatibility, the GP-7 remains a versatile helmet for motorsport enthusiasts and competitive drivers.

Shipping Notice: Signature confirmation is required upon delivery.

Additional Arai GP-7 shields in various tints and colors available here.
